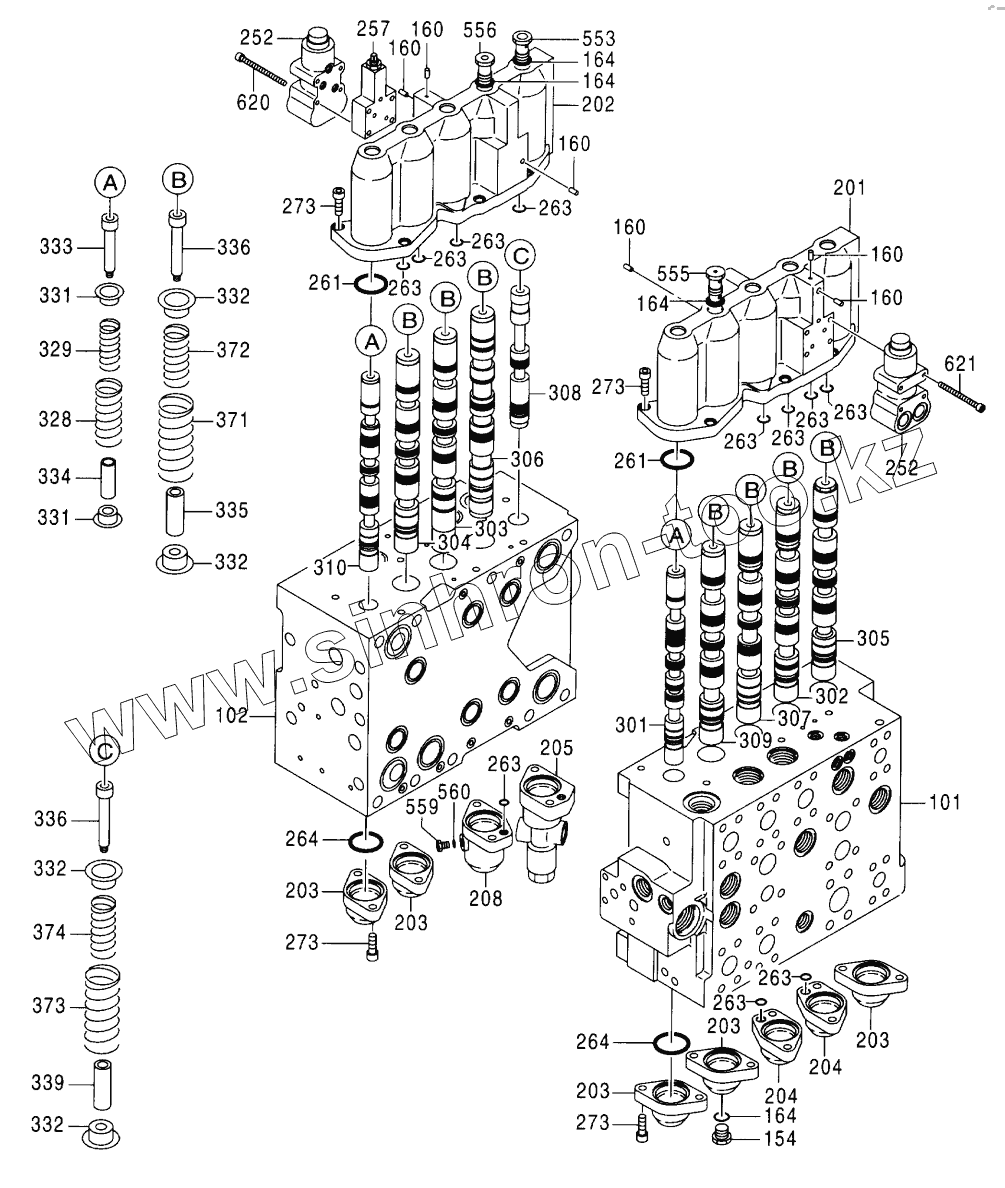

Каталог запасных частей к технике: Hitachi Компоненты ZX-330. VALVE, CONTROL (1/6)
4433970
101
102
154
160
160
160
160
160
160
164
164
164
164
201
202
203
203
203
203
203
204
204
205
208
252
252
257
261
261
263
263
263
263
263
263
263
263
263
263
263
264
264
273
273
273
273
301
302
303
304
305
306
307
308
309
310
328
329
331
331
332
332
332
332
333
334
335
336
336
339
371
372
373
374
553
555
556
559
560
620
621
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4433970 | 4433970 | VАLVЕ, СОNТRОL | |
| 101 | CASING | CASING | |
| 102 | CASING | CASING | |
| 154 | 0718901 | PLUG | |
| 160 | 0263019 | PLUG | |
| 164 | 4509180 | O-RING | |
| 201 | 0718902 | COVER | |
| 202 | 0718903 | COVER | |
| 203 | 0718904 | COVER | |
| 204 | 0718905 | COVER | |
| 205 | 0718906 | COVER | |
| 208 | 0718907 | COVER | |
| 252 | 0816301 | VALVE | |
| 257 | 0718909 | PLATE | |
| 261 | A811055 | O-RING | |
| 263 | 4506407 | O-RING | |
| 264 | A811040 | O-RING | |
| 273 | 0130520 | BOLT, SOCKET | |
| 301 | SPOOL | SPOOL | |
| 302 | SPOOL | SPOOL | |
| 303 | SPOOL | SPOOL | |
| 304 | SPOOL | SPOOL | |
| 305 | SPOOL | SPOOL | |
| 306 | SPOOL | SPOOL | |
| 307 | SPOOL | SPOOL | |
| 308 | SPOOL | SPOOL | |
| 309 | SPOOL | SPOOL | |
| 310 | SPOOL | SPOOL | |
| 328 | SPRING | SPRING | |
| 329 | SPRING | SPRING | |
| 331 | SEAT | SEAT | |
| 332 | SEAT | SEAT | |
| 333 | BOLT | BOLT | |
| 334 | STOPPER | STOPPER | |
| 335 | STOPPER | STOPPER | |
| 336 | BOLT | BOLT | |
| 339 | STOPPER | STOPPER | |
| 371 | SPRING | SPRING | |
| 372 | SPRING | SPRING | |
| 373 | SPRING | SPRING | |
| 374 | SPRING | SPRING | |
| 553 | 0718910 | PLUG | |
| 555 | 0718911 | PLUG | |
| 556 | 0718912 | PLUG | |
| 559 | 0718913 | PLUG | |
| 560 | 4154233 | O-RING | |
| 620 | 0384401 | BOLT, SOCKET | |
| 621 | M340650 | BOLT, SOCKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
