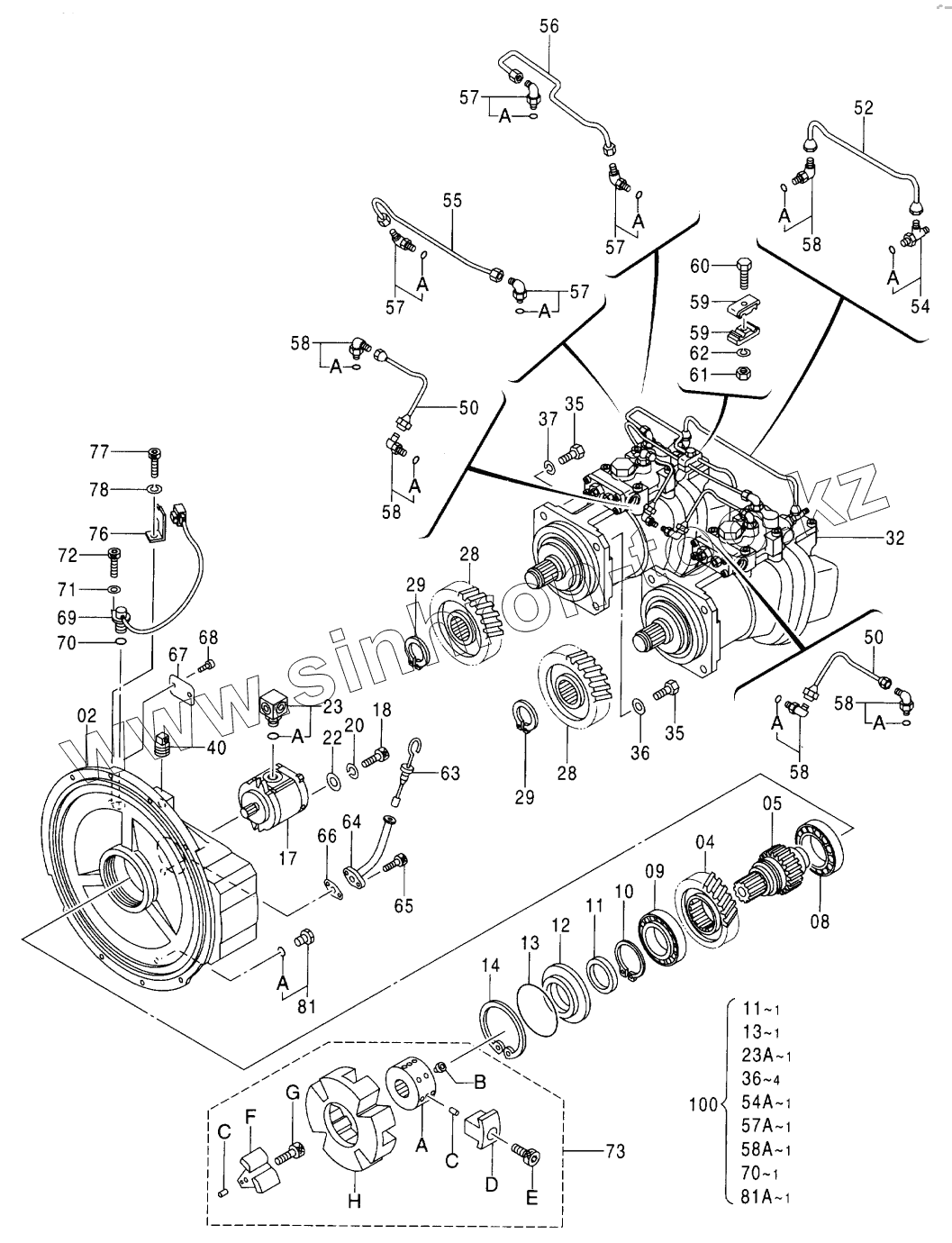

Каталог запасных частей к технике: Hitachi Компоненты ZX-330. PUMP, DEVICE
9195238
4216945
4613100
4183170
4101345
4101345
4216947
4216949
4216946
4216948
4216944
4509180
4509180
957366
957366
9195241
957366
957366
957366
957366
957366
957366
957366
957366
957366
957366
957366
4506418
4506418
2
4
5
8
9
10
11
11
12
13
13
14
17
18
20
22
23
28
28
29
29
32
32
35
35
36
36
37
40
50
50
52
54
55
56
57
57
57
57
58
58
58
58
58
59
59
60
60
61
62
63
64
65
66
67
68
69
70
70
71
72
73
73
76
77
78
81
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9195238 | 9195238 | РUМР DЕVIСЕ | |
| 4216945 | 4216945 | HUB | |
| 4613100 | 4613100 | HUB | |
| 4183170 | 4183170 | SCREW, SET | |
| 4101345 | 4101345 | PIN, SPRING | |
| 4216947 | 4216947 | INSERT | |
| 4216949 | 4216949 | BOLT, SOCKET | |
| 4216946 | 4216946 | INSERT | |
| 4216948 | 4216948 | BOLT, SOCKET | |
| 4216944 | 4216944 | COUPLING | |
| 4509180 | 4509180 | O-RING | |
| 957366 | 957366 | O-RING | |
| 9195241 | 9195241 | РUМР DЕVIСЕ | |
| 957366 | 957366 | O-RING | |
| 957366 | 957366 | O-RING | |
| 4506418 | 4506418 | O-RING | |
| 2 | 1028405 | CASING, GEAR | |
| 4 | 3089266 | GEAR, CENTER | |
| 5 | 3081085 | SHAFT, CENTER | |
| 8 | 4395453 | BRG., BALL | |
| 9 | 4395457 | BRG., BALL | |
| 10 | 4191219 | RING, RETAINING | |
| 11 | 4179833 | SEAL, OIL | |
| 12 | 3033593 | COVER, T.MISSION | |
| 13 | 4179834 | O-RING | |
| 14 | 991733 | RING, RETAINING | |
| 17 | 4181700 | PUMP, GEAR | |
| 18 | M341030 | BOLT, SOCKET | |
| 20 | 984054 | WASHER, SPRING | |
| 22 | 4114402 | WASHER | |
| 23 | 4191974 | ADAPTER | |
| 28 | 3035853 | GEAR, DRIVE | |
| 29 | 991345 | RING | |
| 32 | 9207291 | PUMP, UNIT | |
| 32 | 9195242 | PUMP, UNIT | |
| 35 | J901645 | BOLT | |
| 36 | 4126090 | WASHER, SEAL | |
| 37 | A590916 | WASHER, SPRING | |
| 40 | 4234782 | PLUG | |
| 50 | 4438889 | PIPE | |
| 52 | 4438888 | PIPE | |
| 54 | 4203485 | FITTING, PIPE | |
| 55 | 3089617 | PIPE | |
| 56 | 3089618 | PIPE | |
| 57 | 4118499 | FITTING, PIPE | |
| 58 | 4293950 | ELBOW, S | |
| 59 | 4179843 | CLAMP | |
| 60 | J900828 | BOLT | |
| 60 | J900830 | BOLT | |
| 61 | M500807 | NUT | |
| 62 | A590908 | WASHER, SPRING | |
| 63 | 4242263 | GAUGE, LEVEL | |
| 64 | 4242262 | PIPE, GUIDE | |
| 65 | M340816 | BOLT, SOCKET | |
| 66 | 9742779 | PACKING | |
| 67 | NAME-PLATE | NAME-PLATE | |
| 68 | M492564 | SCREW, DRIVE | |
| 69 | 4265372 | SENSOR, REVOL. | |
| 70 | 4306888 | O-RING | |
| 71 | A590106 | WASHER | |
| 72 | M340616 | BOLT, SOCKET | |
| 73 | 4479978 | COUPLING | |
| 73 | 4191663 | COUPLING ASSY | |
| 76 | 4252767 | BRACKET | |
| 77 | M340613 | BOLT, SOCKET | |
| 78 | 4169516 | WASHER, SPRING | |
| 81 | 4092534 | PLUG | |
| 100 | 4471487 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
