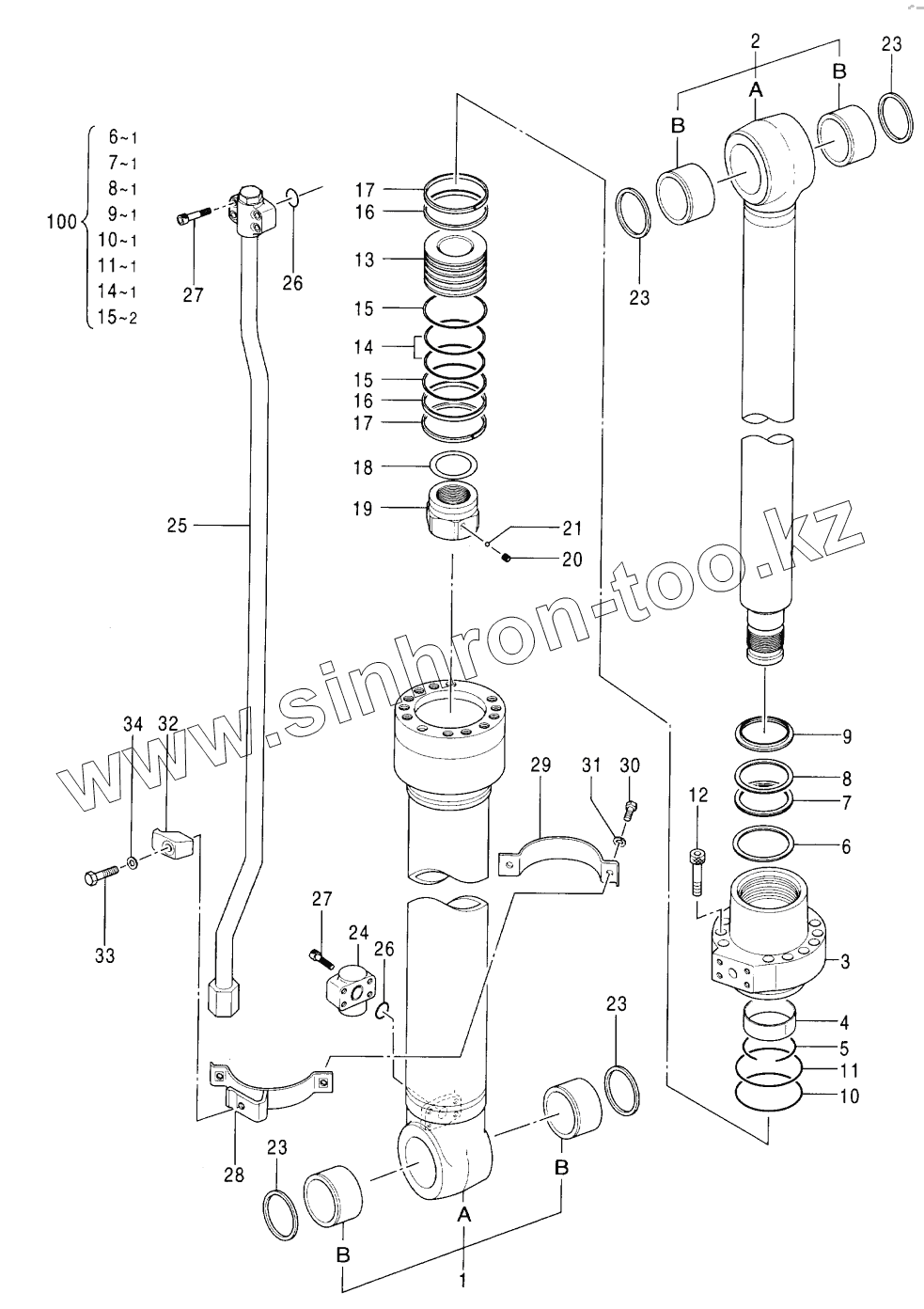

Каталог запасных частей к технике: Hitachi Компоненты ZX-330. CYL., POSITIONING
0926813
0926802
4381859
4381859
4611165
0926804
4381859
4381859
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
15
15
16
16
17
17
18
19
20
21
23
23
23
23
24
25
26
26
27
27
28
29
30
31
32
33
34
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0926813 | 0926813 | KID, BAND | |
| 0926802 | 0926802 | TUBE, CYL. | |
| 4381859 | 4381859 | BUSHING | |
| 4611165 | 4611165 | СYL, РОSIТIОNING | |
| 0926804 | 0926804 | ROD, PISTON | |
| 4381859 | 4381859 | BUSHING | |
| 1 | 0926801 | TUBU, CYL ASSY | |
| 2 | 0926803 | ROD, PISTON ASSY | |
| 3 | 0926805 | HEAD, CYL. | |
| 4 | 0373405 | BUSHING | |
| 5 | 0237205 | RING, RETAINING | |
| 6 | 0926806 | RING | |
| 7 | 0926807 | PACKING, U-RING | |
| 8 | 0926808 | RING, BACK-UP | |
| 9 | 0492216 | RING, WIPER | |
| 10 | A811160 | O-RING | |
| 11 | 4170546 | RING, BACKUP | |
| 12 | 0875605 | BOLT, SOCKET | |
| 13 | 0926809 | PISTON | |
| 14 | 4170547 | RING, SEAL ASS'Y | |
| 15 | 0875607 | RING, BACKUP | |
| 16 | 0926810 | RING, SLIDE | |
| 17 | 0259307 | RING, SLIDE | |
| 18 | 0352714 | SHIM | |
| 19 | 0926811 | NUT | |
| 20 | 0352715 | SCREW, SET | |
| 21 | 0104404 | BALL | |
| 23 | 0420110 | RING, WIPER | |
| 24 | 0906103 | JOINT | |
| 25 | 0926812 | PIPE | |
| 26 | 984614 | O-RING | |
| 27 | M341236 | BOLT, SOCKET | |
| 28 | 0875612 | BAND | |
| 29 | 0352721 | BAND | |
| 30 | J021035 | BOLT, SEMS | |
| 31 | A590910 | WASHER, SPRING | |
| 32 | 0309219 | CLAMP | |
| 33 | 0224115 | BOLT | |
| 34 | 0208516 | WASHER, SPRING | |
| 100 | 4624686 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
