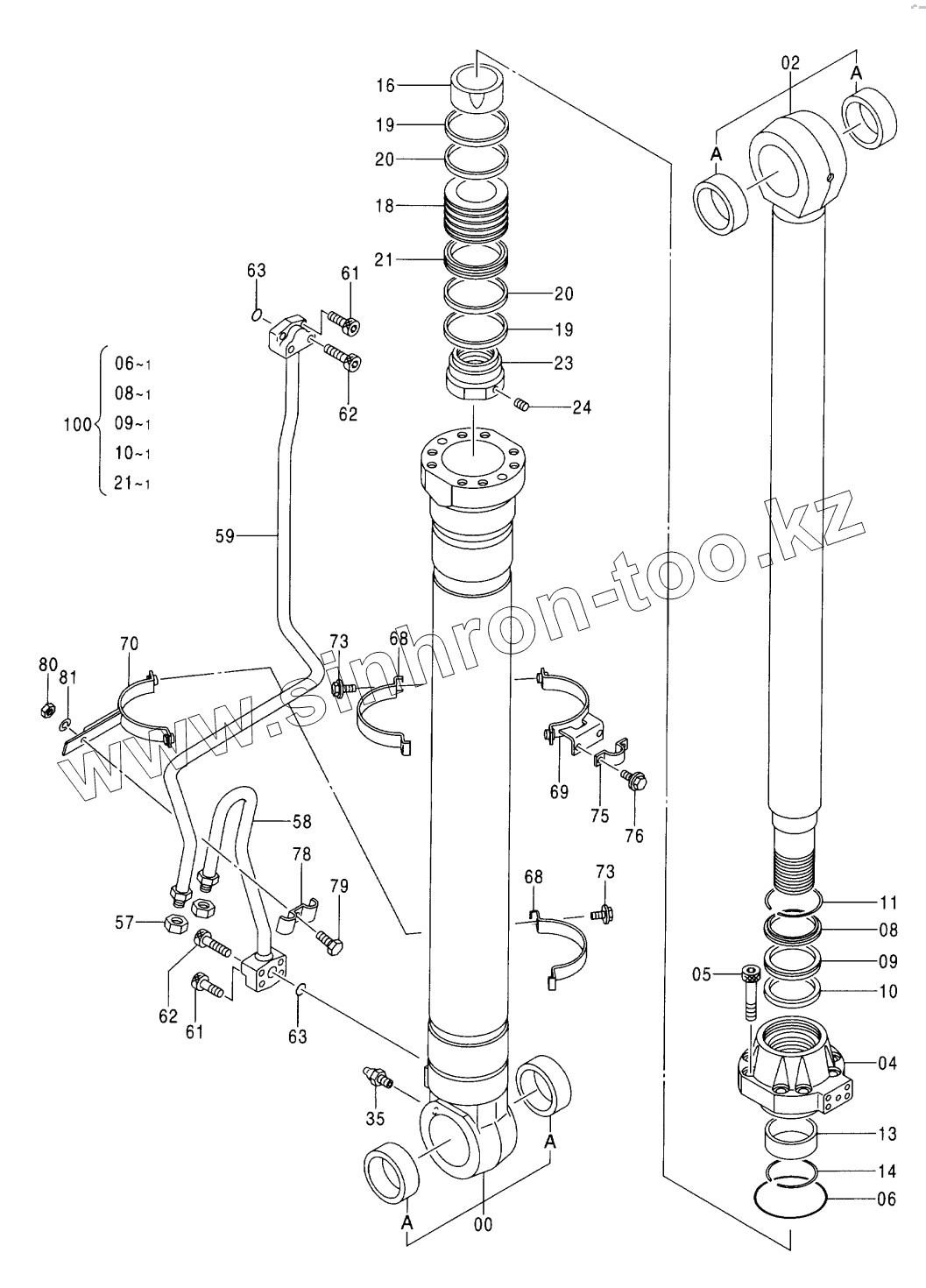

Каталог запасных частей к технике: Hitachi Компоненты ZX-330. CYL., BOOM (R)
9206325
9186600
4381855
4381855
4381855
4381855
9206362
9206359
9206356
7037745
2
4
5
6
6
8
8
9
9
10
10
11
13
14
16
18
19
19
20
20
21
21
23
24
35
57
58
59
61
61
62
62
63
63
68
68
69
70
73
73
73
75
76
76
78
79
80
81
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9206325 | 9206325 | CYL , BOOM | |
| 9186600 | 9186600 | СYL., ВООМ | |
| 4381855 | 4381855 | BUSHING | |
| 4381855 | 4381855 | BUSHING | |
| 9206362 | 9206362 | TUBE, CYL. | |
| 9206359 | 9206359 | CYL., PIPELESS | |
| 9206356 | 9206356 | CYL., PIPELESS | |
| 7037745 | 7037745 | TUBE, CYL. | |
| 2 | 7037753 | ROD, PISTON | |
| 4 | 1026691 | HEAD, CYL. | |
| 5 | M342480 | BOLT, SOCKET | |
| 6 | 4383091 | O-RING | |
| 8 | 4351498 | SEAL, DUST | |
| 9 | 4411660 | SEAL | |
| 10 | 4411655 | RING | |
| 11 | 4383089 | RING, RETAINING | |
| 13 | 4383093 | BUSHING | |
| 14 | 4268206 | RING, RETAINING | |
| 16 | 2041628 | RING, CUSHION | |
| 18 | 3080834 | PISTON | |
| 19 | 4171490 | RING, TEFLON | |
| 20 | 4194622 | RING, WEAR | |
| 21 | 4386916 | RING, SEAL | |
| 23 | 3039349 | NUT | |
| 24 | 4201806 | SCREW, SET | |
| 35 | J75481 | FITTING, GREASE | |
| 57 | 4260204 | CAP | |
| 58 | 8069108 | PIPE | |
| 59 | 8069109 | PIPE | |
| 61 | M341245 | BOLT, SOCKET | |
| 62 | M341260 | BOLT, SOCKET | |
| 63 | A811035 | O-RING | |
| 68 | 3080216 | CLAMP | |
| 69 | 8069891 | CLAMP | |
| 70 | 8079343 | CLAMP | |
| 73 | J011035 | BOLT, SEMS | |
| 73 | J271035 | BOLT, SEMS | |
| 75 | 4174241 | CLAMP, PIPE | |
| 76 | J011025 | BOLT, SEMS | |
| 76 | J271025 | BOLT, SEMS | |
| 78 | 4229234 | CLAMP, PIPE | |
| 79 | J901265 | BOLT | |
| 80 | J950012 | NUT | |
| 81 | A590912 | WASHER, SPRING | |
| 100 | 9180581 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
