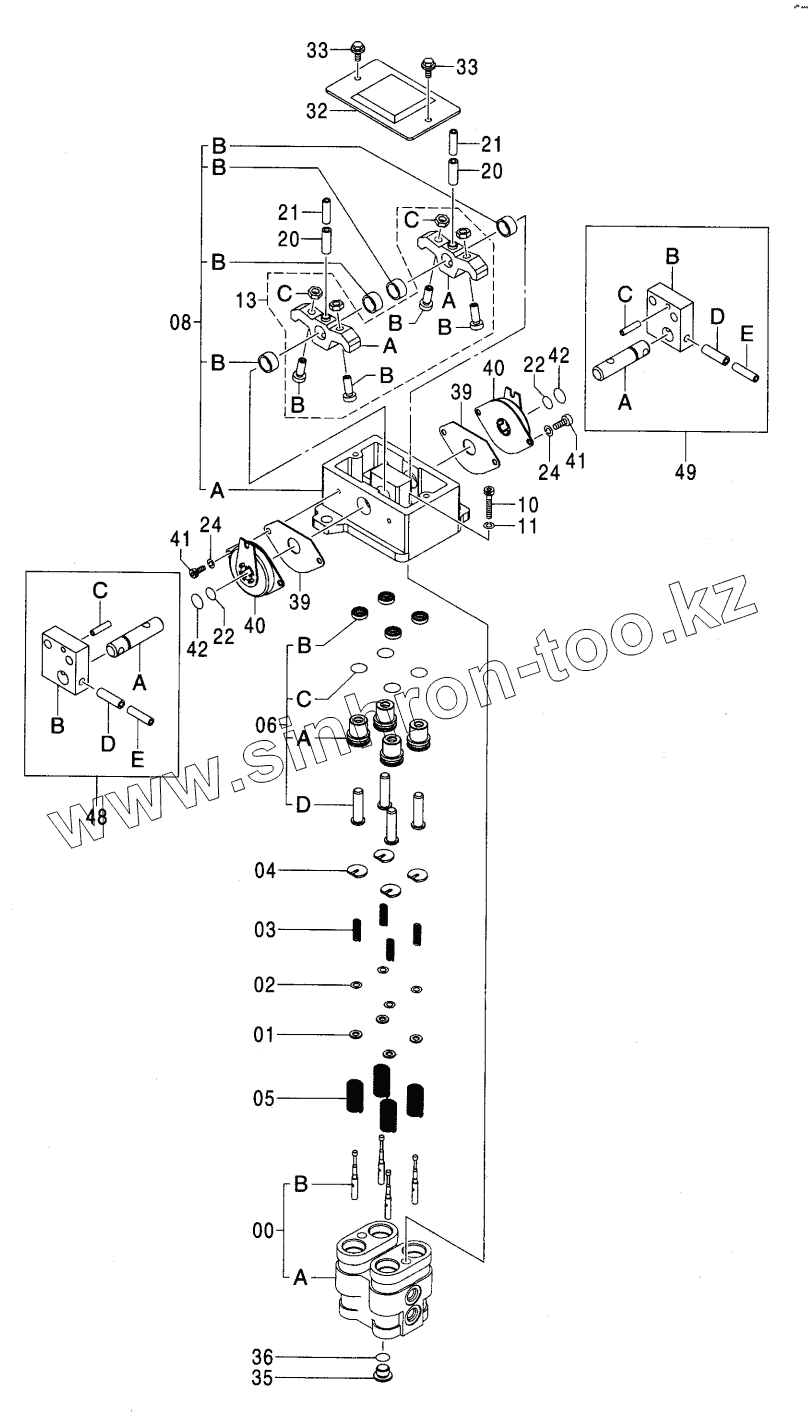

Каталог запасных частей к технике: Hitachi Компоненты ZX-270. VALVE, PILOT (TRAVEL)
4122395
4122395
4205317
4205318
4051262
3087987
4425305
4205317
4205318
4051262
3087987
4425305
9184276
4425290
4425290
4425290
4425290
3087264
3087264
4437433
4437433
4437433
4437433
2044332
3072517
9195307
8063718
CASING
SPOOL
3065877
4335047
4447050
984338
1
2
3
4
5
6
8
10
11
13
20
20
21
21
22
22
24
24
32
33
33
35
36
39
39
40
40
41
41
42
42
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4122395 | 4122395 | NUT | |
| 4205317 | 4205317 | PIN, SPRING | |
| 4205318 | 4205318 | PIN, SPRING | |
| 4051262 | 4051262 | PIN, SPR1NG | |
| 3087987 | 3087987 | BRACKET | |
| 4425305 | 4425305 | PIN | |
| 4205317 | 4205317 | PIN, SPRING | |
| 4205318 | 4205318 | PIN, SPRING | |
| 4051262 | 4051262 | PIN, SPR1NG | |
| 3087987 | 3087987 | BRACKET | |
| 4425305 | 4425305 | PIN | |
| 9184276 | 9184276 | VALVE, PILOT | |
| 4425290 | 4425290 | SCREW, ADJUSTING | |
| 3087264 | 3087264 | CAM | |
| 4437433 | 4437433 | BUSHING | |
| 2044332 | 2044332 | HOLDER | |
| 3072517 | 3072517 | PUSHER | |
| 9195307 | 9195307 | VALVE, PILOT | |
| 8063718 | 8063718 | CASING ASS'Y | |
| CASING | CASING | CASING | |
| SPOOL | SPOOL | SPOOL | |
| 3065877 | 3065877 | BUSHING | |
| 4335047 | 4335047 | SEAL, OIL | |
| 4447050 | 4447050 | SEAL, OIL | |
| 984338 | 984338 | O-RING | |
| 1 | 4319299 | SPACER | |
| 2 | 4203411 | SHIM | |
| 3 | 4368629 | SPRING, COMPRES. | |
| 4 | 4364970 | GUIDE, SPRING | |
| 5 | 4368630 | SPRING, COMPRES. | |
| 6 | 9151724 | PUSHER, ASSY | |
| 8 | 9184275 | HOLDER | |
| 10 | J781030 | BOLT, SOCKET | |
| 11 | A590910 | WASHER, SPRING | |
| 13 | 9199146 | CAM ASS'Y | |
| 20 | 4027427 | PIN,SPRING | |
| 21 | 4213419 | PIN, SPRING | |
| 22 | 4185600 | O-RING | |
| 24 | A590906 | WASHER, SPRING | |
| 32 | 8077903 | COVER | |
| 33 | J020614 | BOLT, SEMS | |
| 35 | 4208977 | PLUG | |
| 36 | 964255 | O-RING | |
| 39 | 4437432 | SEAT, RUBBER | |
| 40 | 4428902 | DAMPER | |
| 41 | J780612 | BOLT, SOCKET | |
| 42 | 4447067 | O-RING | |
| 48 | 9207567 | PIN ASS'Y | |
| 49 | 9207568 | PIN ASS'Y |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
