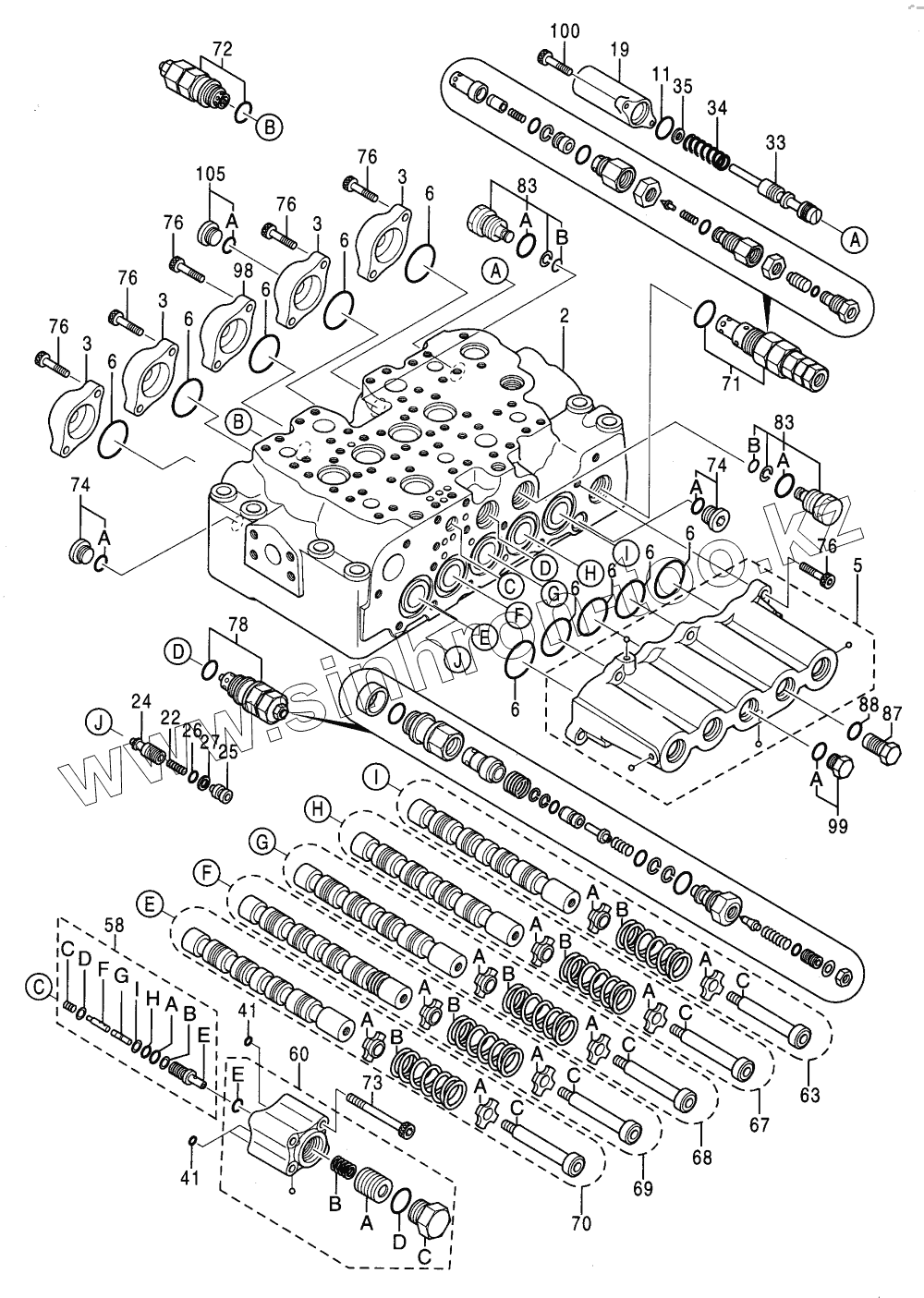

Каталог запасных частей к технике: Hitachi Компоненты ZX-270. VALVE, CONTROL (3/5)
0309705
0791813
0791814
0111803
0111804
4506320
0306003
0306003
4437242
0791815
0306003
0306003
0309705
0791815
0306003
0306003
0309705
0791815
0306003
0306003
0309705
0791815
0306003
0306003
0309705
0791815
4509180
U12547U
U12547U
4154207
4154207
4509180
4509180
4509180
971823
4140436
SPOOL
POPPET
SLEEVE
0791809
0332924
0791808
2
3
3
3
3
5
6
6
6
6
6
6
6
6
6
6
11
19
22
24
25
26
27
33
34
34
35
41
41
58
60
63
67
68
69
70
71
72
73
74
74
76
76
76
76
76
76
78
83
83
87
88
98
99
100
105
581
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0309705 | 0309705 | SPRING | |
| 0791813 | 0791813 | PISTON | |
| 0791814 | 0791814 | SPRING | |
| 0111803 | 0111803 | PLUG | |
| 0111804 | 0111804 | O-RING | |
| 4506320 | 4506320 | O-RING | |
| 0306003 | 0306003 | SEAT | |
| 4437242 | 4437242 | VАLVЕ, СОNТRОL | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 4509180 | 4509180 | O-RING | |
| U12547U | U12547U | O-RING | |
| 4154207 | 4154207 | O-RING | |
| 4509180 | 4509180 | O-RING | |
| 4509180 | 4509180 | O-RING | |
| 971823 | 971823 | O-RING | |
| 4140436 | 4140436 | O-RING | |
| SPOOL | SPOOL | SPOOL | |
| POPPET | POPPET | POPPET | |
| SLEEVE | SLEEVE | SLEEVE | |
| 0791809 | 0791809 | SEAT | |
| 0332924 | 0332924 | RING | |
| 0791808 | 0791808 | SPRING | |
| 2 | HOUSING | HOUSING | |
| 3 | 0791801 | CAP | |
| 5 | 4454202 | CAP ASSY | |
| 6 | A811045 | O-RING | |
| 11 | 4226446 | O-RING | |
| 19 | 0791803 | CAP | |
| 22 | 668007 | SPRING | |
| 24 | 0791804 | POPPET | |
| 25 | 0791805 | SPACER | |
| 26 | 4140436 | O-RING | |
| 27 | 4105167 | RING, BACK-UP | |
| 33 | SPOOL | SPOOL | |
| 34 | 0791806 | SPRING | |
| 34 | 0791817 | SPRING | |
| 35 | 0791807 | WASHER | |
| 41 | 4506406 | O-RING | |
| 58 | 0791818 | VALVE ASSY | |
| 60 | 4454198 | BODY ASSY | |
| 63 | SPOOL | SPOOL | |
| 67 | SPOOL | SPOOL | |
| 68 | SPOOL | SPOOL | |
| 69 | SPOOL | SPOOL | |
| 70 | SPOOL | SPOOL | |
| 71 | 4386637 | VALVE, RELIEF | |
| 72 | 4372039 | VALVE | |
| 73 | 0791622 | BOLT | |
| 74 | 0695007 | PLUG ASSY | |
| 76 | 0459541 | BOLT | |
| 78 | 4358914 | VALVE | |
| 83 | 0667927 | PLUG ASSY | |
| 87 | 0667931 | PLUG | |
| 88 | 4509180 | O-RING | |
| 98 | 0791816 | CAP | |
| 99 | 0309732 | PLUG ASSY | |
| 100 | 0455002 | BOLT | |
| 105 | 0218607 | PLUG ASSY | |
| 581 | 4105057 | RING, BACK-UP |
