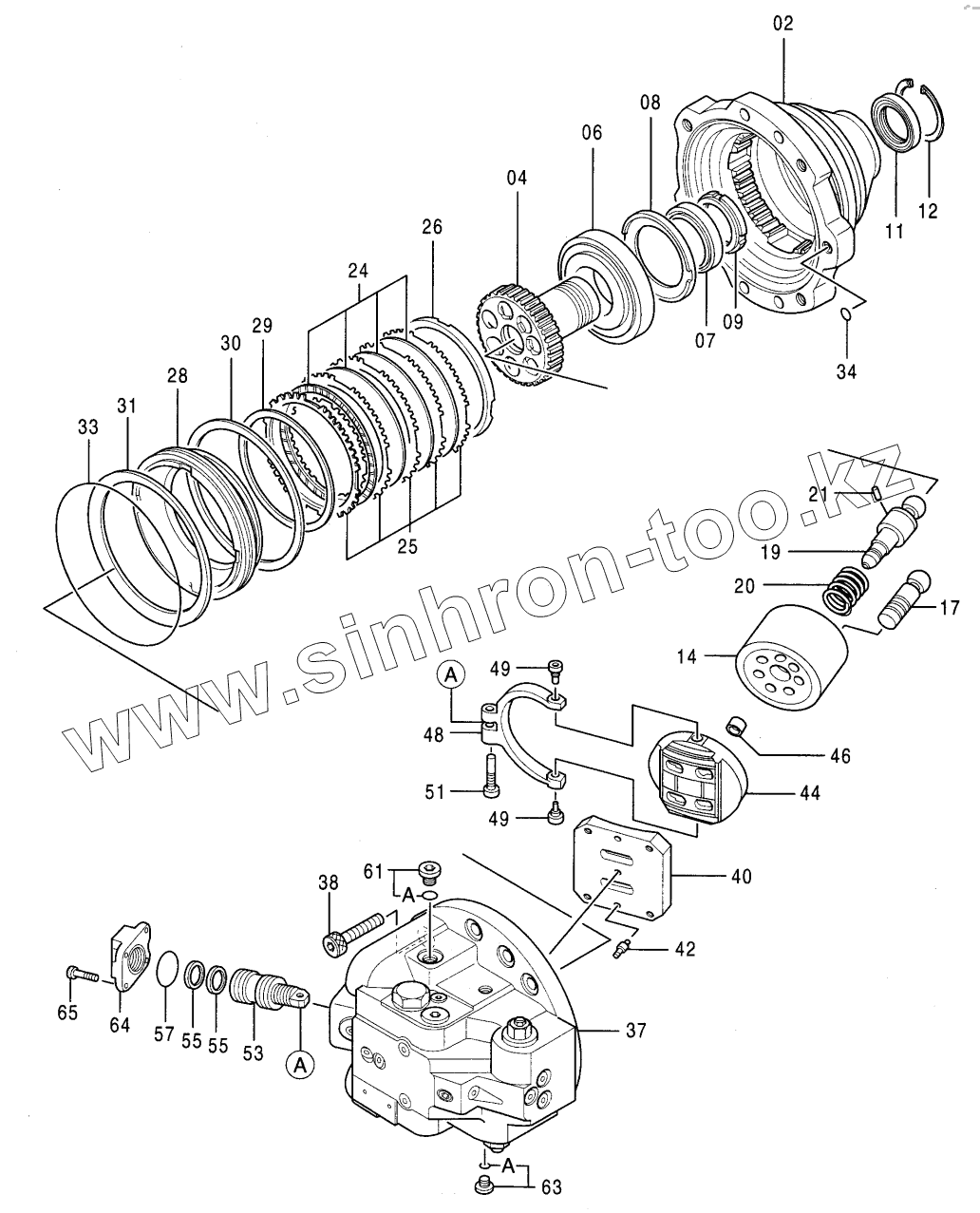

Каталог запасных частей к технике: Hitachi Компоненты ZX-270. MOTOR, OIL (TRAVEL)
9156041
4506418
4506408
9150848
2
4
6
7
8
9
11
12
14
17
19
20
21
24
25
26
28
29
30
31
33
34
37
37
38
40
42
44
46
48
49
49
51
53
55
55
57
61
63
64
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9156041 | 9156041 | МОТОR, ОIL | |
| 4506418 | 4506418 | O-RING | |
| 4506408 | 4506408 | O-RING | |
| 9150848 | 9150848 | МОТОR, ОIL | |
| 2 | 1019564 | CASING, MOTOR | |
| 4 | 2031327 | DISC, DRIVING | |
| 6 | 4199108 | BRG., ROL. | |
| 7 | 4199072 | BRG., ROL. | |
| 8 | 4227550 | SPACER | |
| 9 | 4191665 | NUT, BRG. | |
| 11 | 4191666 | SEAL, OIL | |
| 12 | 4038529 | RING, RETAINING | |
| 14 | 2022744 | ROTOR | |
| 17 | 8051275 | PISTON | |
| 19 | 3078298 | SHAFT, CENTER | |
| 20 | 4194362 | SPRING, COMPRES. | |
| 21 | 4198956 | PIN | |
| 24 | 3036457 | PLATE, FRICTION | |
| 25 | 3036456 | PLATE | |
| 26 | 4193996 | SPACER | |
| 28 | 3078190 | PISTON | |
| 29 | 4252401 | O-RING | |
| 30 | 4269474 | D-RING | |
| 31 | 3054505 | SPRING, DISC | |
| 33 | 4269473 | О-RING | |
| 34 | 4506415 | O-RING | |
| 37 | 9158391 | VALVE, BRAKE | |
| 37 | 9157762 | VALVE, BRAKE | |
| 38 | M341850 | BOLT, SOCKET | |
| 40 | 2035236 | PLATE | |
| 42 | 4364104 | PIN, KNOCK | |
| 44 | 2033787 | VALVE | |
| 46 | 4234628 | BUSHING | |
| 48 | 2040803 | LINK | |
| 49 | 4255238 | PLUG | |
| 51 | 4262561 | BOLT, REAMER | |
| 53 | 9098902 | PISTON, SERVO | |
| 55 | 4260308 | RING, PISTON | |
| 57 | 4265579 | O-RING | |
| 61 | 9134112 | PLUG | |
| 63 | 9134109 | PLUG | |
| 64 | 4364922 | COVER | |
| 65 | M341225 | BOLT, SOCKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
