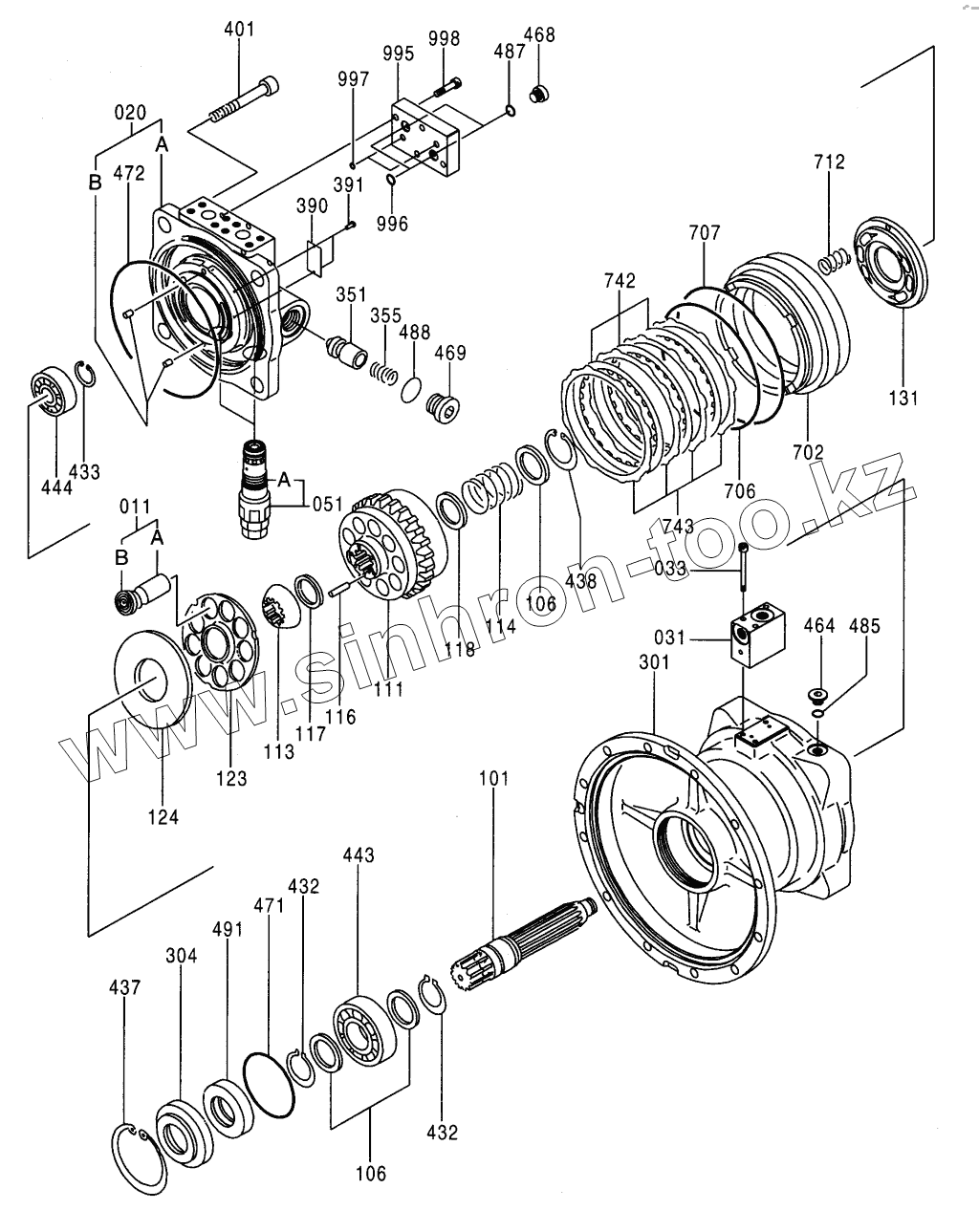

Каталог запасных частей к технике: Hitachi Компоненты ZX-270. MOTOR, OIL (SWING)
4439418
PISTON
SHOE
A811030
CASING
PIN
11
20
31
33
51
101
106
106
111
113
114
116
117
118
123
124
131
301
304
351
355
390
391
401
432
432
433
437
438
443
444
464
468
469
471
472
485
487
488
491
702
706
707
712
742
743
995
996
997
998
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4439418 | 4439418 | МОТОR, ОIL | |
| PISTON | PISTON | PISTON | |
| SHOE | SHOE | SHOE | |
| A811030 | A811030 | O-RING | |
| CASING | CASING | CASING | |
| PIN | PIN | PIN | |
| 11 | 0365401 | PISTON SUB | |
| 20 | 0803001 | CASING | |
| 31 | 0803002 | VALVE | |
| 33 | 0384401 | BOLT, SOCKET | |
| 51 | 0692704 | VALVE, RELIEF | |
| 101 | 0803003 | SHAFT | |
| 106 | 0365405 | SPACER | |
| 111 | 0803004 | CYLINDER | |
| 113 | 0365407 | BUSHING | |
| 114 | 0365408 | SPRING | |
| 116 | 0365409 | ROD, PUSH | |
| 117 | 0365410 | SPACER | |
| 118 | 0365411 | SPACER | |
| 123 | 0803005 | RETAINER | |
| 124 | 0365413 | PLATE | |
| 131 | 0719603 | PLATE, VALVE | |
| 301 | 0803006 | CASING | |
| 304 | 0365416 | COVER | |
| 351 | 0803007 | PLUNGER | |
| 355 | 0803008 | SPRING | |
| 390 | NAME-PLATE | NAME-PLATE | |
| 391 | 0625509 | PIN | |
| 401 | 0365417 | BOLT, SOCKET | |
| 432 | 991345 | RING | |
| 433 | 0747305 | RING, RETAINING | |
| 437 | 973069 | RING, RETAINING | |
| 438 | 931346 | RING, RETAINING | |
| 443 | 0353316 | BRG., ROL | |
| 444 | 0747306 | BRG., NEEDLE | |
| 464 | 0629404 | PLUG | |
| 468 | 0629404 | PLUG | |
| 469 | 0803009 | PLUG | |
| 471 | A811110 | O-RING | |
| 472 | 0692709 | O-RING | |
| 485 | 957366 | O-RING | |
| 487 | 957366 | O-RING | |
| 488 | 984614 | O-RING | |
| 491 | 0251914 | SEAL, OIL | |
| 702 | 803010 | PISTON | |
| 706 | 0365326 | O-RING | |
| 707 | 0365427 | O-RING | |
| 712 | 0365331 | SPRING, BRAKE | |
| 742 | 0365428 | PLATE | |
| 743 | 0365429 | PLATE | |
| 995 | 0692710 | PLATE | |
| 996 | 4506412 | O-RING | |
| 997 | 4506406 | O-RING | |
| 998 | 0210718 | BOLT, SOCKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
