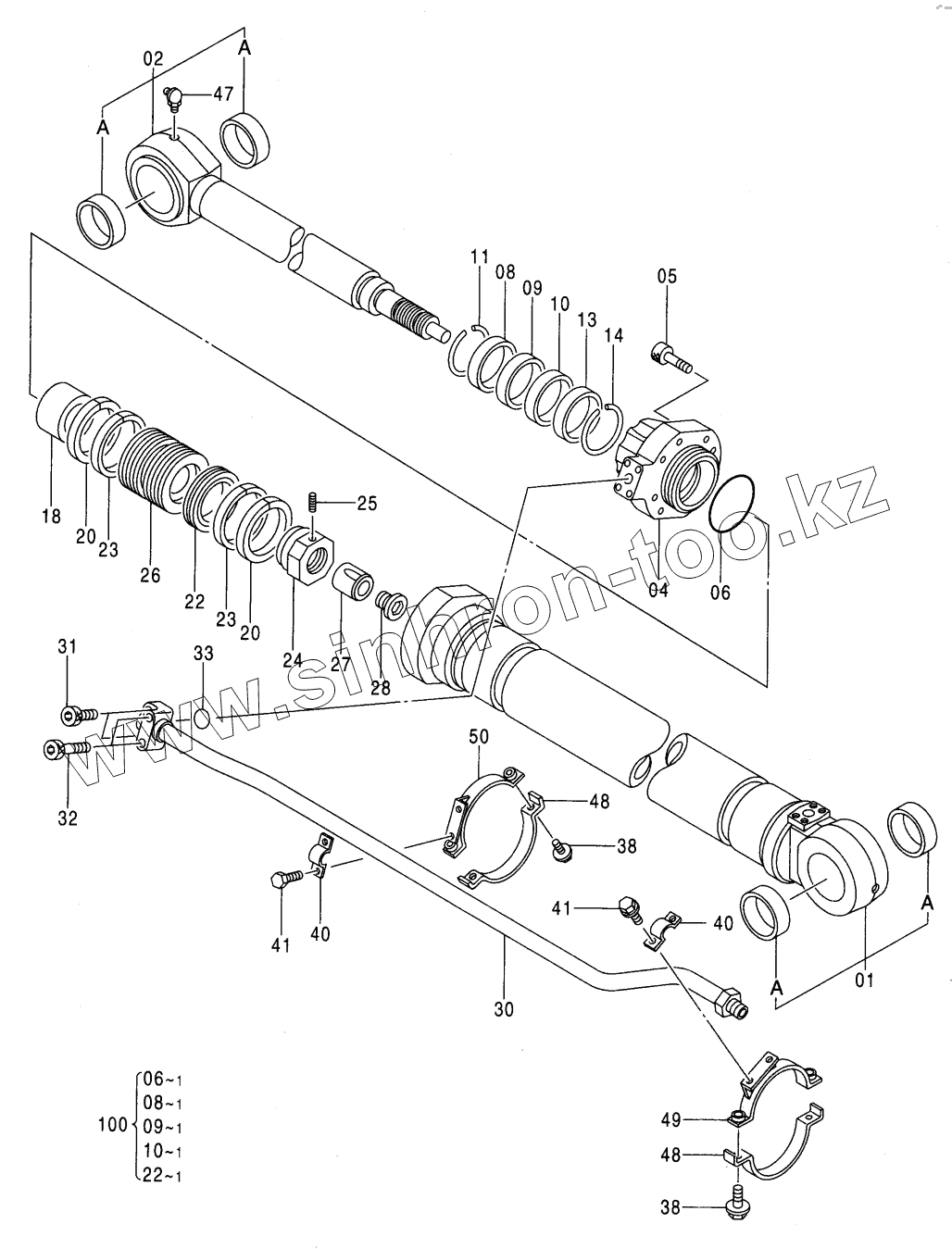

Каталог запасных частей к технике: Hitachi Компоненты ZX-270. CYL., ARM (MONO BOOM)
9206323
9186598
4397790
4397790
4397790
4397790
1
1
2
4
5
6
6
8
8
9
9
10
10
11
13
14
18
20
20
22
22
23
23
24
25
26
27
28
30
31
32
33
38
38
38
40
40
41
41
41
47
48
48
49
50
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9206323 | 9206323 | CYL., ARM | |
| 9186598 | 9186598 | СYL, АRМ | |
| 4397790 | 4397790 | BUSHING | |
| 4397790 | 4397790 | BUSHING | |
| 1 | 9206353 | TUBE, CYL | |
| 1 | 7039259 | TUBE, CYL | |
| 2 | 7037662 | ROD, PISTON | |
| 4 | 1027949 | HEAD, CYL. | |
| 5 | M342480 | BOLT, SOCKET | |
| 6 | 4380144 | O-RING | |
| 8 | 4348207 | SEAL, DUST | |
| 9 | 4375666 | SEAL | |
| 10 | 4375663 | RING | |
| 11 | 4369509 | RING, RETAINING | |
| 13 | 4272963 | BUSHING | |
| 14 | 4267139 | RING, RETAINING | |
| 18 | 3088602 | RING, CUSHION | |
| 20 | 4185247 | RING, TEFLON | |
| 22 | 4375664 | RING, SEAL | |
| 23 | 4194621 | RING, WEAR | |
| 24 | 3063060 | NUT | |
| 25 | 4201806 | SCREW, SET | |
| 26 | 3052364 | PISTON | |
| 27 | 3083091 | RING, CUSHION | |
| 28 | 4387203 | PLUG | |
| 30 | 8053093 | PIPE | |
| 31 | M341245 | BOLT, SOCKET | |
| 32 | M341260 | BOLT, SOCKET | |
| 33 | A811035 | O-RING | |
| 38 | J011035 | BOLT, SEMS | |
| 38 | J271035 | BOLT, SEMS | |
| 40 | 4174241 | CLAMP, PIPE | |
| 41 | J011025 | BOLT, SEMS | |
| 41 | J271025 | BOLT, SEMS | |
| 47 | J75581 | FITTING, GREASE | |
| 48 | 3090722 | CLAMP | |
| 49 | 8082044 | CLAMP | |
| 50 | 8082069 | CLAMP | |
| 100 | 9180579 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
