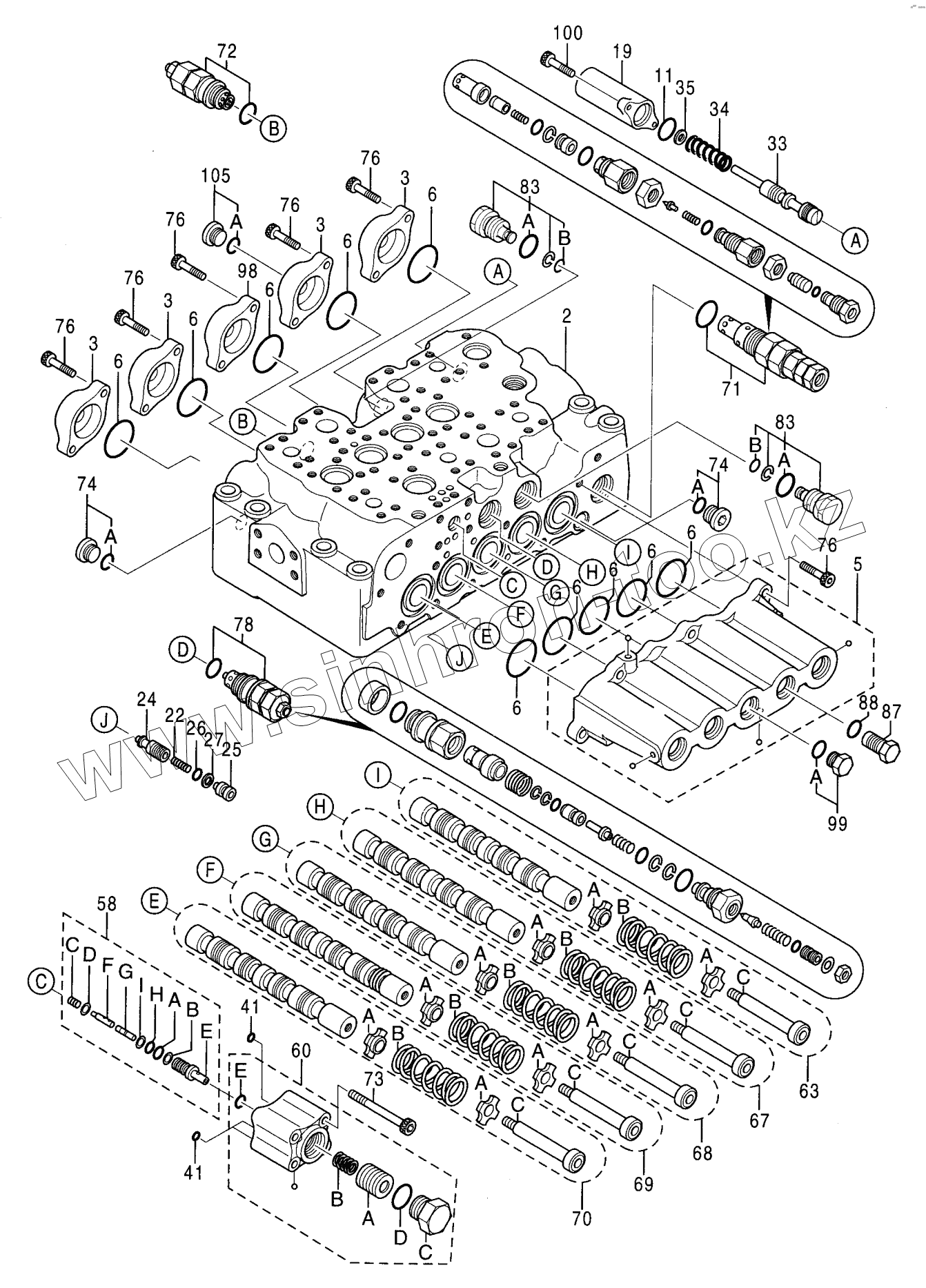

Каталог запасных частей к технике: Hitachi Компоненты ZX-230. VALVE, CONTROL (3/5)
0309705
0791813
0791814
0111803
0111804
4506320
0306003
0306003
4436897
0791815
0306003
0306003
0309705
0791815
0306003
0306003
0309705
0791815
0306003
0306003
0309705
0791815
0306003
0306003
0309705
0791815
4509180
U12547U
U12547U
4154207
4154207
4509180
4509180
4509180
0332924
4105057
971823
0791808
0791809
SLEEVE
POPPET
SPOOL
4140436
2
3
3
3
3
5
6
6
6
6
6
6
6
6
6
6
11
19
22
24
25
26
27
33
34
34
35
41
41
58
60
63
67
68
69
70
71
72
73
74
74
76
76
76
76
76
76
78
83
83
87
88
98
99
100
105
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0309705 | 0309705 | SPRING | |
| 0791813 | 0791813 | PISTON | |
| 0791814 | 0791814 | SPRING | |
| 0111803 | 0111803 | PLUG | |
| 0111804 | 0111804 | O-RING | |
| 4506320 | 4506320 | O-RING | |
| 0306003 | 0306003 | SEAT | |
| 4436897 | 4436897 | VALVE, CONTROL | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 0306003 | 0306003 | SEAT | |
| 0309705 | 0309705 | SPRING | |
| 0791815 | 0791815 | END | |
| 4509180 | 4509180 | O-RING | |
| U12547U | U12547U | O-RING | |
| 4154207 | 4154207 | O-RING | |
| 4509180 | 4509180 | O-RING | |
| 4509180 | 4509180 | O-RING | |
| 0332924 | 0332924 | RING | |
| 4105057 | 4105057 | RING, BACK-UP | |
| 971823 | 971823 | O-RING | |
| 0791808 | 0791808 | SPRING | |
| 0791809 | 0791809 | SEAT | |
| SLEEVE | SLEEVE | SLEEVE | |
| POPPET | POPPET | POPPET | |
| SPOOL | SPOOL | SPOOL | |
| 4140436 | 4140436 | O-RING | |
| 2 | HOUSING | HOUSING | |
| 3 | 0791801 | CAP | |
| 5 | 4454202 | CAP ASSY | |
| 6 | А811045 | O-RING | |
| 11 | 4226446 | O-RING | |
| 19 | 0791803 | CAP | |
| 22 | 0668007 | SPRING | |
| 24 | 0791804 | POPPET | |
| 25 | 0791805 | SPACER | |
| 26 | 4140436 | O-RING | |
| 27 | 4105167 | RING, BACK-UP | |
| 33 | SPOOL | SPOOL | |
| 34 | 0791806 | SPRING | |
| 34 | 0791817 | SPRING | |
| 35 | 0791807 | WASHER | |
| 41 | 4506406 | O-RING | |
| 58 | 0791818 | VALVE ASSY | |
| 60 | 4454198 | BODY ASSY | |
| 63 | SPOOL | SPOOL | |
| 67 | SPOOL | SPOOL | |
| 68 | SPOOL | SPOOL | |
| 69 | SPOOL | SPOOL | |
| 70 | SPOOL | SPOOL | |
| 71 | 4386637 | VALVE, RELIEF | |
| 72 | 4372039 | VALVE | |
| 73 | 0791622 | BOLT | |
| 74 | 0695007 | PLUG ASSY | |
| 76 | 0459541 | BOLT | |
| 78 | 4358914 | VALVE | |
| 83 | 0667927 | PLUG ASSY | |
| 87 | 0667931 | PLUG | |
| 88 | 4509180 | O-RING | |
| 98 | 0791816 | CAP | |
| 99 | 0309732 | PLUG ASSY | |
| 100 | 0455002 | BOLT | |
| 105 | 0218607 | PLUG ASSY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
