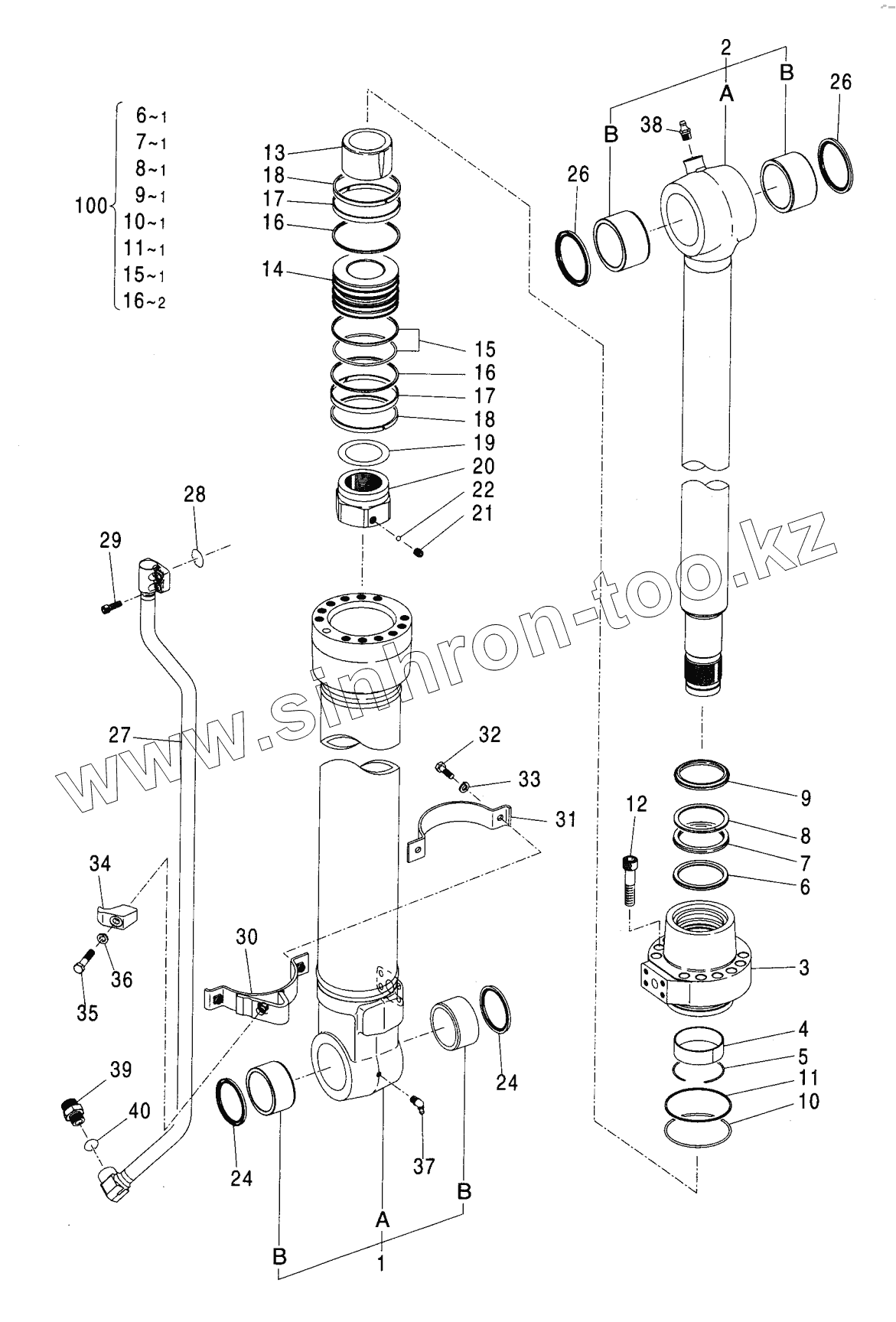

Каталог запасных частей к технике: Hitachi Компоненты ZX-230. CYL., BUCKET
0932807
TUBE
4332285
4332285
4613899
ROD
4397790
4397790
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
15
16
16
16
17
17
18
18
19
20
21
22
24
24
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0932807 | 0932807 | KIT, BAND | |
| TUBE | TUBE | TUBE | |
| 4332285 | 4332285 | BUSHING | |
| 4613899 | 4613899 | CYL. , BUCKET, | |
| ROD | ROD | ROD | |
| 4397790 | 4397790 | BUSHING | |
| 1 | 0932801 | TUBE, CYL. | |
| 2 | 0932802 | ROD, PISTON | |
| 3 | 0932803 | HEAD, CYL | |
| 4 | 0325904 | BUSHING | |
| 5 | 0237407 | RING, RETAINING | |
| 6 | 4469112 | RING | |
| 7 | 0105301 | PACKING, URING | |
| 8 | 0237419 | RING, BACKUP | |
| 9 | 4428492 | RING, WIPER | |
| 10 | А811125 | O-RING | |
| 11 | 0409906 | RING | |
| 12 | М341880 | BOLT, SOCKET | |
| 13 | 0932804 | RING, CUSHION | |
| 14 | 0707204 | PISTON | |
| 15 | 0254305 | RING | |
| 16 | 0409911 | RING | |
| 17 | 0932805 | RING, SLIDE | |
| 18 | 0254309 | RING | |
| 19 | 0309216 | SHIM | |
| 20 | 0789111 | NUT | |
| 21 | 0309011 | SCREW, SET | |
| 22 | 0111707 | BALL, STEEL | |
| 24 | 0815901 | RING, WIPER | |
| 26 | 0400902 | RING | |
| 27 | 0932806 | PIPE | |
| 28 | 4506430 | O-RING | |
| 29 | 4486953 | BOLT, SOCKET | |
| 30 | 0932808 | BAND | |
| 31 | 0399310 | BAND | |
| 32 | J021035 | BOLT, SEMS | |
| 33 | А590910 | WASHER, SPRING | |
| 34 | 0309021 | HOLDER | |
| 35 | 0667013 | BOLT | |
| 36 | 0208516 | WASHER, SPRING | |
| 37 | 0271312 | FITTING, GREASE | |
| 38 | J75481 | FITTING, GREASE | |
| 39 | А853166 | ADAPTER, S | |
| 40 | 4506424 | O-RING | |
| 100 | 4627361 | KIT, SEAL |
