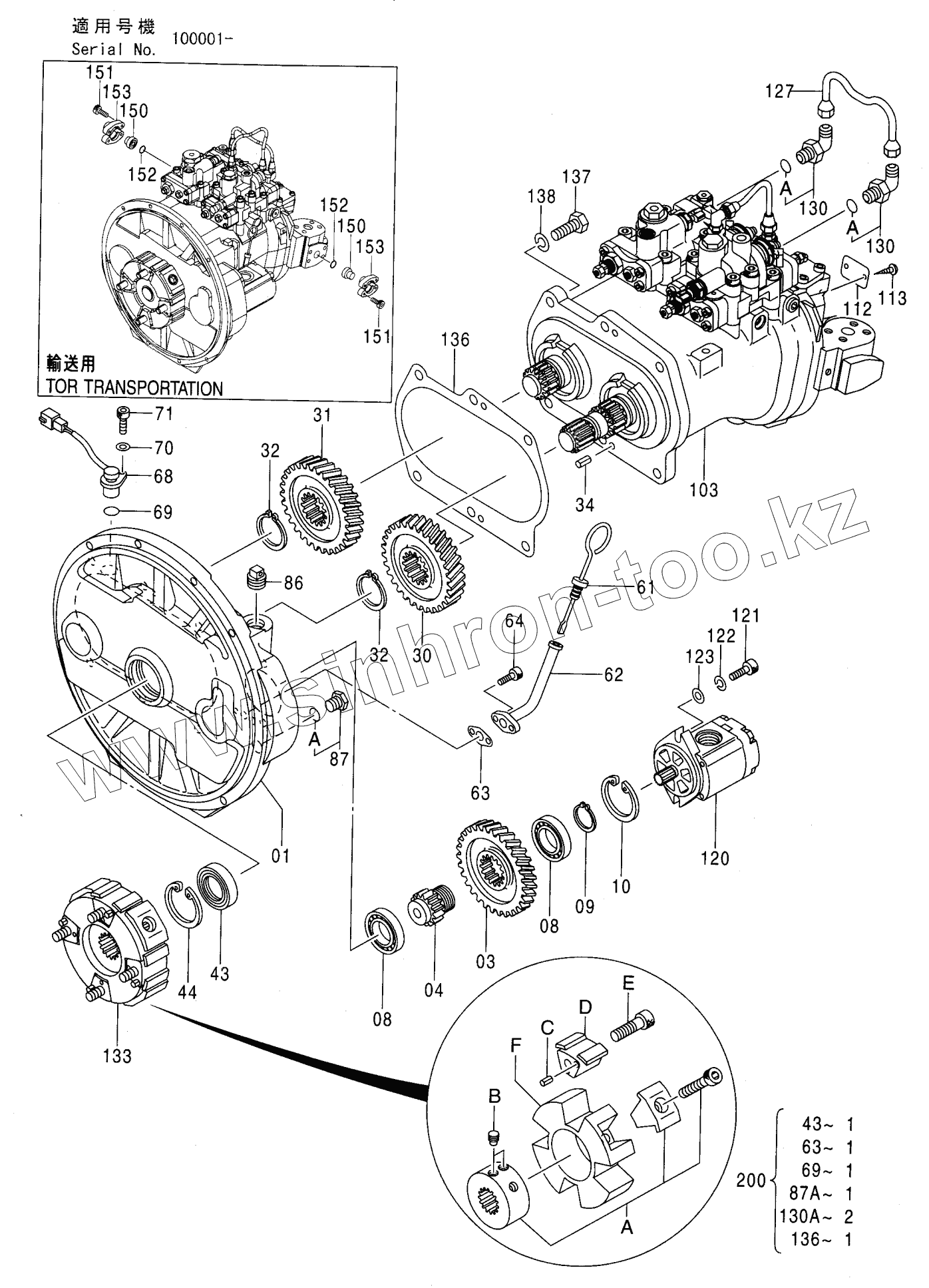

Каталог запасных частей к технике: Hitachi Компоненты ZX-200. PUMP DEVICE <E>
9195235
957366
957366
957366
4463992
4334899
4101345
4463993
4334894
4463994
9199113
4509180
4509180
1
3
4
8
8
9
10
30
31
32
32
34
43
43
44
61
62
63
63
64
68
69
69
70
71
86
87
103
112
113
120
121
122
123
127
130
130
133
136
136
137
138
150
150
151
151
152
152
153
153
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9195235 | 9195235 | PUMP DEVICE | |
| 957366 | 957366 | O-RING | |
| 4463992 | 4463992 | HUB | |
| 4334899 | 4334899 | SCREW, SET | |
| 4101345 | 4101345 | PIN, SPRING | |
| 4463993 | 4463993 | INSERT | |
| 4334894 | 4334894 | BOLT, SOCKET | |
| 4463994 | 4463994 | ELEMENT | |
| 9199113 | 9199113 | PUMP DEVICE | |
| 4509180 | 4509180 | O-RING | |
| 1 | 1027184 | CASING | |
| 3 | 3063840 | GEAR | |
| 4 | 3055594 | SHAFT | |
| 8 | 958740 | BRG. | |
| 9 | 962002 | RING, RETAINING | |
| 10 | 991725 | RING, RETAINING | |
| 30 | 3063842 | GEAR | |
| 31 | 3063843 | GEAR | |
| 32 | 4274552 | RING | |
| 34 | 4099290 | PIN | |
| 43 | 4310055 | SEAL | |
| 44 | 991725 | RING, RETAINING | |
| 61 | 4438059 | GAUGE | |
| 62 | 9743977 | PIPE | |
| 63 | 9742779 | PACKING | |
| 64 | М340816 | BOLT, SOCKET | |
| 68 | 4265372 | SENSOR, REVOL. | |
| 69 | 4306888 | O-RING | |
| 70 | А590106 | WASHER, PLANE | |
| 71 | М340616 | BOLT, SOCKET | |
| 86 | 4234782 | PLUG | |
| 87 | 4092534 | PLUG | |
| 103 | PUMP | PUMP, UNIT | |
| 112 | NAME-PLATE | NAME-PLATE | |
| 113 | N1492564 | SCREW | |
| 120 | 4276918 | PUMP | |
| 121 | М341030 | BOLT, SOCKET | |
| 122 | 984054 | WASHER, SPRING | |
| 123 | 4114402 | WASHER | |
| 127 | 4369148 | PIPE | |
| 130 | 4293950 | ELBOW, S | |
| 133 | 4416605 | COUPLING | |
| 136 | 8058352 | PACKING | |
| 137 | J901645 | BOLT | |
| 138 | А590916 | WASHER, SPRING | |
| 150 | 4423181 | PLUG | |
| 151 | J781035 | BOLT, SOCKET | |
| 152 | 971489 | O-RING | |
| 153 | 4506459 | FLANGE, SPLIT | |
| 200 | 4451036 | KIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
