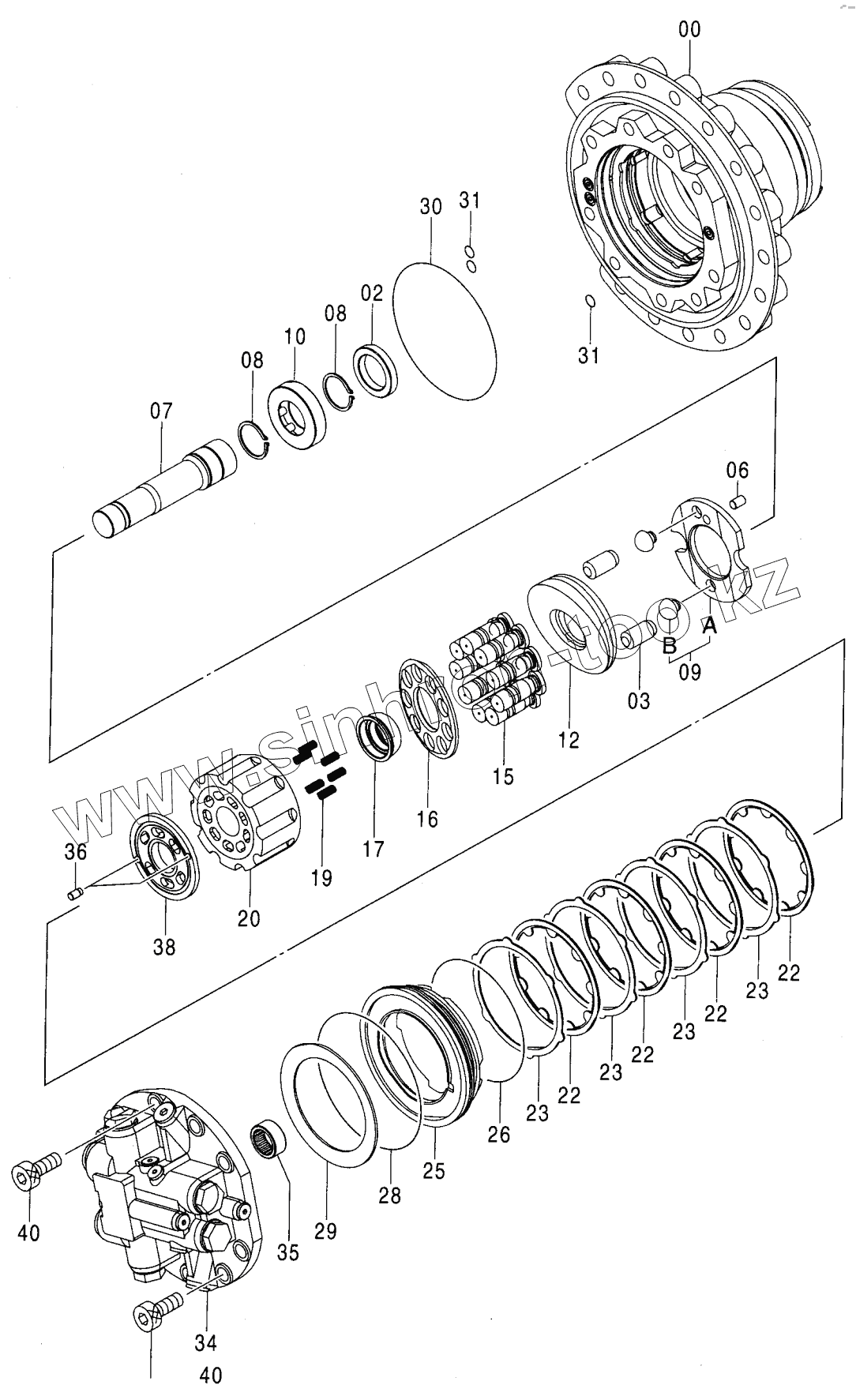

Каталог запасных частей к технике: Hitachi Компоненты ZX-200. MOTOR, OIL (TRAVEL) <N,240>
PIN
9213425
PLATE
9213473
1030335
2
3
6
7
8
8
9
10
12
15
16
17
19
20
22
22
22
22
23
23
23
23
25
26
28
29
30
31
31
34
34
35
36
36
36
36
38
38
38
38
40
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| PIN | PIN | PIN | |
| 9213425 | 9213425 | MOTOR | |
| PLATE | PLATE | PLATE | |
| 9213473 | 9213473 | MOTOR | |
| 1030335 | 1030335 | HOUSING | |
| 2 | 4396696 | SEAUOIL | |
| 3 | 4417431 | PISTON | |
| 6 | 4409640 | PIN, KNOCK | |
| 7 | 2042080 | SHAFT | |
| 8 | 991345 | RING | |
| 9 | 9173285 | PLATE ASSY | |
| 10 | 4396755 | BRG. | |
| 12 | 3088017 | PLATE | |
| 15 | 8075190 | PISTON ASSY | |
| 16 | 3081570 | RETAINER | |
| 17 | 4397757 | BUSHING | |
| 19 | 4396747 | SPRING | |
| 20 | 2042060 | ROTOR | |
| 22 | 3081593 | PLATE | |
| 23 | 3081592 | PLATE | |
| 25 | 3081595 | PISTON | |
| 26 | 4396775 | O-RING | |
| 28 | 4396774 | O-RING | |
| 29 | 3081594 | SPRING | |
| 30 | 4420958 | O-RING | |
| 31 | 4506415 | O-RING | |
| 34 | 9167777 | VALVE | |
| 34 | 9195450 | VALVE | |
| 35 | 4396759 | BRG. | |
| 36 | 4422627 | PIN, KNOCK | |
| 36 | 4610452 | PIN | |
| 36 | 4610452 | PIN | |
| 36 | 4422627 | PIN, KNOCK | |
| 38 | 3081568 | PLATE | |
| 38 | 3081568 | PLATE | |
| 38 | 3101081 | PLATE | |
| 38 | 3101081 | PLATE | |
| 40 | М341850 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
