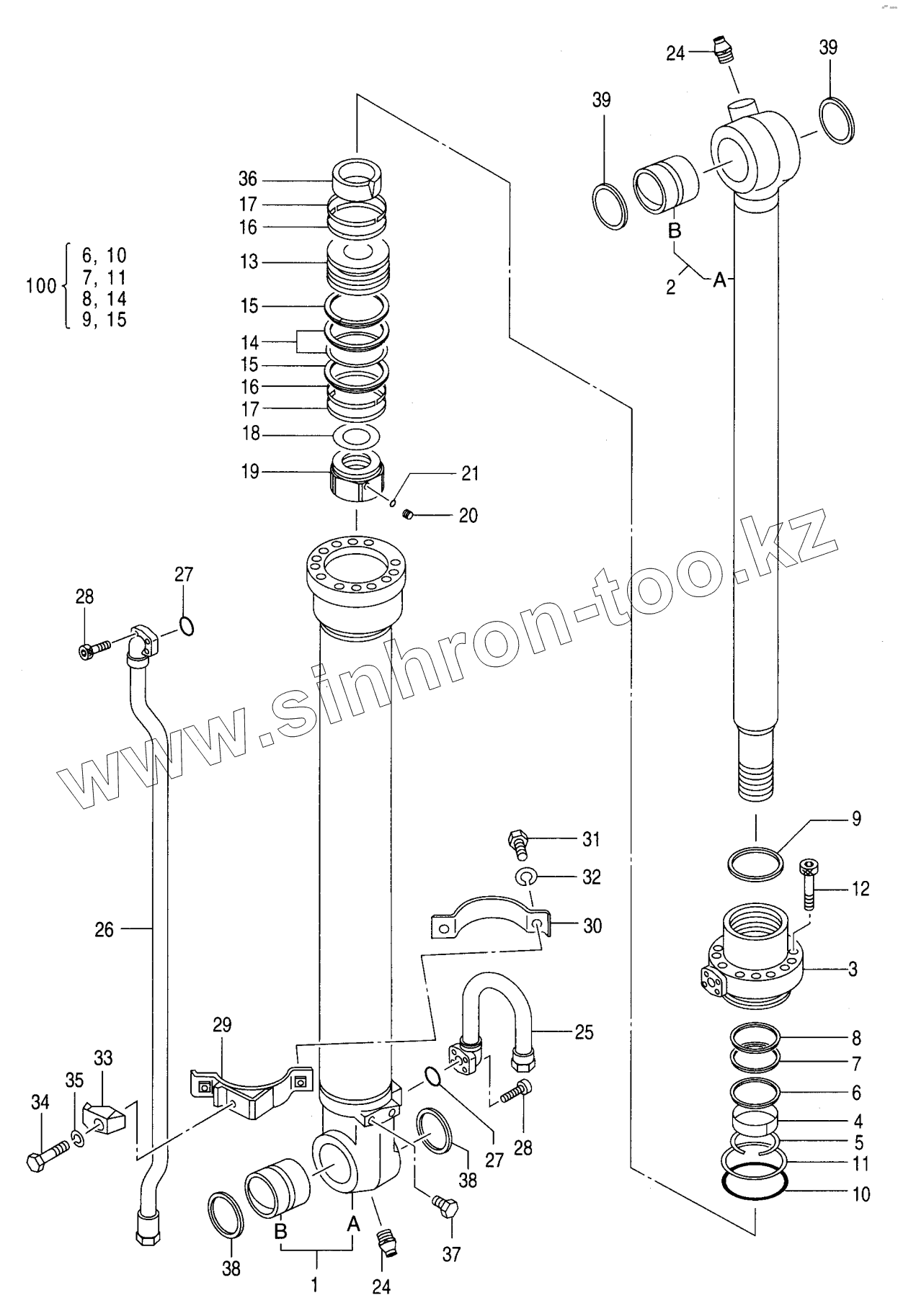

Каталог запасных частей к технике: Hitachi Компоненты ZX-200. CYL., BUCKET (RIVER MAINTENANCE)
4371061
TUBE
4365897
4365448
ROD
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
15
15
16
16
17
17
18
19
20
21
24
24
25
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
38
39
39
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4371061 | 4371061 | CYL. | |
| TUBE | TUBE | TUBE | |
| 4365897 | 4365897 | BUSHING | |
| 4365448 | 4365448 | BUSHING | |
| ROD | ROD | ROD | |
| 1 | 0671501 | TUBE | |
| 2 | 0671502 | ROD | |
| 3 | 0409103 | HEAD | |
| 4 | 0310604 | BUSHING | |
| 5 | 4510494 | RING, RETAINING | |
| 6 | 0409104 | RING | |
| 7 | 0225611 | PACKING, U-RING | |
| 8 | 0225612 | RING, BACK-UP | |
| 9 | 0667106 | RING | |
| 10 | А811090 | O-RING | |
| 11 | 0310606 | RING, BACK-UP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0409106 | PISTON | |
| 14 | 0310608 | RING, SEAL | |
| 15 | 0409107 | RING, BUCK-UP | |
| 16 | 0310609 | RING | |
| 17 | 0310610 | RING, SLIDE | |
| 18 | 0326007 | SHIM | |
| 19 | 0409108 | NUT | |
| 20 | 0310612 | SCREW, SET | |
| 21 | 0111818 | BALL, STEEL | |
| 24 | J75481 | FITTING, GREASE | |
| 25 | 0437003 | PIPE | |
| 26 | 0437004 | PIPE | |
| 27 | 4509181 | O-RING | |
| 28 | М340825 | BOLT, SOCKET | |
| 29 | 0409115 | BAND | |
| 30 | 0409116 | BAND | |
| 31 | 0408815 | BOLT | |
| 32 | 0325913 | WASHER | |
| 33 | 0310616 | HOLDER | |
| 34 | 0259509 | BOLT | |
| 35 | 0208516 | WASHER, SPRING | |
| 36 | 0409109 | BRG. | |
| 37 | 0409110 | BOLT | |
| 38 | 4094086 | SEAL, DUST | |
| 39 | 4065687 | SEAL, DUST | |
| 100 | 4364914 | KIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
