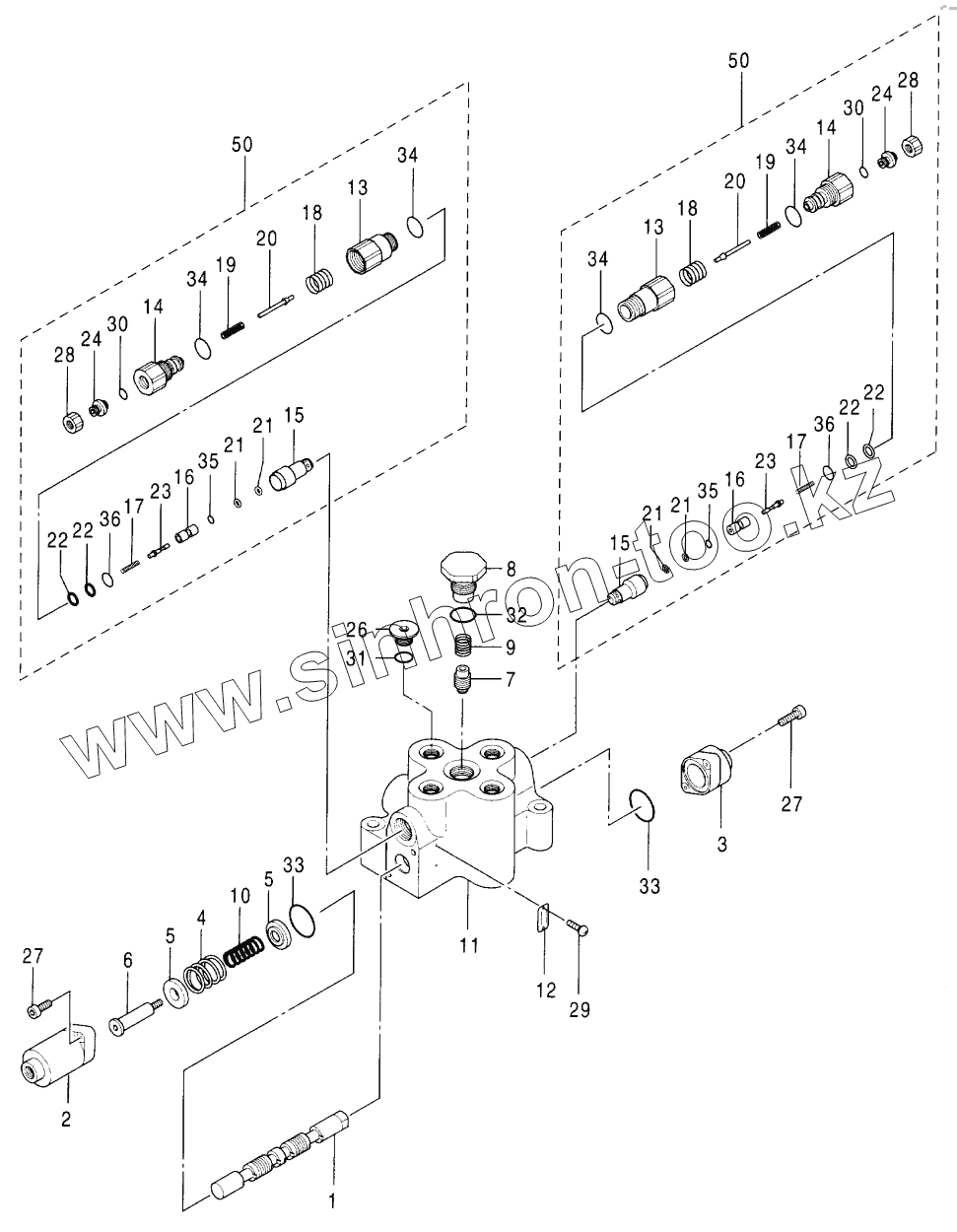

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. VALVE, CONTROL
4467405
1
2
3
4
5
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
21
21
22
22
22
22
23
23
24
24
26
27
27
28
28
29
30
30
31
32
33
33
34
34
34
34
35
35
36
36
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4467405 | 4467405 | VALVE, CONTROL | |
| 1 | SPOOL | SPOOL | |
| 2 | 0766501 | COVER | |
| 3 | 0766502 | COVER | |
| 4 | 0766503 | SPRING, COMPRES. | |
| 5 | 0766504 | HOLDER, SPRING | |
| 6 | 0766505 | END, SPOOL | |
| 7 | 0757602 | PLUNGER | |
| 8 | 0878601 | PLUG | |
| 9 | 0766508 | SPRING, COMPRES. | |
| 10 | 0766509 | SPRING, COMPRES. | |
| 11 | BODY | BODY | |
| 12 | NAME-PLATE | NAME-PLATE | |
| 13 | ADAPTER | PLATE, ADAPTER | |
| 14 | BODY | BODY | |
| 15 | POPPET | POPPET | |
| 16 | POPPET | POPPET | |
| 17 | SPRING | SPRING | |
| 18 | SPRING | SPRING | |
| 19 | SPRING | SPRING | |
| 20 | VALVE | BODY, VALVE | |
| 21 | RING | RING | |
| 22 | RING | RING | |
| 23 | PIN | PIN | |
| 24 | SCREW | SCREW | |
| 26 | 0343611 | PLUG | |
| 27 | 0370410 | BOLT, SOCKET | |
| 28 | NUT | NUT | |
| 29 | 0794701 | SCREW, DRIVE | |
| 30 | O-RING | O-RING | |
| 31 | 4506418 | O-RING | |
| 32 | 4506424 | O-RING | |
| 33 | 0766510 | O-RING | |
| 34 | O-RING | O-RING | |
| 35 | O-RING | O-RING | |
| 36 | O-RING | O-RING | |
| 50 | 0878602 | VALVE, RELIEF |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
