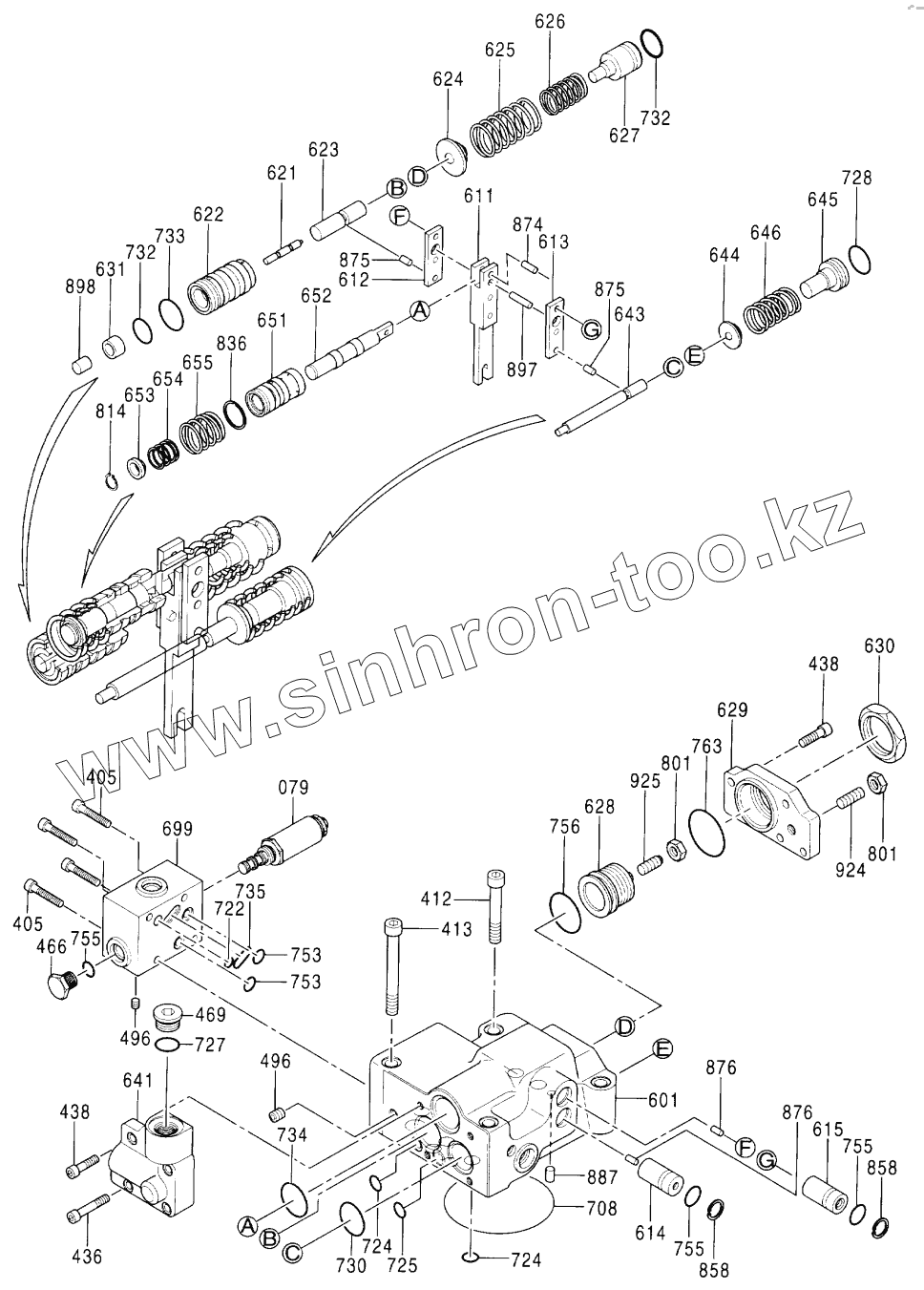

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. REGULATOR (REAR)
4612659
79
405
405
412
413
436
438
438
466
469
496
496
601
611
612
613
614
615
621
622
623
624
625
626
627
628
629
630
631
641
643
644
645
646
651
652
653
654
655
699
708
722
724
724
725
727
728
730
732
732
733
734
735
753
753
755
755
755
756
763
801
801
814
836
858
858
874
875
875
876
876
887
897
898
924
925
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4612659 | 4612659 | REGULATOR | |
| 79 | 0878401 | VALVE, SOLENOID | |
| 405 | 0218824 | BOLT, SOCKET | |
| 412 | 0135904 | BOLT, SOCKET | |
| 413 | 0213208 | BOLT, SOCKET | |
| 436 | 0211510 | BOLT, SOCKET | |
| 438 | 0102411 | BOLT, SOCKET | |
| 466 | 0236014 | PLUG | |
| 469 | 0878301 | PLUG | |
| 496 | 0263019 | PLUG | |
| 601 | CASING | CASING | |
| 611 | LEVER | LEVER | |
| 612 | LEVER | LEVER | |
| 613 | LEVER | LEVER | |
| 614 | PLUG | PLUG | |
| 615 | PLUG | PLUG | |
| 621 | PISTON | PISTON | |
| 622 | CASE | CASE | |
| 623 | ROD | ROD | |
| 624 | SEAT | SEAT | |
| 625 | SPRING | SPRING | |
| 626 | SPRING | SPRING | |
| 627 | ROD | ROD | |
| 628 | SCREW | SCREW | |
| 629 | COVER | COVER | |
| 630 | NUT | NUT | |
| 631 | SLEEVE | SLEEVE | |
| 641 | COVER | COVER | |
| 643 | PISTON | PISTON | |
| 644 | SEAT | SEAT | |
| 645 | ROD | ROD | |
| 646 | SPRING | SPRING | |
| 651 | SLEEVE | SLEEVE | |
| 652 | SPOOL | SPOOL | |
| 653 | SEAT | SEAT | |
| 654 | SPRING | SPRING | |
| 655 | SPRING | SPRING | |
| 699 | CASING | CASING | |
| 708 | A811075 | O-RING | |
| 722 | 4506406 | O-RING | |
| 724 | 4506408 | O-RING | |
| 725 | 4506320 | O-RING | |
| 727 | 4509180 | O-RING | |
| 728 | 4506418 | O-RING | |
| 730 | 4509181 | O-RING | |
| 732 | 4506416 | O-RING | |
| 733 | 4506420 | O-RING | |
| 734 | А811025 | O-RING | |
| 735 | 4140470 | O-RING | |
| 753 | 4506412 | O-RING | |
| 755 | 957366 | O-RING | |
| 756 | 4509182 | O-RING | |
| 763 | А811035 | O-RING | |
| 801 | 0124811 | NUT | |
| 814 | 991334 | RING, RETAINING | |
| 836 | RING | RING | |
| 858 | 0288704 | RING, RETAINING | |
| 874 | PIN | PIN | |
| 875 | PIN | PIN | |
| 876 | PIN | PIN | |
| 887 | PIN | PIN | |
| 897 | PIN | PIN | |
| 898 | PIN | PIN | |
| 924 | 0218852 | SCREW | |
| 925 | SCREW | SCREW |
