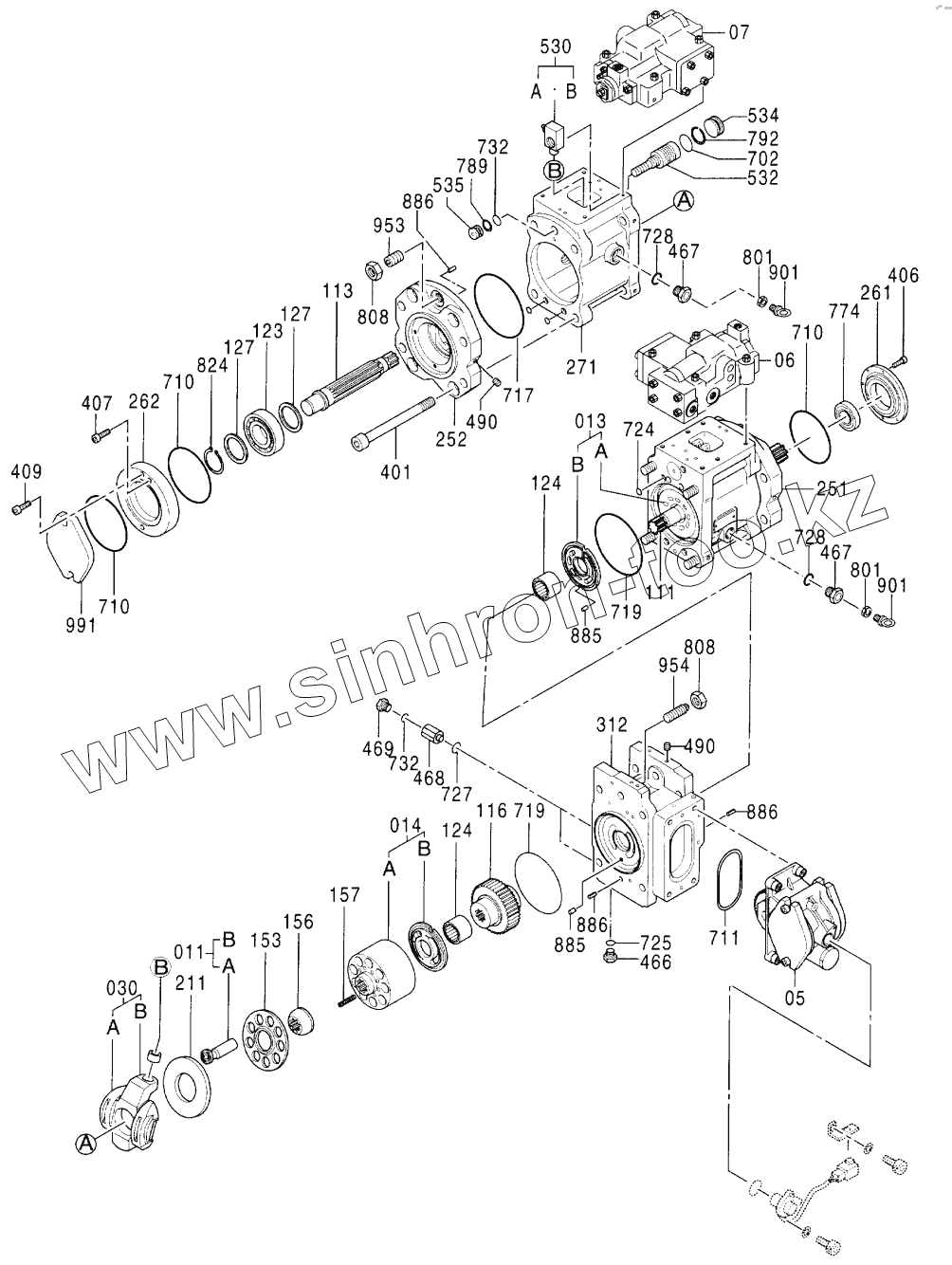

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. PUMP, PISTON
PIN
PIN
4460659
BUSHING
PISTON
SHOE
PLATE
BLOCK
PLATE
PLATE
BLOCK
5
6
7
11
13
14
30
111
113
116
123
124
124
127
127
153
156
157
211
251
252
261
262
271
312
401
406
407
409
466
467
467
468
469
490
490
530
532
534
535
702
710
710
710
711
717
719
719
724
725
727
728
728
732
732
774
789
792
801
801
808
808
824
885
885
886
886
886
901
901
953
954
991
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| PIN | PIN | PIN | |
| PIN | PIN | PIN | |
| 4460659 | 4460659 | PUMP, PISTON | |
| BUSHING | BUSHING | BUSHING | |
| PISTON | PISTON | PISTON | |
| SHOE | SHOE | SHOE | |
| PLATE | PLATE | PLATE | |
| BLOCK | BLOCK | JUNCTION BLOCK | |
| PLATE | PLATE | PLATE | |
| PLATE | PLATE | PLATE | |
| BLOCK | BLOCK | JUNCTION BLOCK | |
| 5 | 4612660 | BOX, GEAR | |
| 6 | 4612658 | REGULATOR | |
| 7 | 4612659 | REGULATOR | |
| 11 | 878101 | PISTON ASS'Y | |
| 13 | 878102 | CYL ASS'Y | |
| 14 | 818502 | CYL. ASS'Y | |
| 30 | 878103 | PLATE ASS'Y | |
| 111 | 878104 | SHAFT | |
| 113 | 878105 | SHAFT | |
| 116 | 878106 | GEAR | |
| 123 | 878107 | BRG. , ROL | |
| 124 | 878108 | BRG. , NEEDLE | |
| 127 | 818508 | SPACER | |
| 153 | 878109 | PLATE | |
| 156 | 818510 | BUSHING | |
| 157 | 818511 | SPRING | |
| 211 | 818512 | PLATE | |
| 251 | 818513 | SUPPORT | |
| 252 | 878110 | SUPPORT | |
| 261 | 878111 | COVER, SEAL | |
| 262 | 878112 | PLATE | |
| 271 | 818515 | CASING | |
| 312 | 878113 | BLOCK | |
| 401 | 818519 | BOLT, SOCKET | |
| 406 | 0237902 | BOLT, SOCKET | |
| 407 | 211510 | BOLT, SOCKET | |
| 409 | 179507 | BOLT, SOCKET | |
| 466 | 236014 | PLUG | |
| 467 | 818520 | PLUG | |
| 468 | 878114 | ADAPTER | |
| 469 | 0626901 | PLUG | |
| 490 | 0263019 | PLUG | |
| 530 | 0878115 | PIN ASS'Y | |
| 532 | 0878116 | PISTON | |
| 534 | 0818523 | STOPPER | |
| 535 | 0818524 | STOPPER | |
| 702 | А811030 | O-RING | |
| 710 | А811085 | O-RING | |
| 711 | А811095 | O-RING | |
| 717 | А811120 | O-RING | |
| 719 | А811115 | O-RING | |
| 724 | 4506408 | O-RING | |
| 725 | 957366 | O-RING | |
| 727 | 4509180 | O-RING | |
| 728 | 4506418 | O-RING | |
| 732 | 4506416 | O-RING | |
| 774 | 0878117 | SEAL, OIL | |
| 789 | 4085607 | RING, BACK-UP | |
| 792 | 0249148 | RING, BACKUP | |
| 801 | 0124811 | NUT | |
| 808 | 0131108 | NUT, LOCK | |
| 824 | 991342 | RING, RETAINING | |
| 885 | 0175241 | PIN | |
| 886 | 0244604 | PIN, SPRING | |
| 901 | 4163072 | BOLT, EYE | |
| 953 | 0708027 | SCREW, SET | |
| 954 | 0818525 | SCREW, SET | |
| 991 | 0820422 | COVER |
