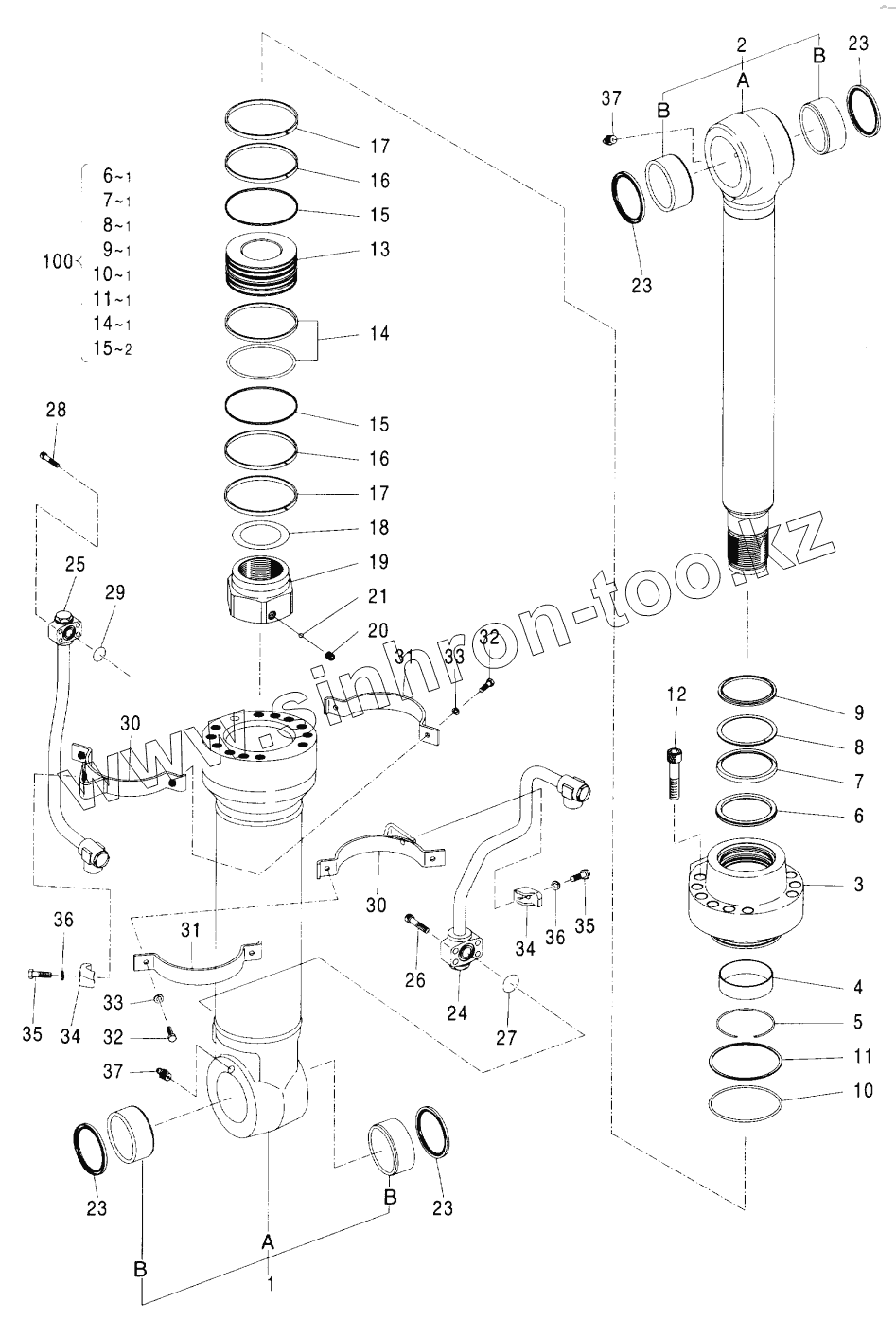

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. CYL., POSITIONING
0875611
TUBE
4381859
4381859
4465567
ROD
4381859
4381859
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
15
15
16
16
17
17
18
19
20
21
23
23
23
23
24
25
26
27
28
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0875611 | 0875611 | KIT, BAND | |
| TUBE | TUBE | TUBE | |
| 4381859 | 4381859 | BUSHING | |
| 4465567 | 4465567 | CYL , POSITIONING | |
| ROD | ROD | ROD | |
| 4381859 | 4381859 | BUSHING | |
| 1 | 0875601 | TUBE, CYL ASS'Y | |
| 2 | 0875602 | ROD, PISTON ASS'Y | |
| 3 | 0875603 | HEAD, CYL | |
| 4 | 0450506 | BUSHING | |
| 5 | 0133103 | RING, RETAINING | |
| 6 | 0875604 | RING, BACKUP | |
| 7 | 4069711 | PACKING, URING | |
| 8 | 0262403 | RING, BACKUP | |
| 9 | 4438199 | RING, WIPER | |
| 10 | A811160 | O-RING | |
| 11 | 4170546 | RING, BACKUP | |
| 12 | 0875605 | BOLT, SOCKET | |
| 13 | 0875606 | PISTON | |
| 14 | 4170547 | RING, SEAL ASS'Y | |
| 15 | 0875607 | RING, BACKUP | |
| 16 | 0420109 | RING, SLIDE | |
| 17 | 0259307 | RING, SLIDE | |
| 18 | 0353010 | SHIM | |
| 19 | 0875608 | NUT | |
| 20 | 0353012 | SCREW, SET | |
| 21 | 0353011 | BALL, STEEL | |
| 23 | 0420110 | RING, WIPER | |
| 24 | 0875609 | PIPE | |
| 25 | 0875610 | PIPE | |
| 26 | 0309020 | BOLT, SOCKET | |
| 27 | 984614 | O-RING | |
| 28 | 0309019 | BOLT, SOCKET | |
| 29 | 4506430 | O-RING | |
| 30 | 0875612 | BAND | |
| 31 | 0352721 | BAND | |
| 32 | 0408815 | BOLT | |
| 33 | 0325913 | WASHER | |
| 34 | 0309021 | HOLDER | |
| 35 | 0667013 | BOLT | |
| 36 | 0208516 | WASHER, SPRING | |
| 37 | J75481 | FITTING, GREASE | |
| 100 | 4616211 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
