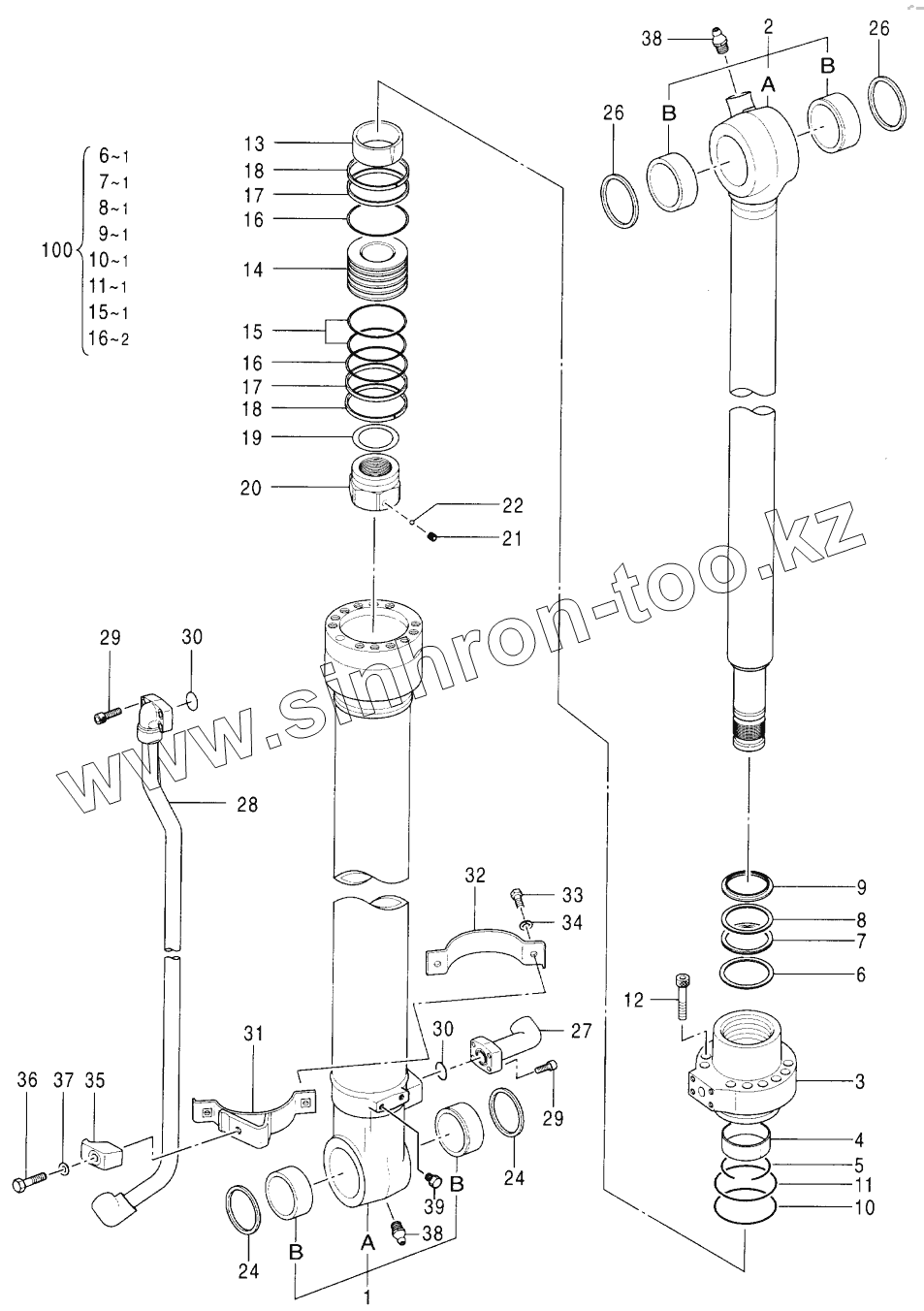

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. CYL., BUCKET
0675109
TUBE
4362025
4362025
4448534
ROD
4352400
4352400
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
15
16
16
16
17
17
18
18
19
20
21
22
24
24
26
26
27
28
29
29
30
30
31
32
33
34
35
36
37
38
38
39
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0675109 | 0675109 | KIT, BAND | |
| TUBE | TUBE | TUBE | |
| 4362025 | 4362025 | BUSHING | |
| 4448534 | 4448534 | CYL., BUCKET | |
| ROD | ROD | ROD | |
| 4352400 | 4352400 | BUSHING | |
| 1 | 0694401 | TUBE, CYL ASS' Y | |
| 2 | 0829501 | ROD, PISTON ASS'Y | |
| 3 | |0789905 | HEAD, CYL | |
| 4 | 0310504 | BUSHING | |
| 5 | 0240904 | RING, RETAINING | |
| 6 | 0789906 | RING | |
| 7 | 0240911 | PACKING, U-RING | |
| 8 | 0240912 | RING, BACK-UP | |
| 9 | 0667504 | RING, WIPER | |
| 10 | А811100 | O-RING | |
| 11 | 0310506 | RING, BACK-UP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0694403 | BRG., CUSHION | |
| 14 | 0408808 | PISTION | |
| 15 | 0310508 | RING, SEAL | |
| 16 | 0408809 | RING, BACK-UP | |
| 17 | 0666808 | RING, SLIDE | |
| 18 | 0310510 | RING, SLIDE | |
| 19 | 0310514 | SHIM | |
| 20 | 0789307 | NUT | |
| 21 | 0309011 | SCREW, SET | |
| 22 | 0111707 | BALL, STEEL | |
| 24 | 4065687 | SEAL, DUST | |
| 26 | 4084578 | SEAL, DUST | |
| 27 | 0309312 | JOINT | |
| 28 | 0694404 | PIPE | |
| 29 | 0158855 | BOLT, SOCKET | |
| 30 | 4506430 | O-RING | |
| 31 | 0675108 | BAND | |
| 32 | 0409612 | BAND | |
| 33 | 0408815 | BOLT | |
| 34 | 0325913 | WASHER | |
| 35 | 0309021 | HOLDER | |
| 36 | 0667013 | BOLT | |
| 37 | 0208516 | WASHER, SPRING | |
| 38 | J75481 | FITTING, GREASE | |
| 39 | 0409110 | BOLT | |
| 100 | 4467381 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
