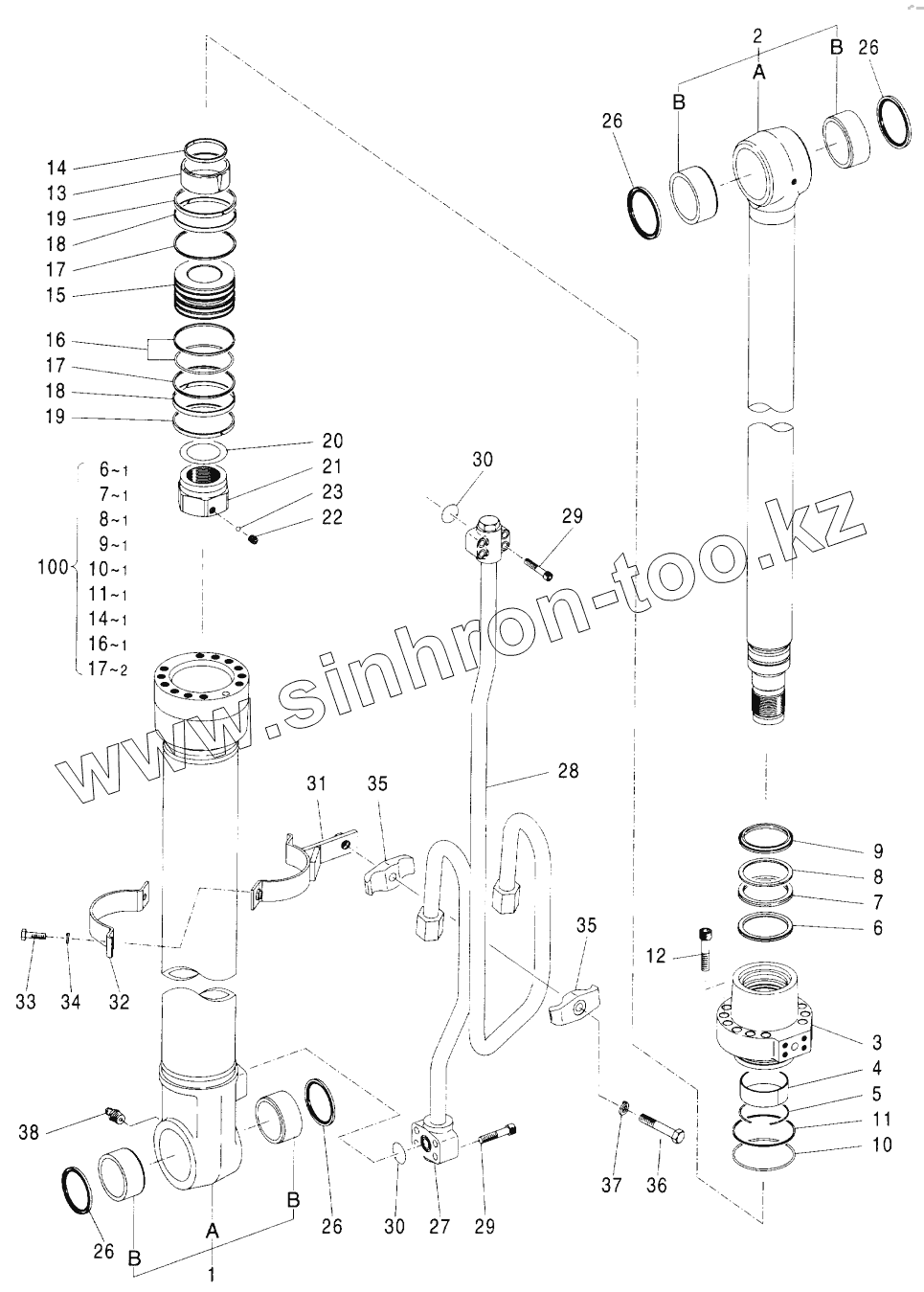

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. CYL., BOOM (L) (MONO BOOM)
0867604
TUBE
4370747
4370747
4465564
ROD
4352398
4352398
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
26
26
26
26
27
28
29
29
30
30
31
32
33
34
35
35
36
37
38
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0867604 | 0867604 | KIT, BAND | |
| TUBE | TUBE | TUBE | |
| 4370747 | 4370747 | BUSHING | |
| 4465564 | 4465564 | CYL, BOOM | |
| ROD | ROD | ROD | |
| 4352398 | 4352398 | BUSHING | |
| 1 | 0867801 | TUBE, CYL. ASS'Y | |
| 2 | 0828902 | ROD, PISTON ASS'Y | |
| 3 | 0828903 | HEAD, CYL. | |
| 4 | 0309304 | BUSHING | |
| 5 | 0208604 | RING, RETAINING | |
| 6 | 0789206 | RING | |
| 7 | 0208605 | PACKING, U-RING | |
| 8 | 0208606 | RING, BACK-UP | |
| 9 | 0667006 | RING, WIPER | |
| 10 | А811105 | O-RING | |
| 11 | 0298904 | RING, BACKUP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0409005 | BRG., CUSHION | |
| 14 | 0667007 | SEAL | |
| 15 | 0409007 | PISTON | |
| 16 | 0240915 | RING, SEAL ASS'Y | |
| 17 | 0409008 | RING, BACKUP | |
| 18 | 0667008 | RING, SLIDE | |
| 19 | 0298907 | RING, SLIDE | |
| 20 | 0409010 | SHIM | |
| 21 | 0789506 | NUT | |
| 22 | 0309011 | SCREW, SET | |
| 23 | 0111707 | BALL, STEEL | |
| 26 | 4067902 | SEAL, DUST | |
| 27 | 0867802 | PIPE | |
| 28 | 0867803 | PIPE | |
| 29 | 0309019 | BOLT, SOCKET | |
| 30 | 4506430 | O-RING | |
| 31 | 0867605 | BAND | |
| 32 | 0609115 | BAND | |
| 33 | 0408815 | BOLT | |
| 34 | 0325913 | WASHER | |
| 35 | 0236915 | HOLDER | |
| 36 | 0254312 | BOLT | |
| 37 | А590914 | WASHER, SPRING | |
| 38 | J75481 | FITTING, GREASE | |
| 100 | 4467379 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
