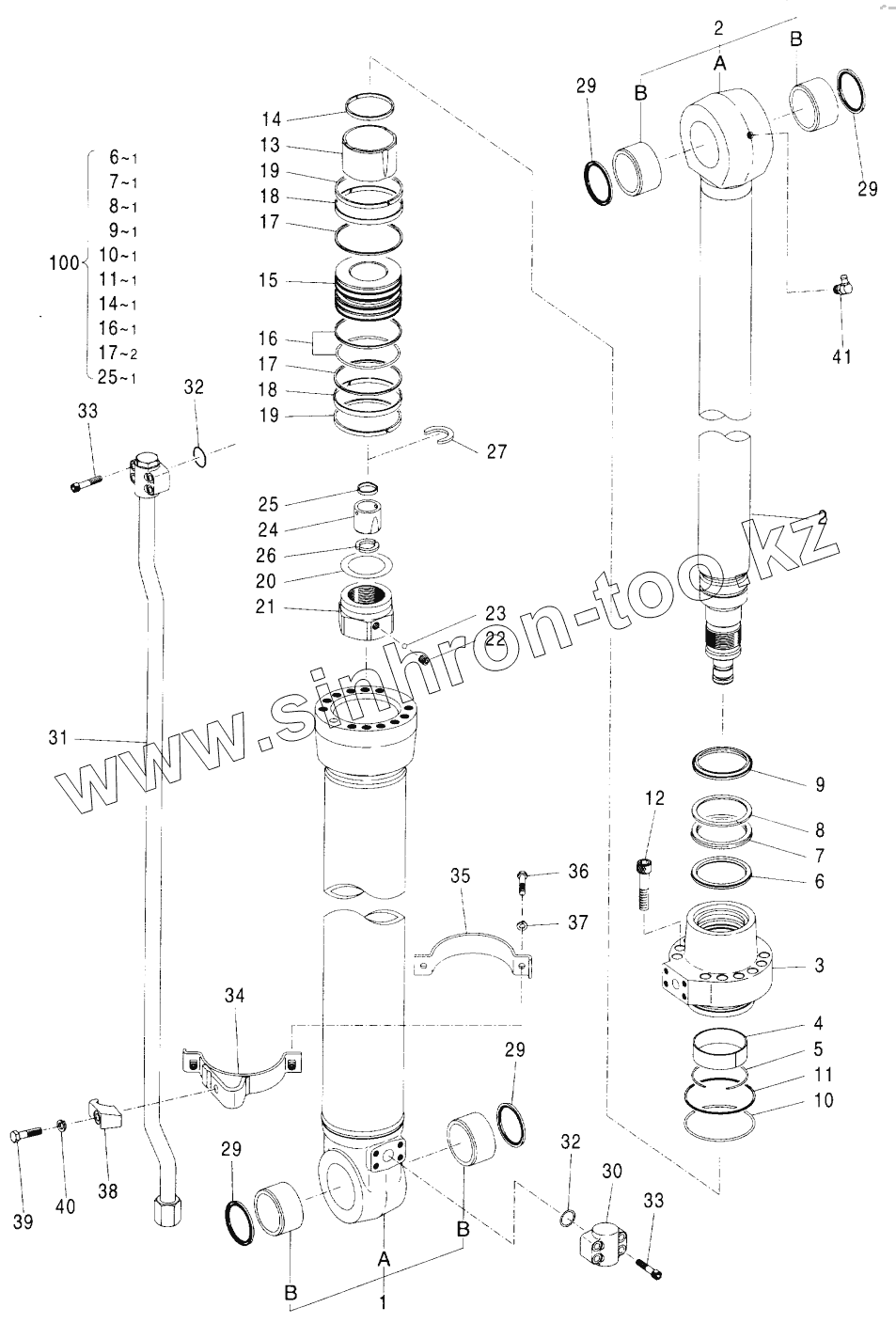

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. CYL., ARM (2P-B00M)
0829309
TUBE
4352400
4352400
4600518
ROD
4352400
4352400
1
2
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
24
25
25
26
27
29
29
29
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0829309 | 0829309 | KIT, BAND | |
| TUBE | TUBE | TUBE | |
| 4352400 | 4352400 | BUSHING | |
| 4600518 | 4600518 | CYL, ARM | |
| ROD | ROD | ROD | |
| 4352400 | 4352400 | BUSHING | |
| 1 | 0875401 | TUBE, CYL. ASS'Y | |
| 2 | 0829302 | ROD, PISTON ASS'Y | |
| 3 | 0829303 | HEAD, CYL. | |
| 4 | 0325904 | BUSHING | |
| 5 | |0237407 | RING, RETAINING | |
| 6 | 0829304 | RING | |
| 7 | !0105301 | PACKING, URING | |
| 8 | |0237419 | RING, BACKUP | |
| 9 | 0829305 | RING, WIPER | |
| 10 | А811115 | O-RING | |
| 11 | 0261310 | RING, BACK-UP | |
| 12 | 0409705 | BOLT, SOCKET | |
| 13 | 0829306 | BRG. , CUSHION | |
| 14 | 0829307 | SEAL | |
| 15 | 0409708 | PISTON | |
| 16 | 0258205 | RING, SEAL | |
| 17 | 0409709 | RING, BACKUP | |
| 18 | 0667206 | RING, SLIDE | |
| 19 | 0261308 | RING, SLIDE | |
| 20 | 0309013 | SHIM | |
| 21 | 0788907 | NUT | |
| 22 | 0309011 | SCREW, SET | |
| 23 | 0111707 | BALL, STEEL | |
| 24 | 0409913 | BRG., CUSHION | |
| 25 | 0667411 | SEAL, CUSHION | |
| 26 | 0409915 | STOPPER | |
| 27 | 0686406 | RING, RETAINING | |
| 29 | 0857404 | RING, WIPER | |
| 30 | 0409016 | JOINT | |
| 31 | 0875402 | PIPE | |
| 32 | 4506430 | O-RING | |
| 33 | 0309019 | BOLT, SOCKET | |
| 34 | 0767609 | BAND | |
| 35 | 0309017 | BAND | |
| 36 | 0408815 | BOLT | |
| 37 | 0325913 | WASHER | |
| 38 | 0309021 | HOLDER | |
| 39 | 0667013 | BOLT | |
| 40 | 0208516 | WASHER, SPRING | |
| 41 | 0225709 | FITTING, GREASE | |
| 100 | 4467380 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
