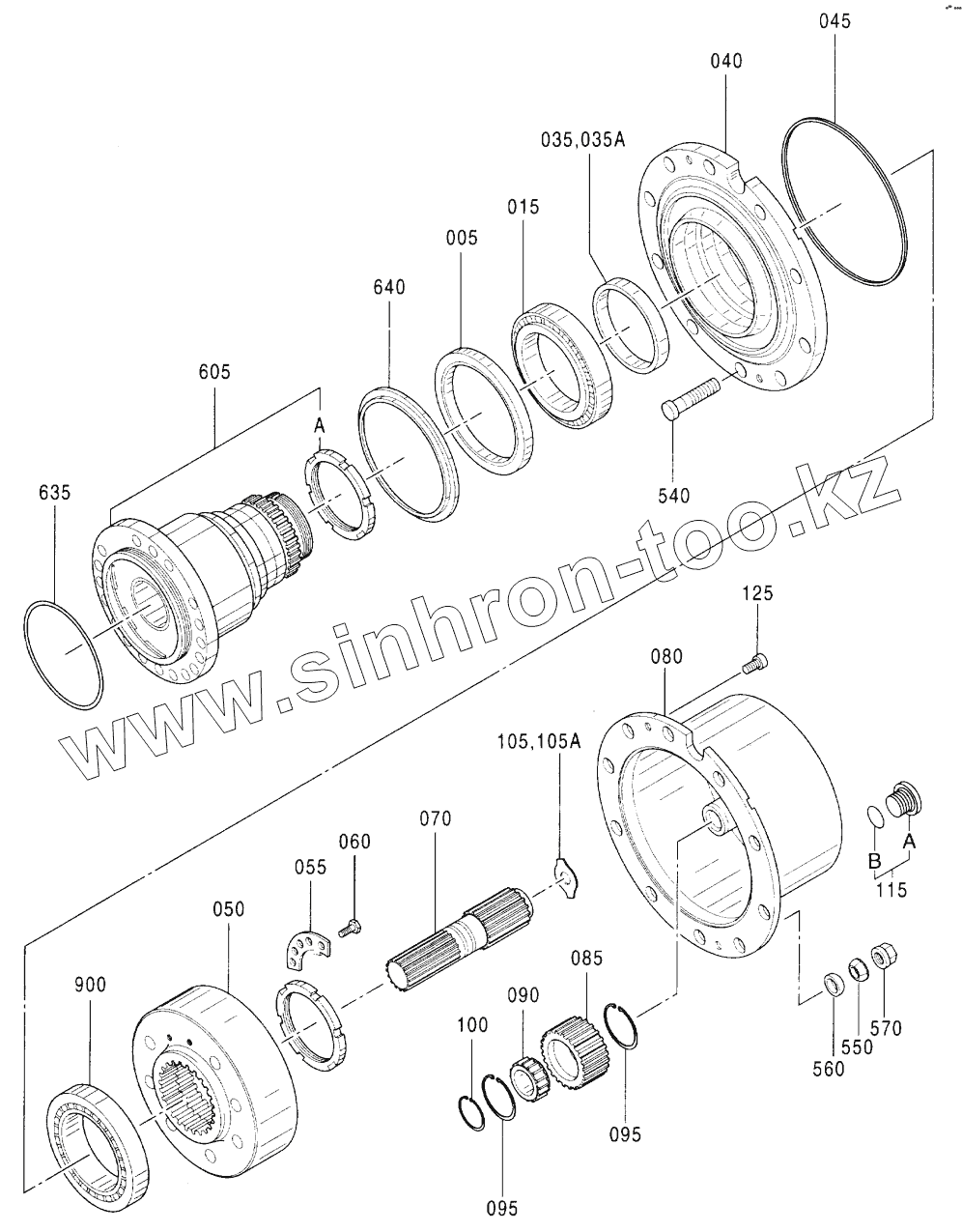

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. AXLE, REAR (4) (WIDE)
0886012
0884547
4477180
0886014
0878809
0885003
5
15
35
40
45
50
55
60
70
80
85
90
95
95
100
105
115
125
540
550
560
570
605
635
640
900
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0885031 | 0885031 | RING | |
| 0885021 | 0885021 | RING | |
| 0885022 | 0885022 | RING | |
| 0885023 | 0885023 | RING | |
| 0885024 | 0885024 | RING | |
| 0885025 | 0885025 | RING | |
| 0885026 | 0885026 | RING | |
| 0885027 | 0885027 | RING | |
| 0885028 | 0885028 | RING | |
| 0885029 | 0885029 | RING | |
| 0885030 | 0885030 | RING | |
| 0885020 | 0885020 | RING | |
| 0885032 | 0885032 | RING | |
| 0886012 | 0886012 | PLUG | |
| 0886011 | 0886011 | WASHER, TURUST | |
| 0886010 | 0886010 | WASHER, TURUST | |
| 0886009 | 0886009 | WASHER, TURUST | |
| 0886008 | 0886008 | WASHER, TURUST | |
| 0884550 | 0884550 | WASHER, TURUST | |
| 0884549 | 0884549 | WASHER, TURUST | |
| 0884548 | 0884548 | WASHER, TURUST | |
| 0884547 | 0884547 | WASHER, TURUST | |
| 0885010 | 0885010 | RING | |
| 4477180 | 4477180 | AXLE, REAR | |
| 0886014 | 0886014 | NUT | |
| 0878809 | 0878809 | O-RING | |
| 0885003 | 0885003 | RING | |
| 0885004 | 0885004 | RING | |
| 0885005 | 0885005 | RING | |
| 0885006 | 0885006 | RING | |
| 0885007 | 0885007 | RING | |
| 0885008 | 0885008 | RING | |
| 0885009 | 0885009 | RING | |
| 0885011 | 0885011 | RING | |
| 0885012 | 0885012 | RING | |
| 0885013 | 0885013 | RING | |
| 0885014 | 0885014 | RING | |
| 0885015 | 0885015 | RING | |
| 0885016 | 0885016 | RING | |
| 0885017 | 0885017 | RING | |
| 0885018 | 0885018 | RING | |
| 0885019 | 0885019 | RING | |
| 5 | 0885001 | SEAL | |
| 15 | 0886001 | BRG., ROL | |
| 35 | RING | RING | |
| 40 | 0886002 | HUB | |
| 45 | 0884517 | O-RING | |
| 50 | 0886003 | GEAR, RING | |
| 55 | 0886004 | WASHER | |
| 60 | 0886005 | BOLT | |
| 70 | 0886006 | GEAR, SUN | |
| 80 | 0886007 | CARRIER | |
| 85 | 0884543 | GEAR | |
| 90 | 0884544 | BRG., ROL | |
| 95 | 0884545 | RING | |
| 100 | 0884546 | RING, RETAINING | |
| 105 | WASHER | WASHER | |
| 115 | PLUG | PLUG | |
| 125 | 0884555 | BOLT, SOCKET | |
| 540 | 0884556 | HUBBOLT | |
| 550 | 0884557 | WASHER, SPRING | |
| 560 | 0884558 | RING | |
| 570 | 0884559 | HUBNUT | |
| 605 | 0886013 | HUB | |
| 635 | 0885041 | O-RING | |
| 640 | 0885042 | PLATE | |
| 900 | 0884515 | BRG., ROL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
