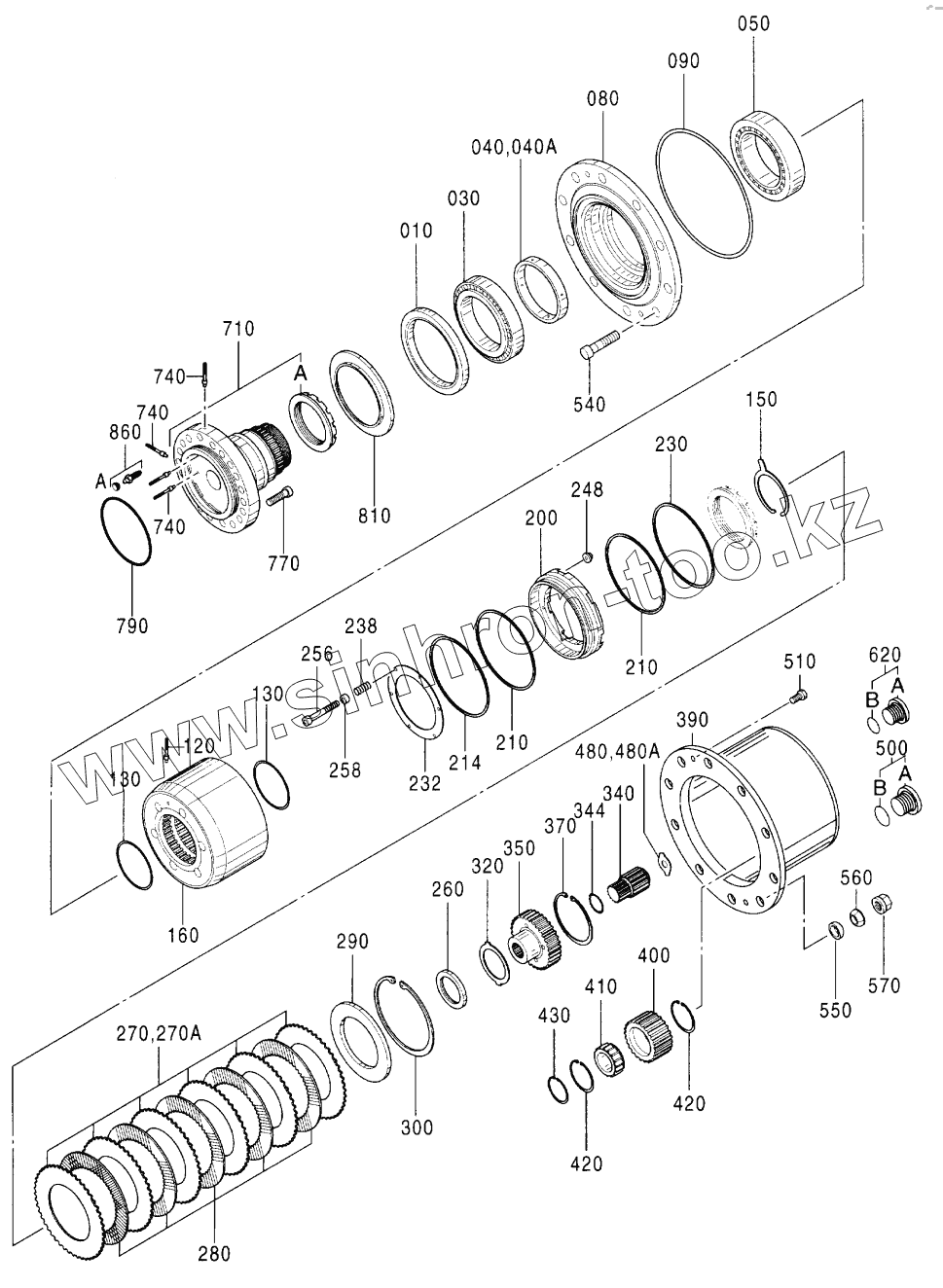

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. AXLE, REAR (4)
0884348
0879636
0884560
0884554
0884547
0884531
4457308
0884426
0884402
0885003
10
30
40
50
80
90
120
130
130
150
160
200
210
210
214
230
232
238
248
256
258
260
270
280
290
300
320
340
344
350
370
390
400
410
420
420
430
480
500
510
540
550
560
570
620
710
740
740
740
770
790
810
860
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0884348 | 0884348 | O-RING | |
| 0885024 | 0885024 | RING | |
| 0885025 | 0885025 | RING | |
| 0885026 | 0885026 | RING | |
| 0885027 | 0885027 | RING | |
| 0885028 | 0885028 | RING | |
| 0885029 | 0885029 | RING | |
| 0885030 | 0885030 | RING | |
| 0885031 | 0885031 | RING | |
| 0885032 | 0885032 | RING | |
| 0879636 | 0879636 | O-RING | |
| 0884560 | 0884560 | PLUG | |
| 0885023 | 0885023 | RING | |
| 0884554 | 0884554 | PLUG | |
| 0884553 | 0884553 | WASHER, TURUST | |
| 0884552 | 0884552 | WASHER, TURUST | |
| 0884551 | 0884551 | WASHER, TURUST | |
| 0884550 | 0884550 | WASHER, TURUST | |
| 0884549 | 0884549 | WASHER, TURUST | |
| 0884548 | 0884548 | WASHER, TURUST | |
| 0884547 | 0884547 | WASHER, TURUST | |
| 0884533 | 0884533 | PLATE | |
| 0884532 | 0884532 | PLATE | |
| 0884531 | 0884531 | PLATE | |
| 0885011 | 0885011 | RING | |
| 4457308 | 4457308 | AXLE, REAR | |
| 0884426 | 0884426 | CAP | |
| 0884402 | 0884402 | NUT | |
| 0885003 | 0885003 | RING | |
| 0885004 | 0885004 | RING | |
| 0885005 | 0885005 | RING | |
| 0885006 | 0885006 | RING | |
| 0885007 | 0885007 | RING | |
| 0885008 | 0885008 | RING | |
| 0885009 | 0885009 | RING | |
| 0885010 | 0885010 | RING | |
| 0885012 | 0885012 | RING | |
| 0885013 | 0885013 | RING | |
| 0885014 | 0885014 | RING | |
| 0885015 | 0885015 | RING | |
| 0885016 | 0885016 | RING | |
| 0885017 | 0885017 | RING | |
| 0885018 | 0885018 | RING | |
| 0885019 | 0885019 | RING | |
| 0885020 | 0885020 | RING | |
| 0885021 | 0885021 | RING | |
| 0885022 | 0885022 | RING | |
| 10 | 0885001 | SEAL | |
| 30 | 0885002 | BRG., ROL | |
| 40 | RING | RING | |
| 50 | 0884515 | BRG., ROL | |
| 80 | 0885033 | HUB | |
| 90 | 0884517 | O-RING | |
| 120 | 0884518 | PLUG | |
| 130 | 0884519 | O-RING | |
| 150 | 0884520 | RING, RETAINING | |
| 160 | 0884521 | GEAR, RING | |
| 200 | 0884522 | PISTON | |
| 210 | 0884523 | URING | |
| 214 | 0884524 | RING | |
| 230 | 0884525 | RING | |
| 232 | 0884526 | SHIM | |
| 238 | 0884527 | SPRING, COMPRES. | |
| 248 | 0884528 | NUT, LOCK | |
| 256 | 0884529 | BOLT, SOCKET | |
| 258 | 0884530 | SLEEVE | |
| 260 | 0885034 | SEAL | |
| 270 | PLATE | PLATE | |
| 280 | 0884534 | PLATE, FRICTION | |
| 290 | 0884535 | SHIM | |
| 300 | 0884536 | RING, RETAINING | |
| 320 | 0884537 | WASHER, THRUST | |
| 340 | 0885035 | GEAR, SUN | |
| 344 | 0885036 | O-RING | |
| 350 | 0885037 | CARRIER | |
| 370 | 0884541 | RING, RETAINING | |
| 390 | 0884542 | CARRIER | |
| 400 | 0884543 | GEAR | |
| 410 | 0884544 | BRG., ROL | |
| 420 | 0884545 | RING | |
| 430 | 0884546 | RING, RETAINING | |
| 480 | WASHER | WASHER | |
| 500 | PLUG | PLUG | |
| 510 | 0884555 | BOLT, SOCKET | |
| 540 | 0884556 | HUBBOLT | |
| 550 | 0884557 | WASHER, SPRING | |
| 560 | 0884558 | RING | |
| 570 | 0884559 | HUBNUT | |
| 620 | PLUG | PLUG | |
| 710 | 0885038 | HUB | |
| 740 | 0885039 | PLUG | |
| 770 | 0885040 | BOLT, SOCKET | |
| 790 | 0885041 | O-RING | |
| 810 | 0885042 | PLATE | |
| 860 | 0884425 | VALVE |
