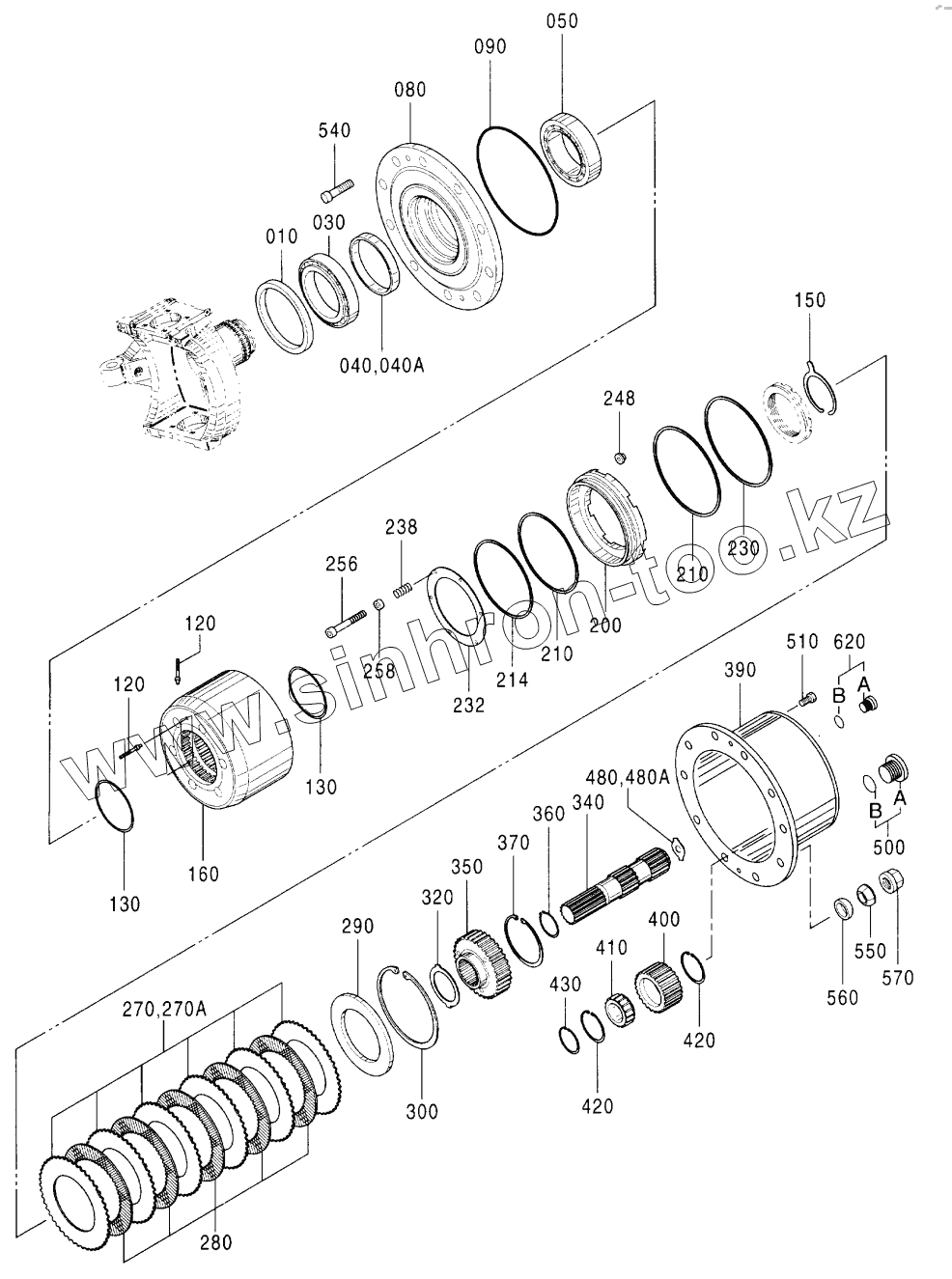

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. AXLE, FRONT (5) (WIDE)
0879636
0884560
0884348
0884554
0884547
4477075
0884531
0884503
10
30
40
50
80
90
120
120
130
130
150
160
200
210
210
214
230
232
238
248
256
258
270
280
290
300
320
340
350
360
370
390
400
410
420
420
430
480
500
510
540
550
560
570
620
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0884532 | 0884532 | PLATE | |
| 0879636 | 0879636 | O-RING | |
| 0884560 | 0884560 | PLUG | |
| 0884348 | 0884348 | O-RING | |
| 0884554 | 0884554 | PLUG | |
| 0884553 | 0884553 | WASHER, TURUST | |
| 0884552 | 0884552 | WASHER, TURUST | |
| 0884551 | 0884551 | WASHER, TURUST | |
| 0884550 | 0884550 | WASHER, TURUST | |
| 0884549 | 0884549 | WASHER, TURUST | |
| 0884548 | 0884548 | WASHER, TURUST | |
| 0884547 | 0884547 | WASHER, TURUST | |
| 0884533 | 0884533 | PLATE | |
| 4477075 | 4477075 | AXLE, FRONT | |
| 0884531 | 0884531 | PLATE | |
| 0884514 | 0884514 | RING | |
| 0884503 | 0884503 | RING | |
| 0834504 | 0834504 | RING | |
| 0884505 | 0884505 | RING | |
| 0884506 | 0884506 | RING | |
| 0884507 | 0884507 | RING | |
| 0884508 | 0884508 | RING | |
| 0884509 | 0884509 | RING | |
| 0884510 | 0884510 | RING | |
| 0884511 | 0884511 | RING | |
| 0884512 | 0884512 | RING | |
| 0884513 | 0884513 | RING | |
| 10 | 0884501 | SEAL | |
| 30 | 0884502 | BRG., ROL | |
| 40 | RING | RING | |
| 50 | 0884515 | BRG., ROL | |
| 80 | 0884516 | HUB | |
| 90 | 0884517 | O-RING | |
| 120 | 0884518 | PLUG | |
| 130 | 0884519 | O-RING | |
| 150 | 0884520 | RING, RETAINING | |
| 160 | 0884521 | GEAR, RING | |
| 200 | 0884522 | PISTON | |
| 210 | 0884523 | URING | |
| 214 | 0884524 | RING | |
| 230 | 0884525 | RING | |
| 232 | 0884526 | SHIM | |
| 238 | 0884527 | SPRING, COMPRES. | |
| 248 | 0884528 | NUT, LOCK | |
| 256 | 0884529 | BOLT, SOCKET | |
| 258 | 0884530 | SLEEVE | |
| 270 | PLATE | PLATE | |
| 280 | 0884534 | PLATE, FRICTION | |
| 290 | 0884535 | SHIM | |
| 300 | 0884536 | RING, RETAINING | |
| 320 | 0884537 | WASHER, THRUST | |
| 340 | 0884538 | GEAR, SUN | |
| 350 | 0884539 | CARRIER | |
| 360 | 0884540 | RING, RETAINING | |
| 370 | 0884541 | RING, RETAINING | |
| 390 | 0884542 | CARRIER | |
| 400 | 0884543 | GEAR | |
| 410 | 0884544 | BRG., ROL | |
| 420 | 0884545 | RING | |
| 430 | 0884546 | RING, RETAINING | |
| 480 | WASHER | WASHER | |
| 500 | PLUG | PLUG | |
| 510 | 0884555 | BOLT, SOCKET | |
| 540 | 0884556 | HUBBOLT | |
| 550 | 0884557 | WASHER, SPRING | |
| 560 | 0884558 | RING | |
| 570 | 0884559 | HUBNUT | |
| 620 | PLUG | PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
