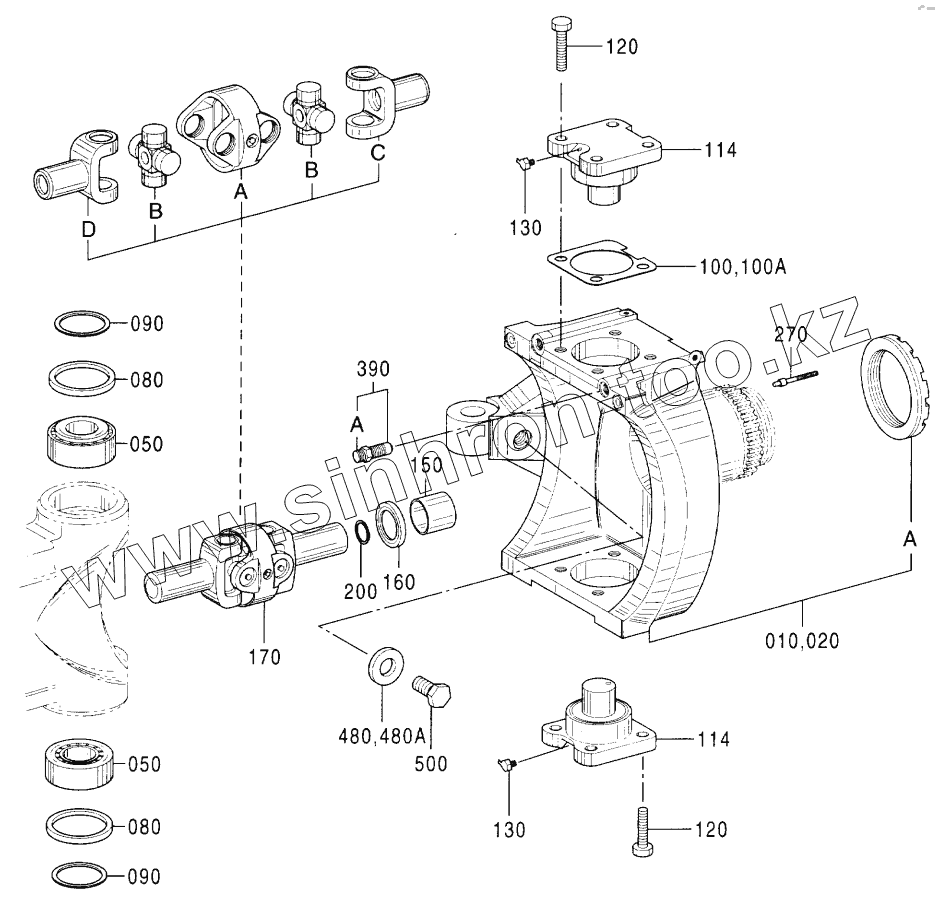

Каталог запасных частей к технике: Hitachi Компоненты ZX-160W. AXLE, FRONT (4)
0884426
0884427
0884423
0884422
0884421
0884421
0884420
0884407
0884402
0884402
4457307
10
20
50
50
80
80
90
90
100
114
114
120
120
130
130
150
160
170
200
270
390
480
500
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0884413 | 0884413 | SHIM | |
| 0884426 | 0884426 | CAP | |
| 0884427 | 0884427 | WASHER | |
| 0884428 | 0884428 | WASHER | |
| 0884423 | 0884423 | FORK | |
| 0884422 | 0884422 | FORK | |
| 0884421 | 0884421 | CROSS, JOINT | |
| 0884420 | 0884420 | PIECE | |
| 0884429 | 0884429 | WASHER | |
| 0884430 | 0884430 | WASHER | |
| 0884431 | 0884431 | WASHER | |
| 0884432 | 0884432 | WASHER | |
| 0884433 | 0884433 | WASHER | |
| 0884434 | 0884434 | WASHER | |
| 0884414 | 0884414 | SHIM | |
| 0884412 | 0884412 | SHIM | |
| 0884411 | 0884411 | SHIM | |
| 0884410 | 0884410 | SHIM | |
| 0884409 | 0884409 | SHIM | |
| 0384408 | 0384408 | SHIM | |
| 0884407 | 0884407 | SHIM | |
| 0884435 | 0884435 | WASHER | |
| 0884436 | 0884436 | WASHER | |
| 0884437 | 0884437 | WASHER | |
| 0884438 | 0884438 | WASHER | |
| 0884402 | 0884402 | NUT | |
| 0884439 | 0884439 | WASHER | |
| 0884402 | 0884402 | NUT | |
| 4457307 | 4457307 | AXLE, FR0NT | |
| 10 | 0884401 | HOUSING | |
| 20 | 0884403 | HOUSING | |
| 50 | 0884404 | BRG., ROL | |
| 80 | 0884405 | SEAL | |
| 90 | 0884406 | O-RING | |
| 100 | SHIM | SHIM | |
| 114 | 0884415 | PIN | |
| 120 | 0884416 | BOLT | |
| 130 | 0884417 | ELBOW | |
| 150 | 0884418 | BUSHING | |
| 160 | 0884352 | SEAL | |
| 170 | 0884419 | JOINT | |
| 200 | 0884350 | RING, RETAINING | |
| 270 | 0884424 | PLUG | |
| 390 | 0884425 | VALVE | |
| 480 | WASHER | WASHER | |
| 500 | 0884440 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
