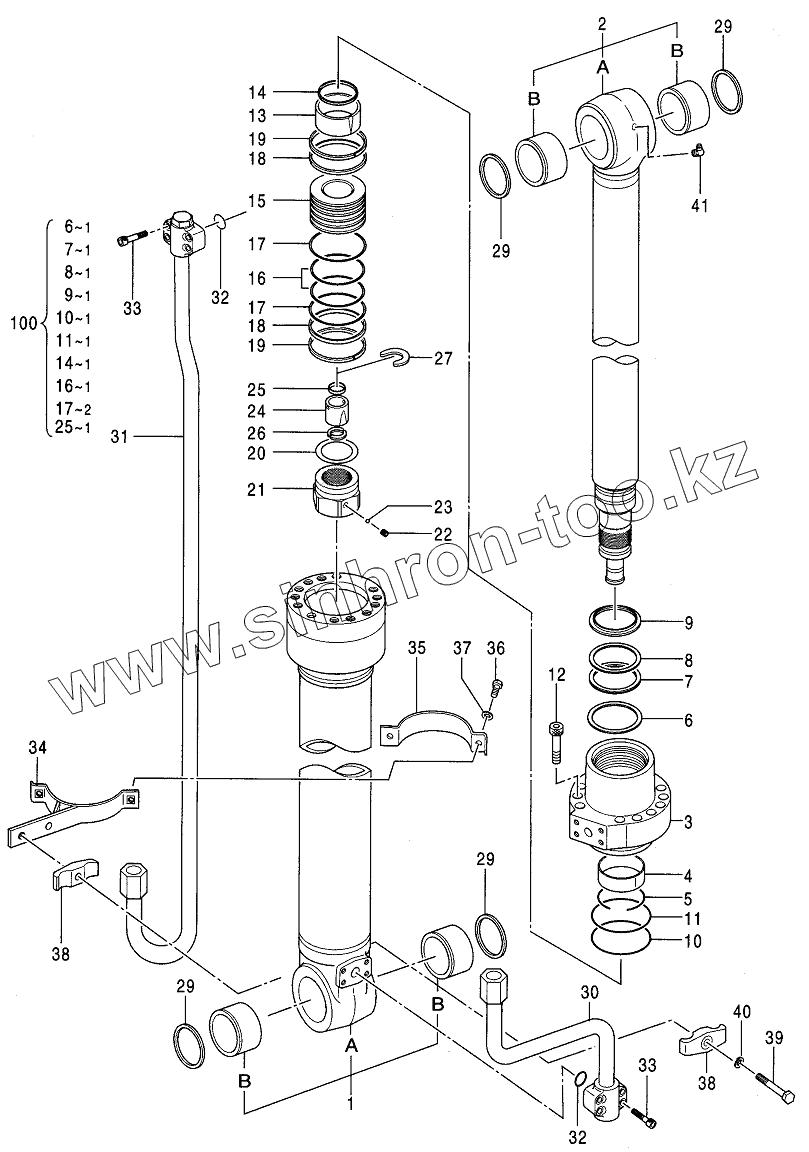

Каталог запасных частей к технике: Hitachi Компоненты ZX-120 (130). CYL., ARM (2P-B00M)
0903803
TUBE
4352400
4352400
4608256
4608256
ROD
4352400
4352400
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
24
25
25
26
27
29
29
29
29
30
31
32
32
33
33
34
35
36
37
38
38
39
40
41
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0903803 | 0903803 | KIT, BAND | |
| TUBE | TUBE | TUBE | |
| 4352400 | 4352400 | BUSHING | |
| 4608256 | 4608256 | CYL. , ARM | |
| ROD | ROD | ROD | |
| 4352400 | 4352400 | BUSHING | |
| 1 | 0903801 | TUBE, CYL. | |
| 2 | 0789503 | ROD, PISTON ASS'Y | |
| 3 | 0789205 | HEAD, CYL. | |
| 4 | 0309304 | BUSHING | |
| 5 | 0208604 | RING, RETAINING | |
| 6 | 0789206 | RING | |
| 7 | 0208605 | PACKING, U-RING | |
| 8 | 0208606 | RING, BACK-UP | |
| 9 | 0667006 | RING, WIPER | |
| 10 | А811110 | O-RING | |
| 11 | 0310904 | RING, BACK-UP | |
| 12 | 0409705 | BOLT, SOCKET | |
| 13 | 0409005 | BRG., CUSHION | |
| 14 | 0667007 | SEAL | |
| 15 | 0789505 | PISTON | |
| 16 | 0225614 | RING, SEAL | |
| 17 | 0496605 | RING, BACK-UP | |
| 18 | 0686405 | RING, SLIDE | |
| 19 | 0310908 | RING | |
| 20 | 0409010 | SHIM | |
| 21 | 0789506 | NUT | |
| 22 | 0309011 | SCREW, SET | |
| 23 | 0111707 | BALL, STEEL | |
| 24 | 0409012 | BRG., CUSHION | |
| 25 | 0667010 | SEAL | |
| 26 | 0409014 | STOPPER | |
| 27 | 0409015 | RING | |
| 29 | 0857404 | RING, WIPER | |
| 30 | 0882402 | PIPE | |
| 31 | 0903802 | PIPE | |
| 32 | 4506430 | O-RING | |
| 33 | 0309019 | BOLT, SOCKET | |
| 34 | 0903804 | BAND | |
| 35 | 0686409 | BAND | |
| 36 | 0408815 | BOLT | |
| 37 | 0325913 | WASHER | |
| 38 | 0236915 | HOLDER | |
| 39 | 0254312 | BOLT | |
| 40 | А590914 | WASHER, SPRING | |
| 41 | 0225709 | FITTING, GREASE | |
| 100 | 4448396 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
