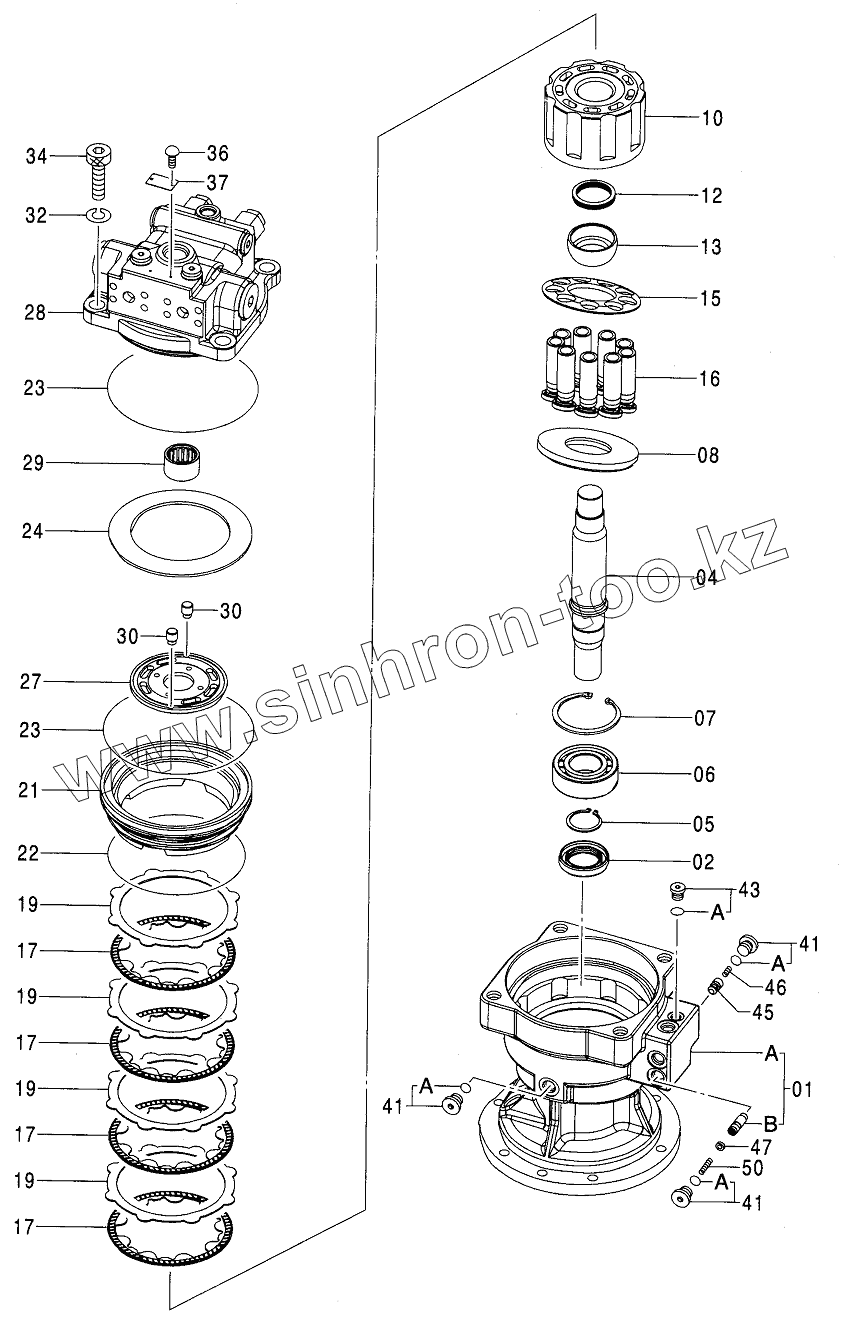

Каталог запасных частей к технике: Hitachi Компоненты ZX-110. MOTOR, OIL (SWING)
9196962
957366
957366
957366
4506408
9182929
PLUNGER
CASING
1
2
4
5
6
7
8
10
12
13
15
16
17
17
17
17
19
19
19
19
21
22
23
23
24
27
28
28
29
30
30
32
34
36
37
41
41
41
43
45
46
47
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9196962 | 9196962 | MOTOR, OIL | |
| 957366 | 957366 | O-RING | |
| 4506408 | 4506408 | O-RING | |
| 9182929 | 9182929 | MOTOR, OIL | |
| PLUNGER | PLUNGER | PLUNGER | |
| CASING | CASING | CASING | |
| 1 | 8081438 | CASING | |
| 2 | 4320490 | SEAL, OIL | |
| 4 | 3085794 | SHAFT | |
| 5 | 991342 | RING, RETAINING | |
| 6 | 4402669 | BRG., ROL | |
| 7 | 940144 | RING, RETAINING | |
| 8 | 4396102 | PLATE, SWASH | |
| 10 | 2043442 | ROTOR | |
| 12 | 4413753 | SPRING, D1SC | |
| 13 | 4413700 | BUSHING | |
| 15 | 3081727 | RETAINER | |
| 16 | 8071556 | PISTON | |
| 17 | 3087818 | PLATE, FRICTION | |
| 19 | 3075729 | PLATE | |
| 21 | 3084716 | PISTON | |
| 22 | 4413765 | O-RING | |
| 23 | 4413764 | O-RING | |
| 24 | 4434436 | SPRING, D1SC | |
| 27 | 3089613 | PLATE, VALVE | |
| 28 | 9182930 | VALVE, BRAKE | |
| 28 | 9200051 | VALVE, BRAKE | |
| 29 | 4413768 | BRG., NEEDLE | |
| 30 | 4413761 | PIN, KNOCK | |
| 32 | А590916 | WASHER, SPRING | |
| 34 | М341650 | BOLT, SOCKET | |
| 36 | М492564 | SCREW, DRIVE | |
| 37 | 3088887 | NAME-PLATE | |
| 41 | 9134110 | PLUG | |
| 43 | 9134109 | PLUG | |
| 45 | 4399892 | POPPET | |
| 46 | 4398846 | SPRING, COMPRES | |
| 47 | 4452178 | WASHER, PLANE | |
| 50 | 4398889 | SPRING, COMPRES |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
