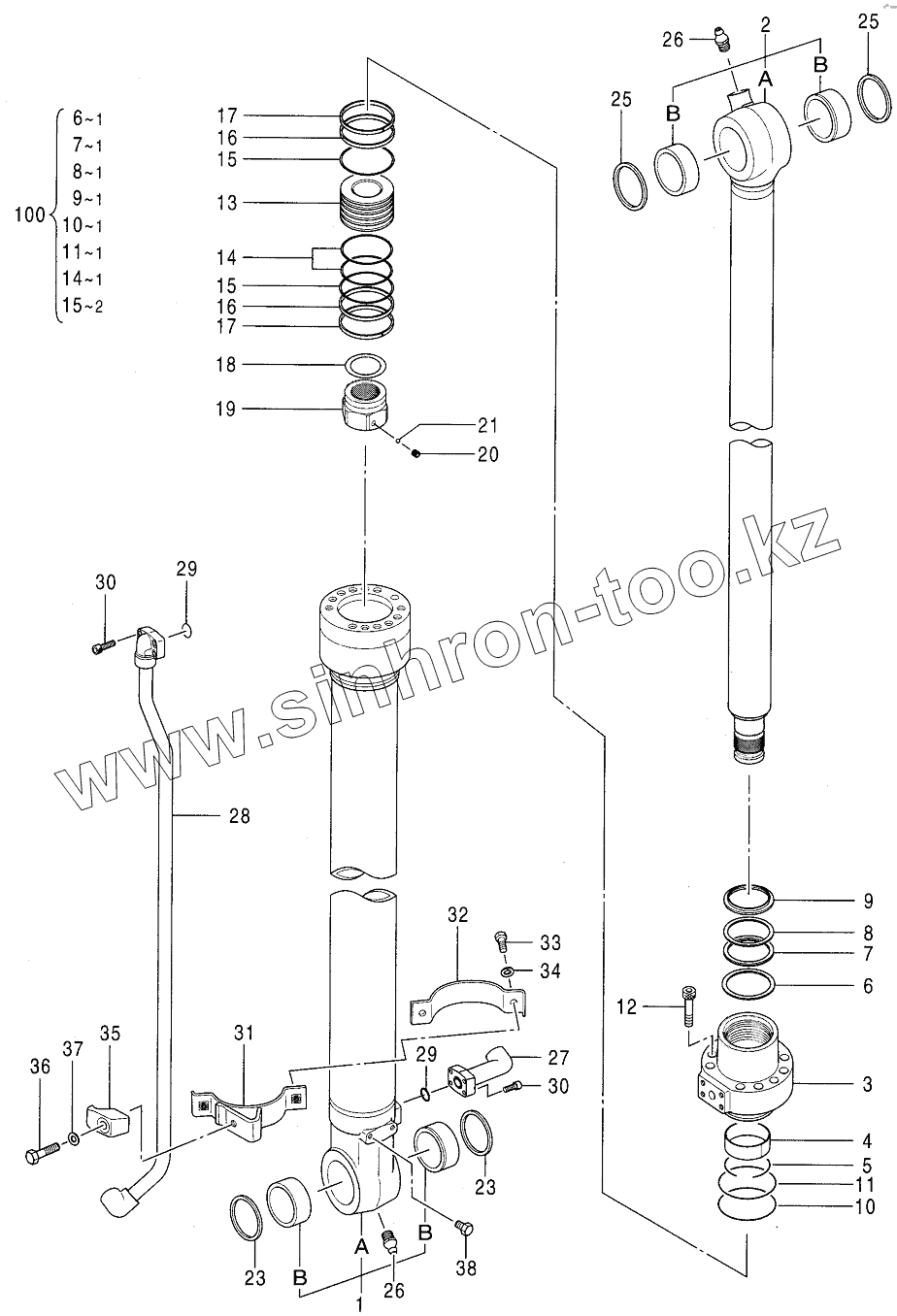

Каталог запасных частей к технике: Hitachi Компоненты ZX-110. CYL., BUCKET
0667112
0790002
4365897
4365897
4428441
0790004
4365448
4365448
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
15
15
16
16
17
17
18
19
20
21
23
23
25
25
26
26
27
28
28
29
29
30
30
31
32
33
34
35
36
37
38
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0667112 | 0667112 | KIT, BAND | |
| 0790002 | 0790002 | TUBE, CYL | |
| 4365897 | 4365897 | BUSHING | |
| 4428441 | 4428441 | CYL., BUCKET | |
| 0790004 | 0790004 | ROD, PISTON | |
| 4365448 | 4365448 | BUSHING | |
| 1 | 0790001 | TUBE, CYL ASS'Y | |
| 2 | 0790003 | ROD, PISTON ASS'Y | |
| 3 | 0790005 | HEAD, CYL. | |
| 4 | 0310604 | BUSHING | |
| 5 | 4510494 | RING, RETAINING | |
| 6 | 0790006 | RING | |
| 7 | 0225611 | PACKING, U-RING | |
| 8 | 0225612 | RING, BACK-UP | |
| 9 | 0409117 | RING, WIPER | |
| 10 | А811090 | O-RING | |
| 11 | 0310606 | RING, BACK-UP | |
| 12 | 0667107 | BOLT, SOCKET | |
| 13 | 0409106 | PISTON | |
| 14 | 0310608 | RING, SEAL | |
| 15 | 0409107 | RING, BUCK-UP | |
| 16 | 0667108 | RING, SLIDE | |
| 17 | 0310610 | RING, SLIDE | |
| 18 | 0326007 | SHIM | |
| 19 | 0789606 | NUT | |
| 20 | 0310612 | SCREW, SET | |
| 21 | 0111818 | BALL, STEEL | |
| 23 | 0409111 | RING, WIPER | |
| 25 | 0409112 | RING, WIPER | |
| 26 | J75481 | FITTING, GREASE | |
| 27 | 8086116 | PIPE | |
| 28 | 0667110 | PIPE | |
| 28 | 0790007 | PIPE | |
| 29 | 4509181 | O-RING | |
| 30 | М340825 | BOLT, SOCKET | |
| 31 | 0667111 | BAND | |
| 32 | 0409116 | BAND | |
| 33 | 0408815 | BOLT | |
| 34 | 0325913 | WASHER | |
| 35 | 0310616 | HOLDER | |
| 36 | 0309022 | BOLT | |
| 37 | 0208516 | WASHER, SPRING | |
| 38 | 0409110 | BOLT | |
| 100 | 4448394 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
