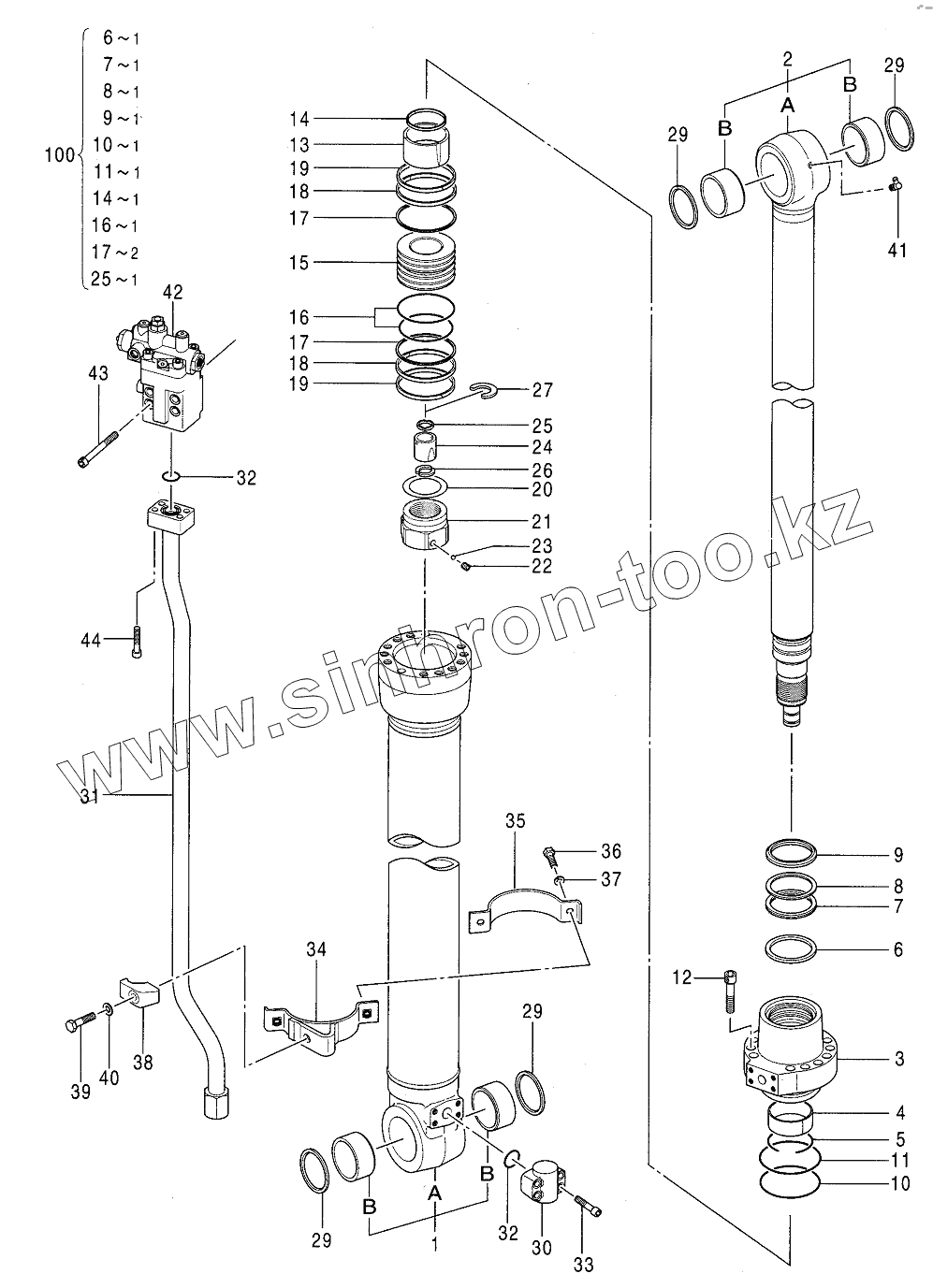

Каталог запасных частей к технике: Hitachi Компоненты ZX-110. CYL., ARM [WITH HOLDING VALVE]
0675109
0789902
4362025
4362025
4440716
0789904
4362025
4362025
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
24
25
25
26
27
29
29
29
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0675109 | 0675109 | KIT, BAND | |
| 0789902 | 0789902 | TUBE, CYL. | |
| 4362025 | 4362025 | BUSHING | |
| 4440716 | 4440716 | CYL., ARM | |
| 0789904 | 0789904 | ROD, PISTON | |
| 4362025 | 4362025 | BUSHING | |
| 1 | 0789901 | TUBE, CYL. ASS'Y | |
| 2 | 0789903 | ROD, PISTON ASS'Y | |
| 3 | 0789905 | HEAD, CYL | |
| 4 | 0310504 | BUSHING | |
| 5 | 0240904 | RING, RETAINING | |
| 6 | 0789906 | RING | |
| 7 | 0240911 | PACKING, U-RING | |
| 8 | 0240912 | RING, BACK-UP | |
| 9 | 0667504 | RING, WIPER | |
| 10 | А811100 | O-RING | |
| 11 | 0310506 | RING, BACK-UP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0409606 | BRG., CUSHION | |
| 14 | 0675106 | SEAL, CUSHION | |
| 15 | 0408808 | PISTION | |
| 16 | 0310508 | RING, SEAL | |
| 17 | 0408809 | RING, BACK-UP | |
| 18 | 0666808 | RING, SLIDE | |
| 19 | 0310510 | RING, SLIDE | |
| 20 | 0310514 | SHIM | |
| 21 | 0789307 | NUT | |
| 22 | 0309011 | SCREW, SET | |
| 23 | 0111707 | BALL, STEEL | |
| 24 | 0608003 | BRG, CUSHION | |
| 25 | 0667010 | SEAL | |
| 26 | 0409014 | STOPPER | |
| 27 | 0409609 | RING, RETAINING | |
| 29 | 0409112 | RING, WIPER | |
| 30 | 0409016 | JOINT | |
| 31 | 4440721 | PIPE | |
| 32 | 4506430 | O-RING | |
| 33 | 0309019 | BOLT, SOCKET | |
| 34 | 0675108 | BAND | |
| 35 | 0409612 | BAND | |
| 36 | 0408815 | BOLT | |
| 37 | 0325913 | WASHER | |
| 38 | 0309021 | HOLDER | |
| 39 | 0667013 | BOLT | |
| 40 | 0208516 | WASHER, SPRING | |
| 41 | 0159411 | FITTING, GREASE | |
| 42 | 4437715 | VALVE, HOLDING | |
| 43 | М341085 | BOLT, SOCKET | |
| 44 | М341045 | BOLT, SOCKET | |
| 100 | 4448393 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
