Каталог запасных частей к технике: Hitachi Компоненты ZAXIS 450, 470, 500, 520. PUMP, PISTON
1
5
05A
05B
05C
05D
05D
05E
05F
05F
05G
05H
05I
05J
05K
05L
05M
05N
05O
05P
11
11
011A
011A
011B
011B
13
013A
013B
14
014A
014B
30
30
030A
030A
030B
030B
41
041A
041B
041C
111
113
122
123
124
124
125
126
126
127
128
128
128
129
129
130
131
153
153
156
156
157
157
171
171
191
192
211
211
251
251
261
262
271
312
405
406
408
409
410
411
412
413
466
467
468
469
469
469
490
490
490
490
491
491
491
492
492
493
530
530
530A
530A
530B
530B
532
534
535
536
702
709
711
712
724
725
725
726
728
728
728
729
731
732
733
752
752
774
774
789
792
806
807
823
824
824
824
825
825
827
828
828
830
885
886
886
886
886
887
888
888
889
889
901
901
953
954
981
983

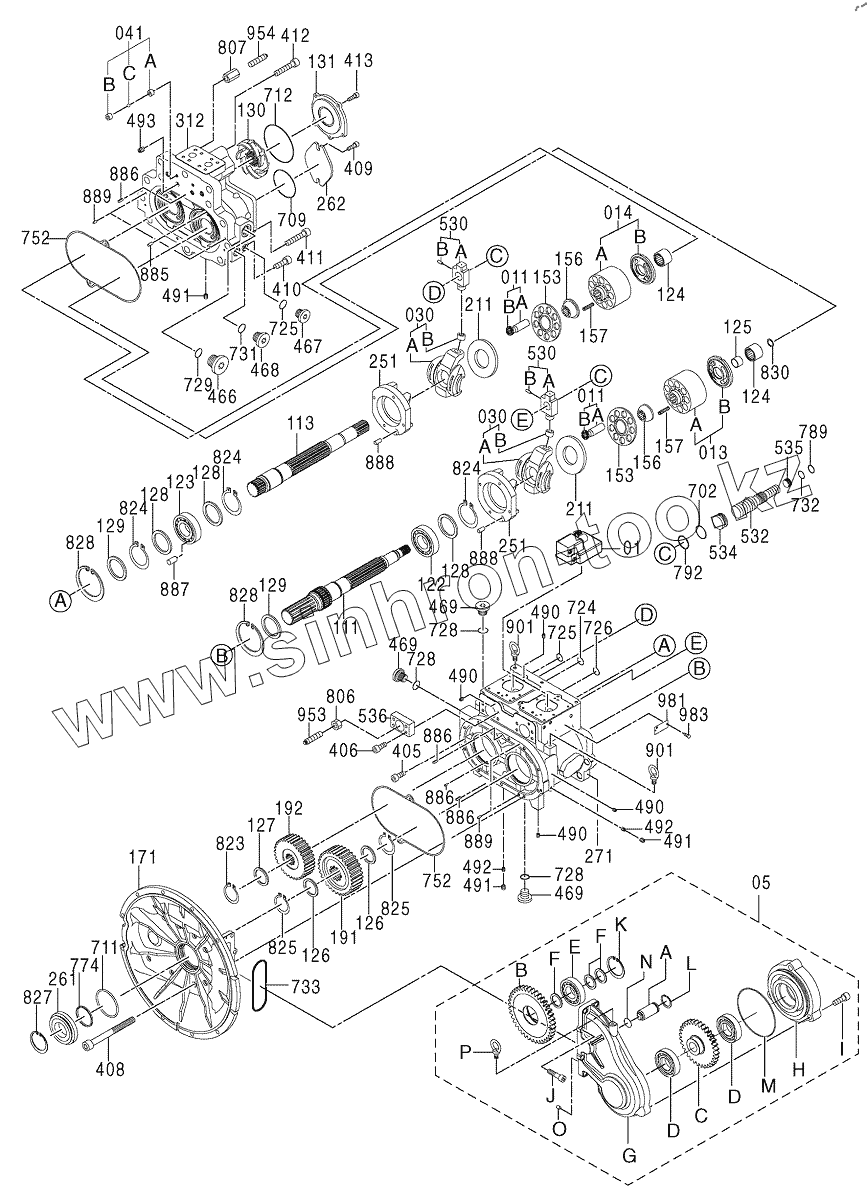

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4633472 | 4633472 | PUMP, PISTON | |
| 1 | 4658831 | REGULATOR, PUMP | |
| 5 | 4654554 | UNIT | |
| 05A | SHAFT | SHAFT | |
| 05B | GEAR | GEAR | |
| 05C | GEAR | GEAR | |
| 05D | 0978517 | BRG., BALL | |
| 05E | 0878107 | BRG.,ROL. | |
| 05F | 0818508 | SPACER | |
| 05G | CASE | CASE | |
| 05H | CASE, GEAR | CASE, GEAR | |
| 05I | 0195126 | BOLT, SOCKET | |
| 05J | M341236 | BOLT, SOCKET | |
| 05K | 0978512 | O-RING | |
| 05L | 0443404 | O-RING | |
| 05M | 988850 | RING, RETAINING | |
| 05N | 446751 | RING, RETAINING | |
| 05O | PIN | PIN | |
| 05P | 4091248 | BOLT, EYE | |
| 11 | 0820401 | PISTON ASSY | |
| 011A | PISTON | PISTON | |
| 011B | SHOE | SHOE | |
| 13 | 0820402 | CYL ASSY | |
| 013A | BLOCK, CYL. | BLOCK, CYL. | |
| 013B | PLATE, VALVE | PLATE, VALVE | |
| 14 | 0451003 | CYL. ASSY | |
| 014A | BLOCK, CYL. | BLOCK, CYL. | |
| 014B | PLATE, VALVE | PLATE, VALVE | |
| 30 | 0772701 | PLATE ASSY | |
| 030A | PLATE | PLATE | |
| 030B | BUSHING | BUSHING | |
| 41 | 0708004 | VALVE,CHECK ASS’Y | |
| 041A | SEAT | SEAT | |
| 041B | STOPPER | STOPPER | |
| 041C | BALL, STEEL | BALL, STEEL | |
| 111 | 0978501 | SHAFT | |
| 113 | 0820406 | SHAFT | |
| 122 | 0820407 | BRG., ROL | |
| 123 | 0820453 | BRG., ROL. | |
| 124 | 0978503 | BRG., NEEDLE | |
| 125 | 0978504 | RING, INNER | |
| 126 | 0820409 | SPACER | |
| 127 | 0820410 | SPACER | |
| 128 | 0820411 | SPACER | |
| 129 | 0820412 | SPACER | |
| 130 | 0978505 | BOOSTER | |
| 131 | 0820414 | COVER | |
| 153 | 0820415 | RETAINER | |
| 156 | 0820416 | BUSHING | |
| 157 | 0451016 | SPRING | |
| 171 | 0978518 | CASING | |
| 171 | 0978519 | CASING | |
| 191 | 0820418 | GEAR, DRIVE | |
| 192 | 0820419 | GEAR | |
| 211 | 0451018 | PLATE | |
| 251 | 0820420 | SUPPORT | |
| 261 | 0978507 | COVER | |
| 262 | 0820422 | COVER | |
| 271 | 0978508 | CASING | |
| 312 | 0978509 | COVER | |
| 405 | 0978510 | BOLT, SOCKET | |
| 406 | M341236 | BOLT, SOCKET | |
| 408 | 0131103 | BOLT, SOCKET | |
| 409 | 0820425 | BOLT, SOCKET | |
| 410 | 0820426 | BOLT, SOCKET | |
| 411 | 0820427 | BOLT, SOCKET | |
| 412 | 0820428 | BOLT, SOCKET | |
| 413 | M341025 | BOLT, SOCKET | |
| 466 | 0978511 | PLUG | |
| 467 | 0629404 | PLUG | |
| 468 | 0626901 | PLUG | |
| 469 | 0697911 | PLUG | |
| 490 | 0263019 | PLUG | |
| 491 | 0451028 | PLUG | |
| 492 | 0451027 | SCREW | |
| 493 | 0102440 | PLUG | |
| 530 | 0820438 | PIN ASSY | |
| 530A | PIN | PIN | |
| 530B | PIN | PIN | |
| 532 | 0820429 | PISTON, SERVO | |
| 534 | 0451031 | STOPPER | |
| 535 | 0820430 | STOPPER | |
| 536 | 0820431 | COVER | |
| 702 | 0451033 | O-RING | |
| 709 | 0694604 | O-RING | |
| 711 | 0820432 | O-RING | |
| 712 | 0820433 | O-RING | |
| 724 | 0443801 | O-RING | |
| 725 | 4297379 | O-RING | |
| 726 | 0443405 | O-RING | |
| 728 | 0443408 | O-RING | |
| 729 | 0719402 | O-RING | |
| 731 | 0443407 | O-RING | |
| 732 | 0451035 | O-RING | |
| 733 | 0978512 | O-RING | |
| 752 | 0820439 | PACKING | |
| 774 | 0820443 | SEAL, OIL | |
| 774 | 0978520 | SEAL, OIL | |
| 789 | 0451036 | RING, BACK-UP | |
| 792 | 0451037 | RING, BACK-UP | |
| 806 | 0451038 | NUT | |
| 807 | 0820434 | NUT | |
| 823 | 959499 | RING, RETAINING | |
| 824 | 991345 | RING | |
| 825 | 488075 | RING, RETAINING | |
| 827 | 991728 | RING, RETAINING | |
| 828 | 0820435 | RING, RETAINING | |
| 830 | 0978513 | RING, RETAINING | |
| 885 | 0313404 | PIN | |
| 886 | 0244604 | PIN, SPRING | |
| 887 | 0175240 | PIN | |
| 888 | 0978514 | PIN | |
| 889 | 0978515 | PIN | |
| 901 | 0134458 | BOLT, EYE | |
| 953 | 0978516 | SCREW, SET | |
| 954 | 0682328 | SCREW, SET | |
| 981 | PLATE | PLATE | |
| 983 | 0625509 | PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
