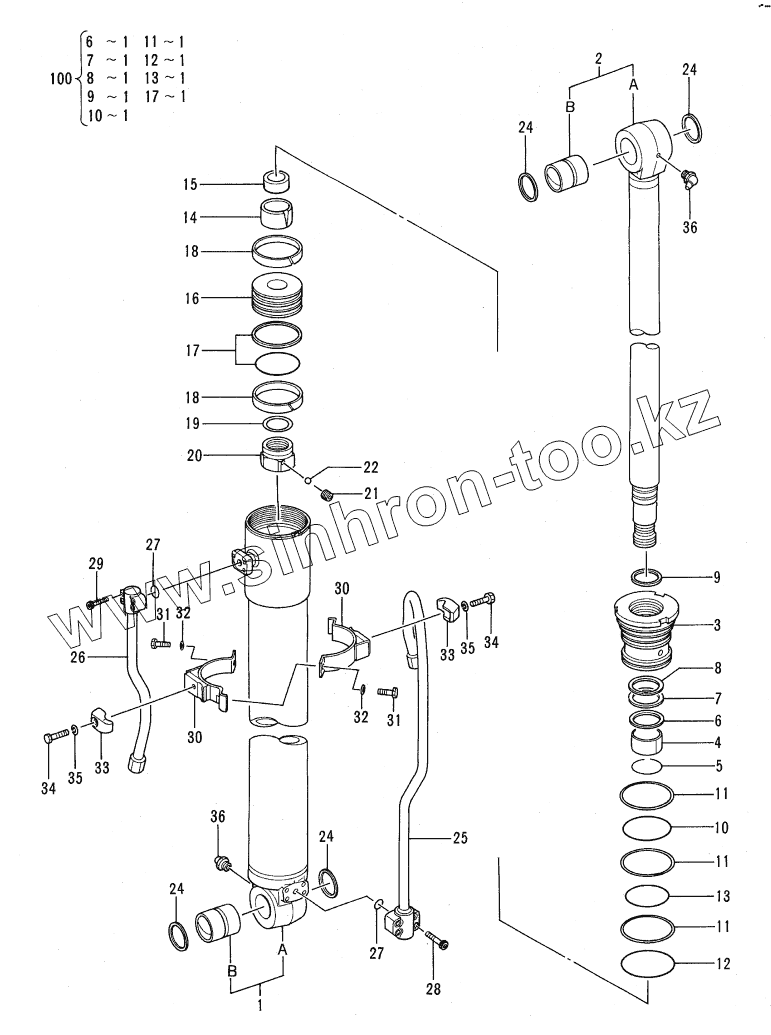

Каталог запасных частей к технике: Hitachi Компоненты EX-60-3. BOOM CYLINDER <SHORT REACH>
1
1A
1B
2
2A
2B
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
13
13
14
15
16
17
17
18
18
19
20
21
22
24
24
24
24
25
26
27
27
28
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4317387 | 4317387 | CYL. BOOM | |
| 1 | 498201 | TUBE CYL | |
| 1A | 498202 | TUBE CYL | |
| 1B | 444603 | BUSHING PIN | |
| 2 | 498203 | ROD PISTON | |
| 2A | 498204 | ROD PISTON | |
| 2B | 444603 | BUSHING PIN | |
| 3 | 444606 | HEAD CYL | |
| 4 | 444607 | BUSHING | |
| 5 | 4510494 | RING, RETAINING | |
| 6 | 225613 | RING SEAL | |
| 7 | 225611 | PACKING U-RING | |
| 8 | 225612 | RING BACK-UP | |
| 9 | 498205 | RING WIPER | |
| 10 | A811110 | O-RING | |
| 11 | 310904 | RING BACK-UP | |
| 12 | A810115 | O-RING | |
| 13 | A811105 | O-RING | |
| 14 | 396105 | BRG CUSHION | |
| 15 | 444608 | SEAL CUSHION | |
| 16 | 330906 | PISTON | |
| 17 | 225614 | RINGSEAL | |
| 18 | 225620 | RING | |
| 19 | 326007 | SHIM | |
| 20 | 409108 | NUT | |
| 21 | 310612 | SCREW SET | |
| 22 | 111818 | BALL STEEL | |
| 24 | 444609 | RING WIPER | |
| 25 | 498206 | PIPE | |
| 26 | 498207 | PIPE | |
| 27 | 4509181 | O-RING | |
| 28 | 158855 | BOLT SOCKET | |
| 29 | M340825 | BOLT, SOCKET | |
| 30 | 444612 | BAND | |
| 31 | 408815 | BOLT | |
| 32 | 325913 | WASHER | |
| 33 | 310616 | HOLDER | |
| 34 | 259509 | BOLT | |
| 35 | 208516 | WASHER SPRING | |
| 36 | J75581 | FITTING, GREASE | |
| 100 | 4324883 | KITSEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
