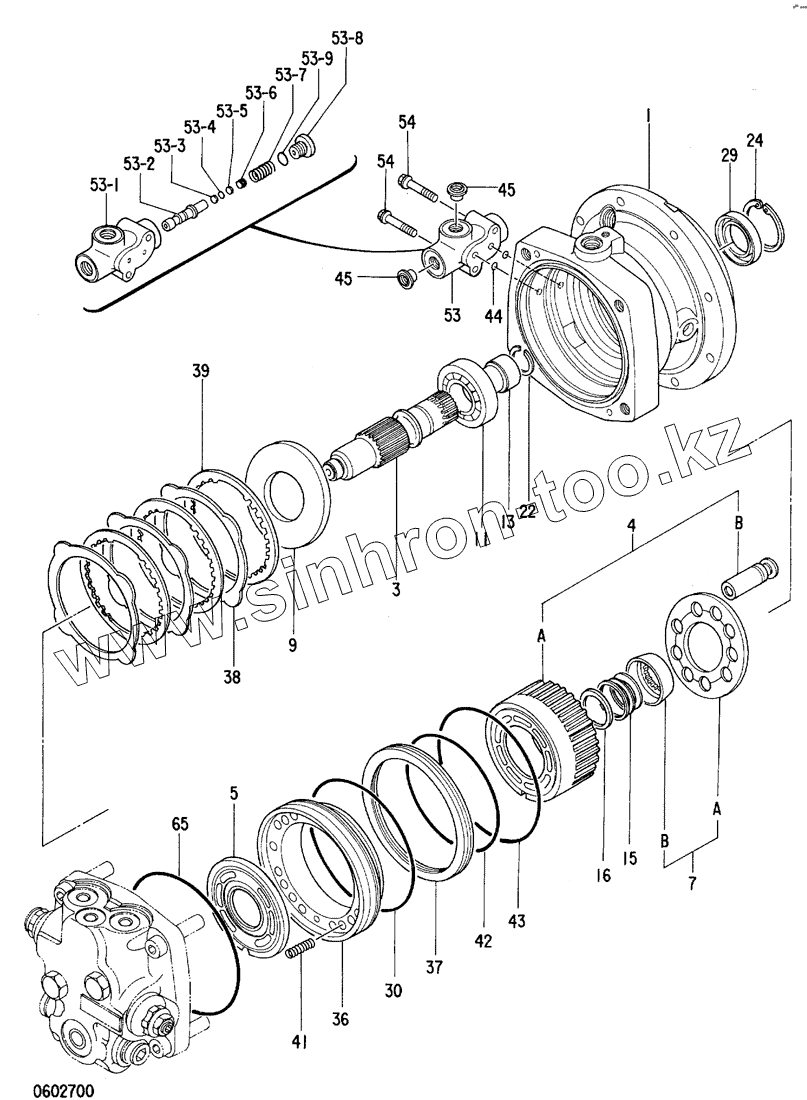

Каталог запасных частей к технике: Hitachi Компоненты EX-60-2. MOTOR OIL (2/2) 4325475
BODYVALVE
VALVE
311326
BLOCKCYL
PISTON
444215
444216
PLATE
HOLDER
444217
602701
311336
4509180
4325475
1
3
4
5
7
9
11
13
15
16
22
24
29
30
36
37
38
39
41
42
43
44
45
45
53
54
54
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| BODYVALVE | BODYVALVE | BODY VALVE | |
| VALVE | VALVE | BODY, VALVE | |
| 311326 | 311326 | FILTER | |
| BLOCKCYL | BLOCKCYL | BLOCK CYL | |
| PISTON | PISTON | PISTON | |
| 444215 | 444215 | WASHER | |
| 444216 | 444216 | ORIFICE | |
| PLATE | PLATE | PLATE | |
| HOLDER | HOLDER | HOLDER | |
| 444217 | 444217 | ORIFICE | |
| 602701 | 602701 | SPRING | |
| 311336 | 311336 | PLUG | |
| 4509180 | 4509180 | O-RING | |
| 4325475 | 4325475 | MOTOR OIL | |
| 1 | 444201 | CASE | |
| 3 | 444202 | SHAFT | |
| 4 | 444203 | BLOCK CYL | |
| 5 | 444204 | PLATE VALVE | |
| 7 | 444205 | PLATE | |
| 9 | 444206 | PLATE THRUST | |
| 11 | 444207 | BRG BALL | |
| 13 | 444208 | RACE INNER | |
| 15 | 329612 | SPRING | |
| 16 | 329613 | SEAT SPRING | |
| 22 | 311316 | RING RETAINING | |
| 24 | 930451 | RING, RETAINING | |
| 29 | 433905 | SEAL OIL | |
| 30 | A811145 | O-RING | |
| 36 | 444209 | PISTON | |
| 37 | 444210 | COLLAR | |
| 38 | 444211 | PLATE FRICTION | |
| 39 | 444212 | PLATE DISK | |
| 41 | 444213 | SPRING | |
| 42 | A811125 | O-RING | |
| 43 | A811135 | O-RING | |
| 44 | 4506407 | O-RING | |
| 45 | PLUG | PLUG | |
| 53 | 444214 | VALVE | |
| 54 | 444219 | BOLT SOCKET | |
| 65 | 234115 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
