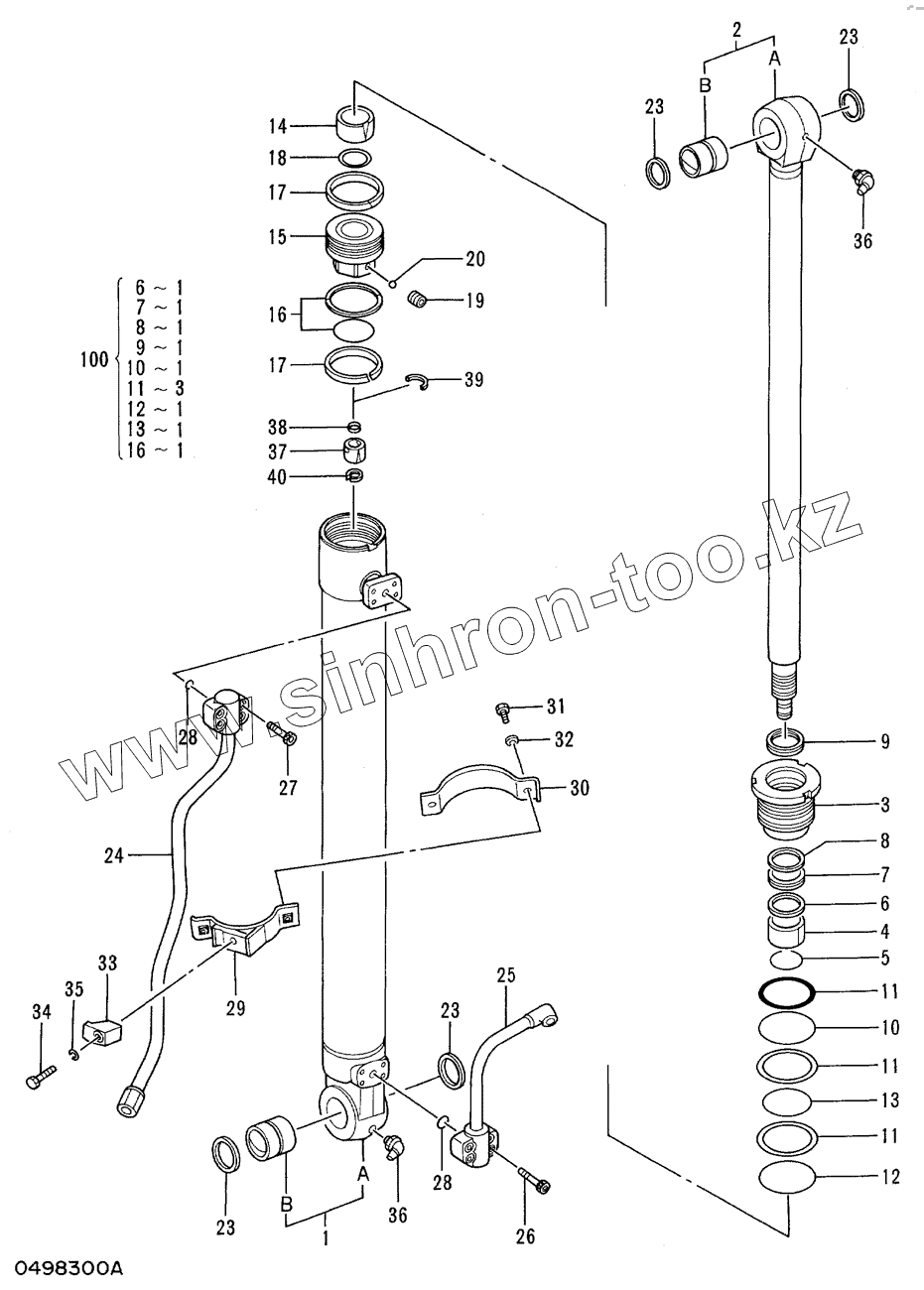

Каталог запасных частей к технике: Hitachi Компоненты EX-60-2. CYL. ARM (SHORT REACH) 4317388
4317388
498313
498303
396102
498315
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
13
13
14
15
16
16
17
17
18
19
20
23
23
23
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
36
37
38
39
40
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4317388 | 4317388 | CYL. ARM | |
| 498313 | 498313 | TUBE CYL | |
| 498303 | 498303 | BUSHINGPIN | |
| 396102 | 396102 | BUSHING | |
| 498315 | 498315 | ROD PISTON | |
| 1 | 498312 | TUBE CYL | |
| 2 | 498314 | ROD PISTON | |
| 3 | 498306 | HEAD CYL | |
| 4 | 444706 | BUSHING | |
| 5 | 225704 | RING RETAINING | |
| 6 | 225714 | RING | |
| 7 | 225711 | PACKING U-RING | |
| 8 | 225712 | RING BACK-UP | |
| 9 | 498307 | RING WIPER | |
| 10 | A811095 | O-RING | |
| 11 | 254905 | RING BACK-UP | |
| 12 | A810100 | O-RING | |
| 13 | A811090 | O-RING | |
| 14 | 498308 | BRG CUSHION | |
| 15 | 498309 | PISTON | |
| 16 | 240807 | RINGSEAL ASS'Y | |
| 17 | 225717 | RING | |
| 18 | 333008 | SHIM | |
| 19 | 310612 | SCREW SET | |
| 20 | 111818 | BALL STEEL | |
| 23 | 444609 | RING WIPER | |
| 24 | 498310 | PIPE | |
| 25 | 498311 | PIPE | |
| 26 | 158855 | BOLT SOCKET | |
| 27 | M340825 | BOLT, SOCKET | |
| 28 | 4509181 | O-RING | |
| 29 | 409115 | BAND | |
| 30 | 409116 | BAND | |
| 31 | 408815 | BOLT | |
| 32 | 325913 | WASHER | |
| 33 | 310616 | HOLDER | |
| 34 | 259509 | BOLT | |
| 35 | 208516 | WASHER SPRING | |
| 36 | J75581 | FITTING, GREASE | |
| 37 | 444708 | BRG CUSHION | |
| 38 | 444709 | SEAL CUSHION | |
| 39 | 444710 | RING RETAINING | |
| 40 | 396211 | STOPPER | |
| 100 | 4324884 | KITSEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
