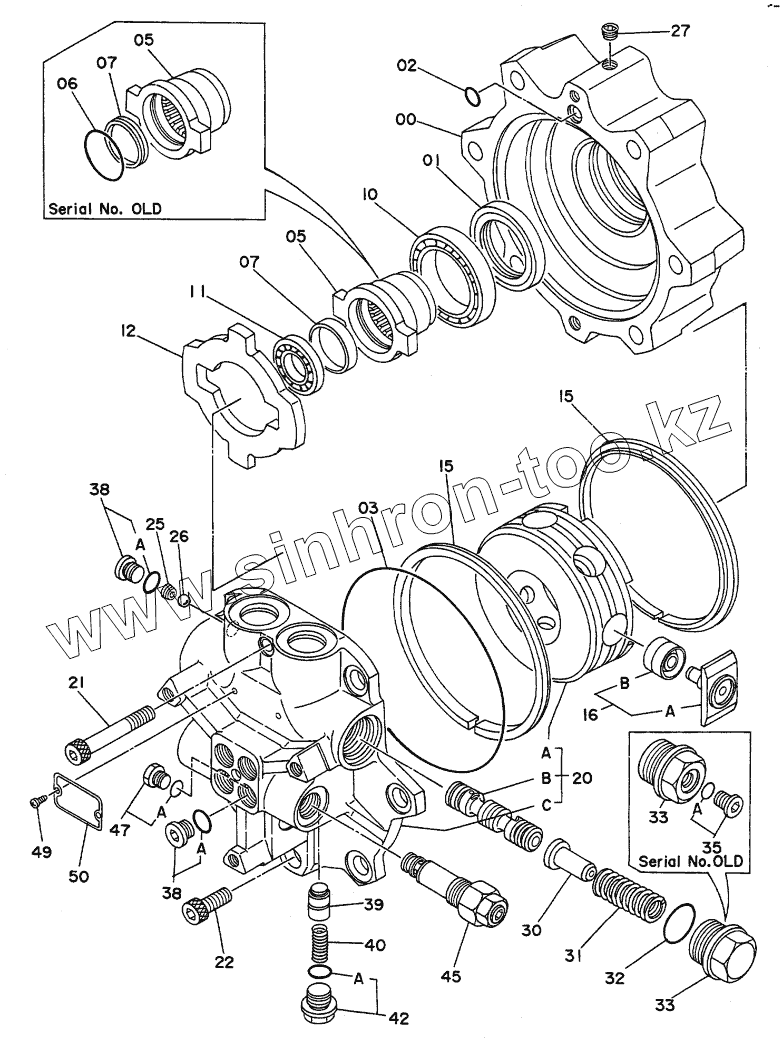

Каталог запасных частей к технике: Hitachi Компоненты EX-60. MOTOR, OIL (TRAVEL)
2023150
4506408
957366
957366
4506418
4509180
9069509
1011854
3036353
3036354
9722265
3027417
1
2
3
5
5
5
6
7
7
7
10
11
12
15
15
16
20
21
22
25
26
27
30
31
32
33
33
33
35
35
38
38
39
40
42
42
45
45
47
47
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2023150 | 2023150 | CASING, FRONT | |
| 4506408 | 4506408 | O-RING | |
| 957366 | 957366 | O-RING | |
| 4506418 | 4506418 | O-RING | |
| 4509180 | 4509180 | O-RING | |
| 9069509 | 9069509 | MOTOR, OIL | |
| 1011854 | 1011854 | CASING, REAR | |
| 3036353 | 3036353 | SPOOL | |
| 3036354 | 3036354 | ROTOR | |
| 9722265 | 9722265 | JOINT, BALL | |
| 3027417 | 3027417 | PISTON | |
| 1 | 4176022 | SEAL, OIL | |
| 2 | 957366 | O-RING | |
| 3 | 4154877 | O-RING | |
| 5 | 3049931 | COUPLING | |
| 5 | 3036356 | COUPLING | |
| 6 | A810040 | O-RING | |
| 7 | 4252672 | CAP | |
| 7 | 4193403 | CAP | |
| 10 | 4193402 | BRG., BALL | |
| 11 | 4193401 | BRG., BALL | |
| 12 | 4175921 | JOINT | |
| 15 | 4137815 | RING, GUIDE | |
| 16 | 9086054 | PISTON ASSY | |
| 20 | 9069491 | CASING ASSY | |
| 21 | M341056 | BOLT, SOCKET | |
| 22 | M341020 | BOLT, SOCKET | |
| 25 | 4193400 | PLUG | |
| 26 | 4509493 | BALL | |
| 27 | 94-2010 | PLUG | |
| 30 | 4154878 | STOPPER | |
| 31 | 4193377 | SPRING, COMPRES. | |
| 32 | 4506429 | O-RING | |
| 33 | 4229631 | PLUG | |
| 33 | 4193378 | PLUG | |
| 35 | 4147553 | PLUG | |
| 35 | 9089484 | PLUG | |
| 38 | 9089485 | PLUG | |
| 39 | 4193379 | POPPET | |
| 40 | 4193376 | SPRING, COMPRES. | |
| 42 | 4154884 | PLUG | |
| 42 | 9089487 | PLUG | |
| 45 | 9069460 | VALVE, RELIEF | |
| 45 | 9096565 | VALVE, RELIEF | |
| 47 | 4092534 | PLUG | |
| 47 | 9089486 | PLUG | |
| 49 | M492564 | SCREW, DRIVE | |
| 50 | 3039529 | NAME-PLATE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
