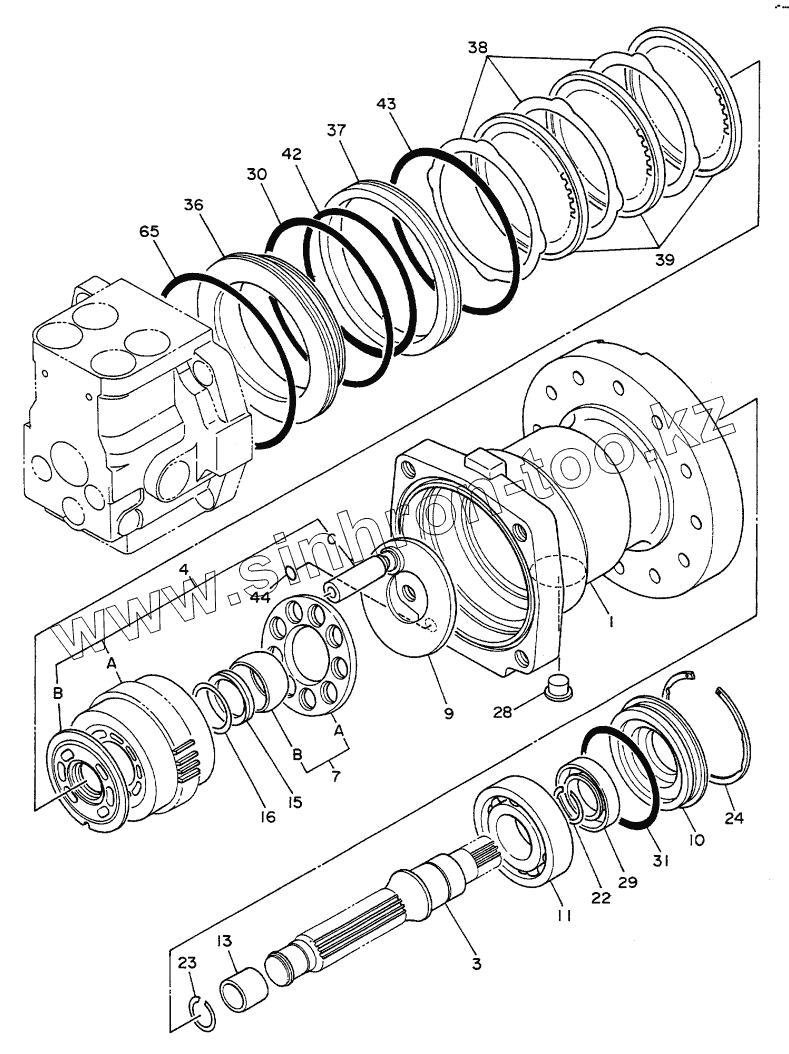

Каталог запасных частей к технике: Hitachi Компоненты EX-60. MOTOR, OIL (1/2)
BLOCK
PLATE
PISTON
PLATE
HOLDER
4224977
1
3
4
7
9
10
11
13
15
16
22
23
24
28
29
30
31
36
37
38
39
42
43
44
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| BLOCK | BLOCK | JUNCTION BLOCK | |
| PLATE | PLATE | PLATE | |
| PISTON | PISTON | PISTON | |
| PLATE | PLATE | PLATE | |
| HOLDER | HOLDER | HOLDER | |
| 4224977 | 4224977 | MOTOR, OIL | |
| 1 | 0356601 | CASE | |
| 3 | 0329603 | SHAFT | |
| 4 | 0329604 | BLOCK, CYL. ASSY | |
| 7 | 0329605 | PLATE ASSY | |
| 9 | 0329606 | PLATE, THRUST | |
| 10 | 0329607 | CASE | |
| 11 | 0329608 | BRG., BALL | |
| 13 | 0329610 | RACE, INNER | |
| 15 | 0329612 | SPRING | |
| 16 | 0329613 | SEAT, SPRING | |
| 22 | 0329614 | RING, RETAINING | |
| 23 | 0329615 | RING, RETAINING | |
| 24 | 0329616 | RING, RETAINING | |
| 28 | PLUG | PLUG | |
| 29 | 0158821 | SEAL, OIL | |
| 30 | 0329617 | O-RING | |
| 31 | A811090 | O-RING | |
| 36 | 0329618 | PISTON | |
| 37 | 0329619 | COLLAR | |
| 38 | 0329620 | PLATE, FRICTION | |
| 39 | 0329621 | PLATE, DISK | |
| 42 | 0310015 | O-RING | |
| 43 | 0329623 | O-RING | |
| 44 | 4506320 | O-RING | |
| 65 | 0329624 | O-RING |
