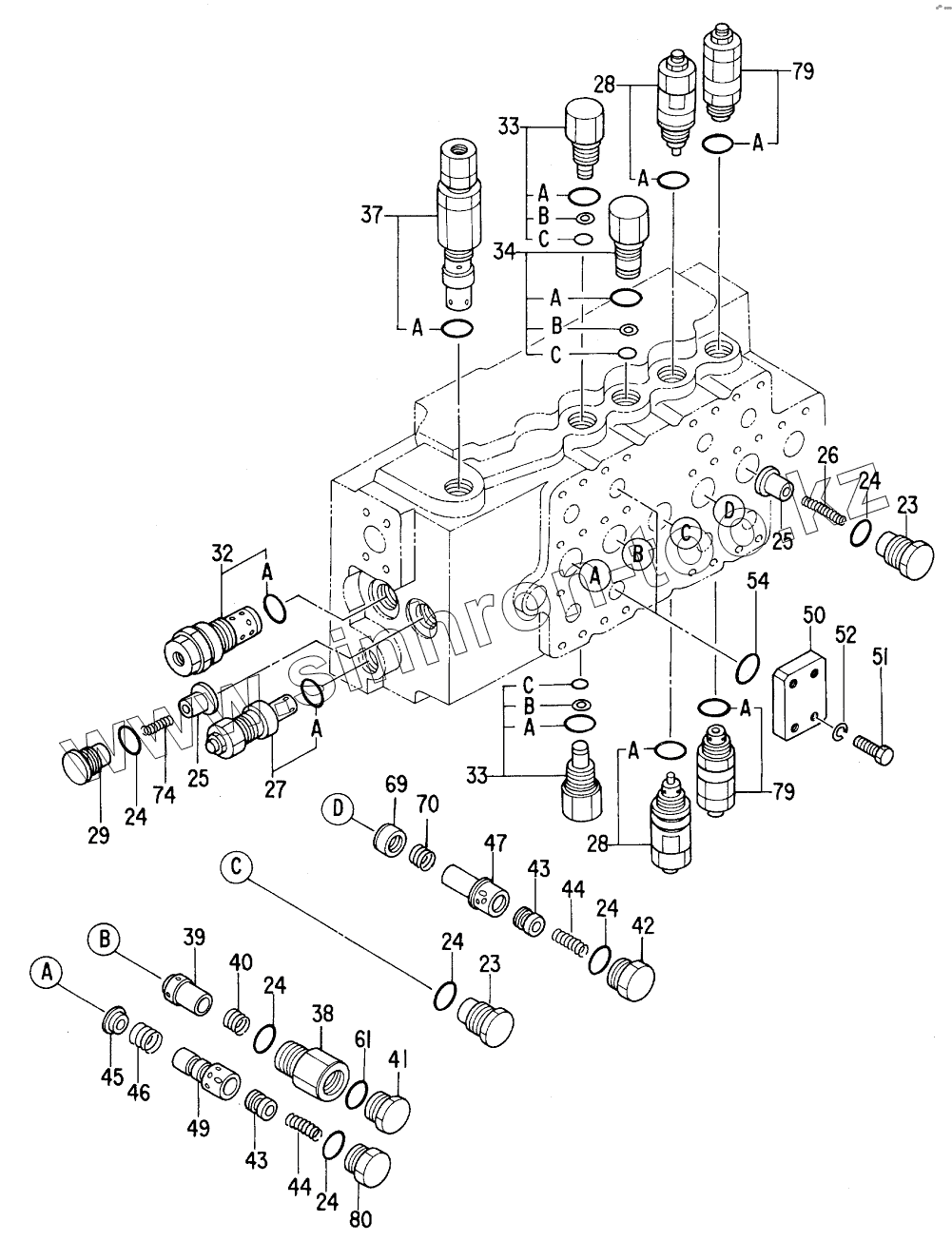

Каталог запасных частей к технике: Hitachi Компоненты EX-300-2. CONTROL VALVE (2/4)
23
23
24
24
24
24
24
24
25
25
25
25
25
26
27
27A
28
28
28A
28A
29
32
32A
33
33
33A
33A
33B
33B
33C
33C
34
34A
34B
34C
37
37A
38
39
40
41
42
42
42
43
43
44
44
45
45
45
45
45
45
45
45
45
46
46
46
46
46
46
46
46
46
47
49
49
49
49
49
49
49
49
49
50
51
52
54
61
69
70
74
79
79
79A
79A
80
80
80
80
80
80
80
80
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4314749 | 4314749 | VALVE, CONTROL | |
| 23 | 496301 | PLUG | |
| 24 | 111715 | O-RING | |
| 25 | 459531 | POPPET | |
| 25 | 496312 | POPPET | |
| 26 | 459532 | SPRING | |
| 27 | 4228355 | VALVE, RELIEF | |
| 27A | 4257232 | O-RING | |
| 28 | 4324534 | VALVE, RELIEF | |
| 28A | 4257232 | O-RING | |
| 29 | 496302 | PLUG | |
| 32 | 309709 | VALVE, RELIEF | |
| 32A | 111715 | O-RING | |
| 33 | 309710 | PLUG ASS'Y | |
| 33A | O-RING | O-RING | |
| 4257233 | 4257233 | KIT, SEAL | |
| 33B | RING,BACK-UP | RING, BACK-UP | |
| 33C | O-RING | O-RING | |
| 34 | 309711 | PLUG ASS'Y | |
| 34A | O-RING | O-RING | |
| 4257234 | 4257234 | КIТ, SЕАL | |
| 34B | RING,BACK-UP | RING, BACK-UP | |
| 34C | O-RING | O-RING | |
| 37 | 4324535 | VALVE, RELIEF | |
| 37A | 4257232 | O-RING | |
| 38 | 496303 | PLUG | |
| 39 | 496304 | POPPET | |
| 40 | 496305 | SPRING | |
| 41 | 309716 | PLUG | |
| 42 | 496306 | PLUG | |
| 42 | 496318 | PLUG | |
| 43 | 125107 | POPPET | |
| 44 | 125108 | SPRING | |
| 45 | 496308 | POPPET | |
| 45 | 496308 | POPPET | |
| 45 | 496308 | POPPET | |
| 45 | 496308 | POPPET | |
| 45 | 496316 | POPPET | |
| 46 | 309719 | SPRING | |
| 46 | 309719 | SPRING | |
| 46 | 309719 | SPRING | |
| 46 | 309719 | SPRING | |
| 46 | 4237927 | SPRING | |
| 47 | 496309 | SLEEVE | |
| 49 | 309721 | SLEEVE | |
| 49 | 309721 | SLEEVE | |
| 49 | 309721 | SLEEVE | |
| 49 | 309721 | SLEEVE | |
| 49 | 496317 | SLEEVE | |
| 50 | 309733 | PLATE | |
| 51 | 224423 | BOLT | |
| 52 | A590910 | WASHER, SPRING | |
| 54 | 224422 | O-RING | |
| 61 | 4506424 | O-RING | |
| 69 | 496311 | POPPET | |
| 70 | 4237927 | SPRING | |
| 74 | 309728 | SPRING | |
| 79 | 4228354 | VALVE, RELIEF | |
| 79A | 4257232 | O-RING | |
| 80 | 309717 | PLUG | |
| 80 | 309717 | PLUG | |
| 80 | 309717 | PLUG | |
| 80 | 309717 | PLUG | |
| 80 | 496318 | PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
