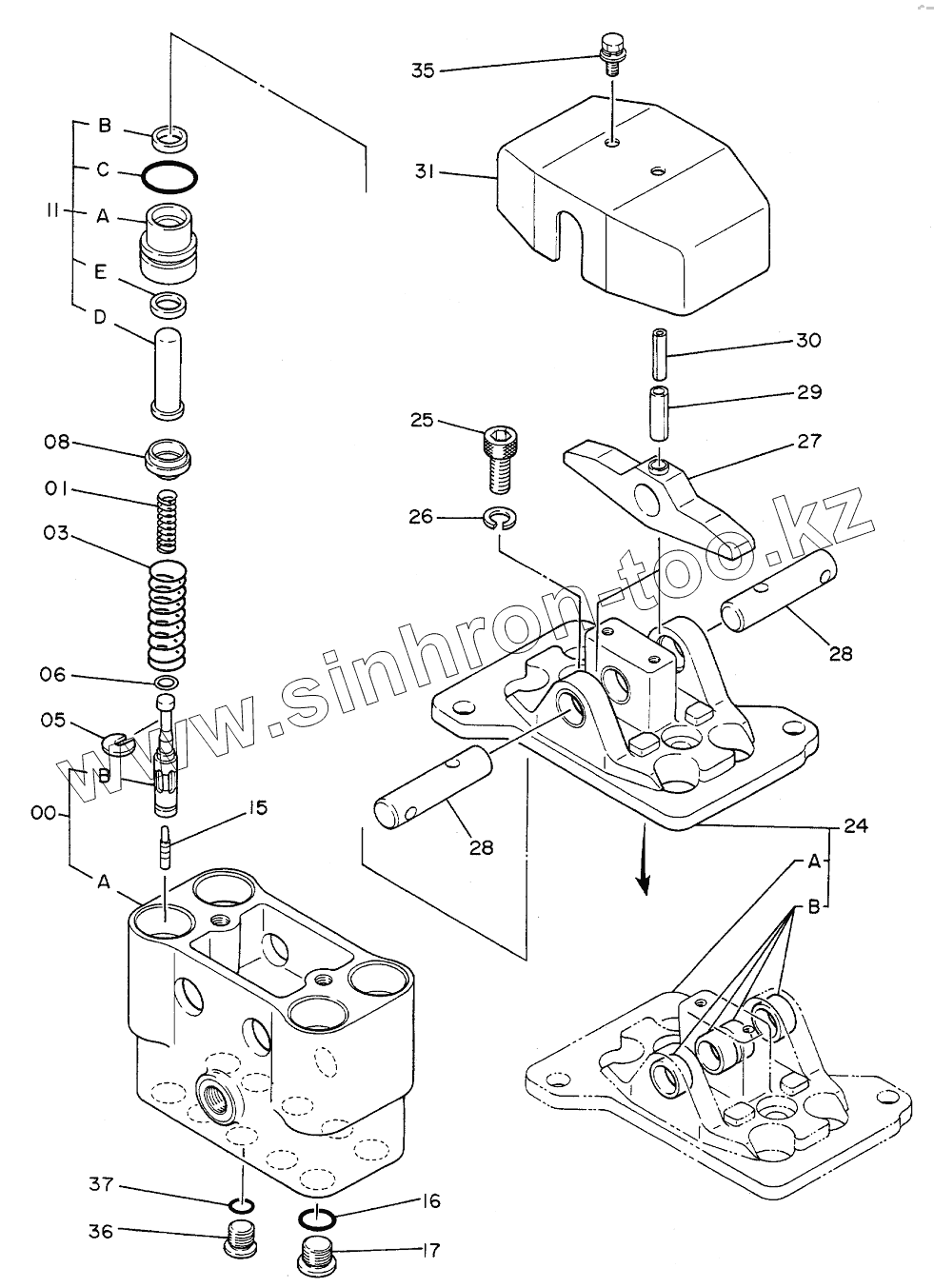

Каталог запасных частей к технике: Hitachi Компоненты EX-300. VALVE,PILOT
3037558
2027695
2027534
4238834
9071983
4240151
4187924
3037664
A810025
4240150
4191490
3047596
SPOOL
CASING
7017962
1
3
5
6
8
11
11
11
15
16
17
24
24
24
25
25
26
27
28
28
29
30
31
35
36
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3037558 | 3037558 | BUSHING | |
| 2027695 | 2027695 | HOLDER | |
| 2027534 | 2027534 | HOLDER | |
| 4238834 | 4238834 | BUSHING | |
| 9071983 | 9071983 | VALVE, PILOT | |
| 4240151 | 4240151 | SEAL, OIL | |
| 4187924 | 4187924 | SEAL, OIL | |
| 3037664 | 3037664 | PUSHER | |
| A810025 | A810025 | O-RING | |
| 4240150 | 4240150 | SEAL, DUST | |
| 4191490 | 4191490 | SEAL, DUST | |
| 3047596 | 3047596 | BUSHING | |
| SPOOL | SPOOL | SPOOL | |
| CASING | CASING | CASING | |
| 7017962 | 7017962 | CASING ASSY | |
| 1 | 4203421 | SPRING COMPRES. | |
| 3 | 4203413 | SPRING, COMPRES. | |
| 5 | 4177777 | SPACER | |
| 6 | 4173208 | SHIM | |
| 8 | 4203412 | GUIDE, SPRING | |
| 11 | 9089355 | PUSHER ASSY | |
| 11 | 9086457 | PUSHER ASSY | |
| 11 | 9071737 | PUSHER ASSY | |
| 15 | 4184929 | PISTON | |
| 16 | 962567 | O-RING | |
| 17 | 4185057 | PLUG | |
| 24 | 9085785 | HOLDER ASSY | |
| 24 | 2023575 | HOLDER | |
| 24 | 9086169 | HOLDER ASSY | |
| 25 | M341025 | BOLT, SOCKET | |
| 25 | 4259780 | BOLT, SOCKET | |
| 26 | A590910 | WASHER, SPRING | |
| 27 | 3035803 | CAM | |
| 28 | 4190983 | PIN | |
| 29 | 4027427 | PIN,SPRING | |
| 30 | 4213419 | PIN, SPRING | |
| 31 | 2022964 | COVER | |
| 35 | 4181729 | BOLT | |
| 36 | 4055350 | PLUG | |
| 36 | 4208977 | PLUG | |
| 37 | 964255 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
