Каталог запасных частей к технике: Hitachi Компоненты EX-270. VALVE, PILOT
3037559
3037552
А810025
4191490
3047989
3037559
4187924
4240151
9071984
4240151
4187924
3037551
А810025
4191490
3047989
SPOOL
SPOOL
CASING
7017963
1
2
3
4
5
5
6
6
7
8
11
11
11
12
12
12
13
14
14
15
15
16
17
18
19
24
24
25
26

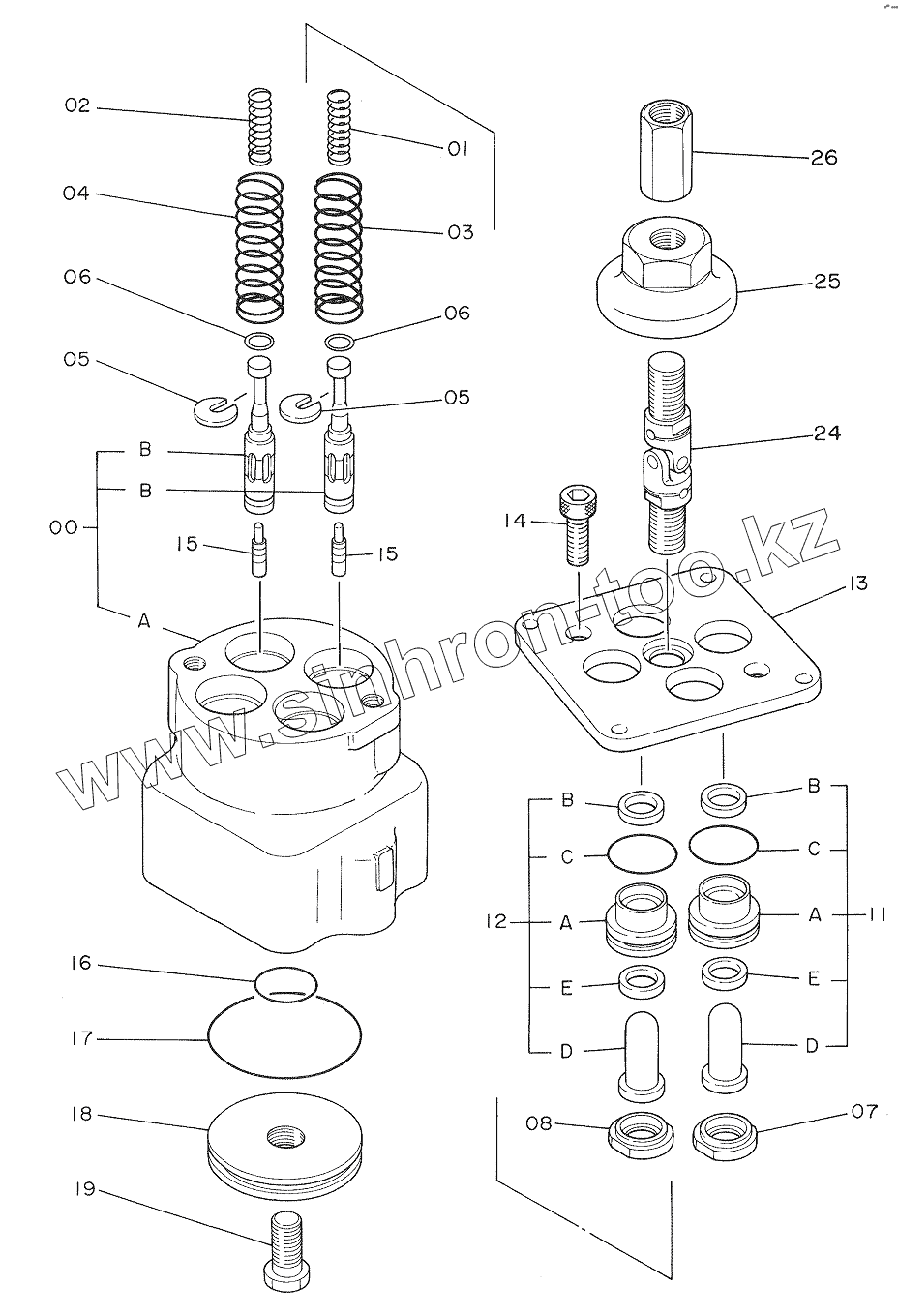

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3037559 | 3037559 | BUSHING | |
| 3037552 | 3037552 | PUSHER | |
| А810025 | А810025 | O-RING | |
| 4191490 | 4191490 | SEAL, DUST | |
| 3047989 | 3047989 | BUSHING | |
| 3037559 | 3037559 | BUSHING | |
| 4187924 | 4187924 | SEAL, OIL | |
| 4240151 | 4240151 | SEAL, OIL | |
| 9071984 | 9071984 | VALVE, PILOT | |
| 4240151 | 4240151 | SEAL, OIL | |
| 4187924 | 4187924 | SEAL, OIL | |
| 3037551 | 3037551 | PUSHER | |
| А810025 | А810025 | O-RING | |
| 4191490 | 4191490 | SEAL, DUST | |
| 3047989 | 3047989 | BUSHING | |
| SPOOL | SPOOL | SPOOL | |
| CASING | CASING | CASING | |
| 7017963 | 7017963 | CASING, ASSY | |
| 1 | 4201915 | SPRING, COMPRES. | |
| 2 | 4166686 | SPRING, COMPRES | |
| 3 | 4195421 | SPRING, COMPRES. | |
| 4 | 4186544 | SPRING, COMPRES. | |
| 5 | 4177777 | SPACER | |
| 6 | 4173208 | SHIM | |
| 7 | 4179257 | GUIDE, SPRING | |
| 8 | 4177896 | GUIDE, SPRING | |
| 11 | 9089809 | PUSHER ASSY | |
| 11 | 9086456 | PUSHER ASSY | |
| 11 | 9071735 | PUSHER ASSY | |
| 12 | 9071736 | PUSHER ASSY | |
| 12 | 9089808 | PUSHER ASSY | |
| 12 | 9086455 | PUSHER ASSY | |
| 13 | 4184930 | PLATE | |
| 14 | М341025 | BOLT, SOCKET | |
| 14 | 4259780 | BOLT, SOCKET | |
| 15 | 4184929 | PISTON | |
| 16 | 984338 | O-RING | |
| 17 | A810060 | O-RING | |
| 18 | 4184954 | PLATE | |
| 19 | М341225 | BOLT, SOCKET | |
| 24 | 4183035 | JOINT, UNIVERSAL | |
| 24 | 4285209 | JOINT, UNIVERSAL | |
| 25 | 4184931 | CAM | |
| 26 | 4182067 | JOINT, SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
