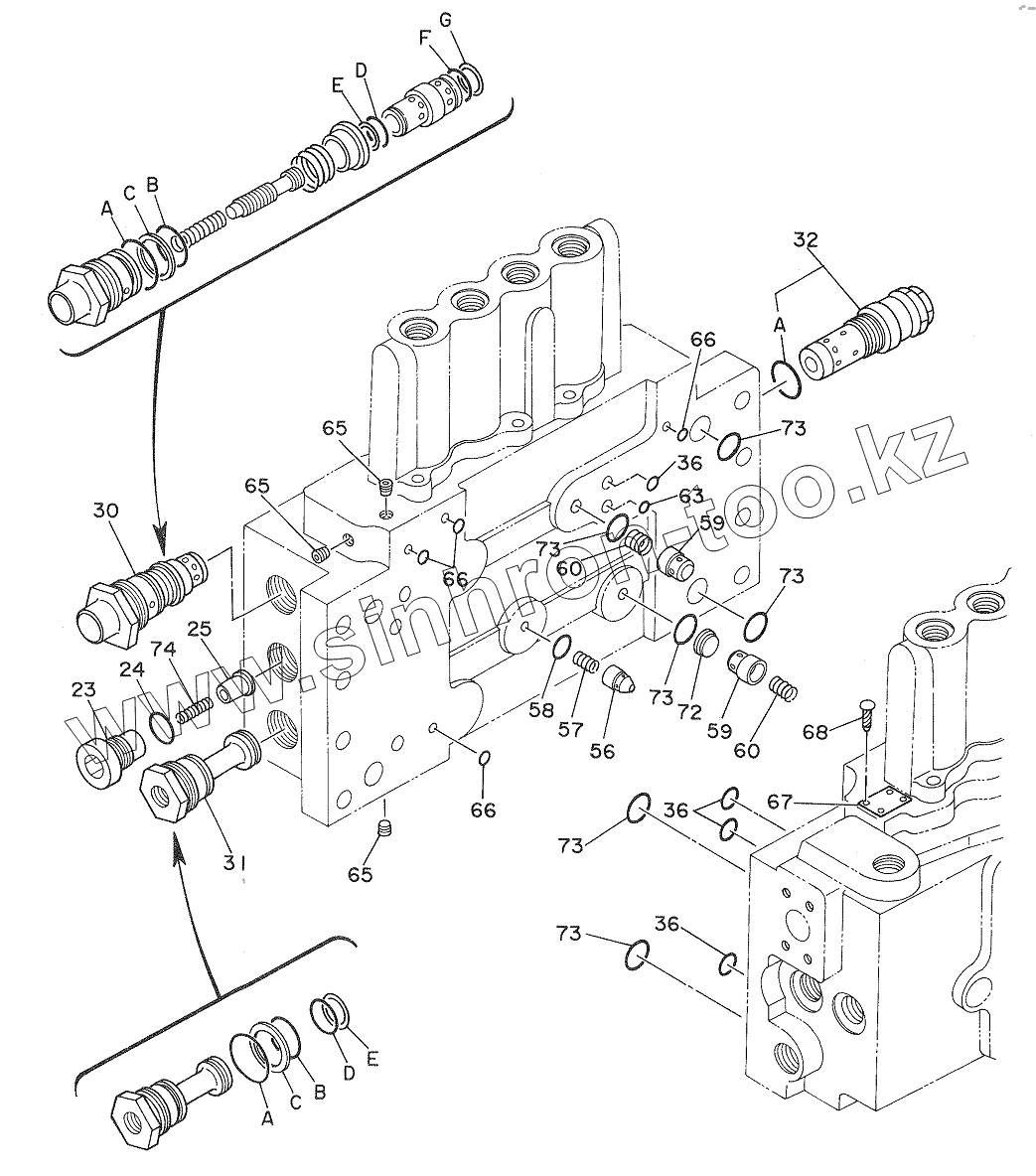

Каталог запасных частей к технике: Hitachi Компоненты EX-270. VALVE, CONTROL (4/4)
O-RING
4282906
4263542
O-RING
RING
O-RING
RING
O-RING
RING
O-RING
4282906
4251808
O-RING
RING
O-RING
RING
0111715
4224898
23
24
25
30
30
30
31
32
36
36
36
56
57
58
59
59
60
60
63
65
65
65
66
66
66
67
68
72
73
73
73
73
73
73
74
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| O-RING | O-RING | O-RING | |
| 4282906 | 4282906 | SEAL ASSY | |
| 4263542 | 4263542 | SEAL ASSY | |
| O-RING | O-RING | O-RING | |
| RING | RING | RING | |
| O-RING | O-RING | O-RING | |
| RING | RING | RING | |
| O-RING | O-RING | O-RING | |
| RING | RING | RING | |
| O-RING | O-RING | O-RING | |
| 4282906 | 4282906 | SEAL ASSY | |
| 4251808 | 4251808 | SEAL ASSY | |
| O-RING | O-RING | O-RING | |
| RING | RING | RING | |
| O-RING | O-RING | O-RING | |
| RING | RING | RING | |
| 0111715 | 0111715 | O-RING | |
| 4224898 | 4224898 | VALVE, CONTROL | |
| 23 | 0224411 | PLUG | |
| 24 | 0111715 | O-RING | |
| 25 | 0111711 | POPPET | |
| 30 | 4282693 | VALVE | |
| 30 | 4278304 | VALVE | |
| 30 | 0309707 | VALVE | |
| 31 | 0332202 | PLUG | |
| 32 | 0309709 | VАLVЕ, RЕLIЕF | |
| 36 | 4226442 | O-RING | |
| 56 | 0309604 | POPPET | |
| 57 | 0309605 | SPRING | |
| 58 | 4226443 | O-RING | |
| 59 | 0309608 | POPPET | |
| 60 | 0309606 | SPRING | |
| 63 | 4226444 | O-RING | |
| 65 | 94-2010 | PLUG | |
| 66 | 4226445 | O-RING | |
| 67 | NAME-PLATE | NAME-PLATE | |
| 68 | SСRЕW | SСRЕW, DRIVЕ | |
| 72 | 0309607 | SEAT | |
| 73 | 4226446 | O-RING | |
| 74 | 0309728 | SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
