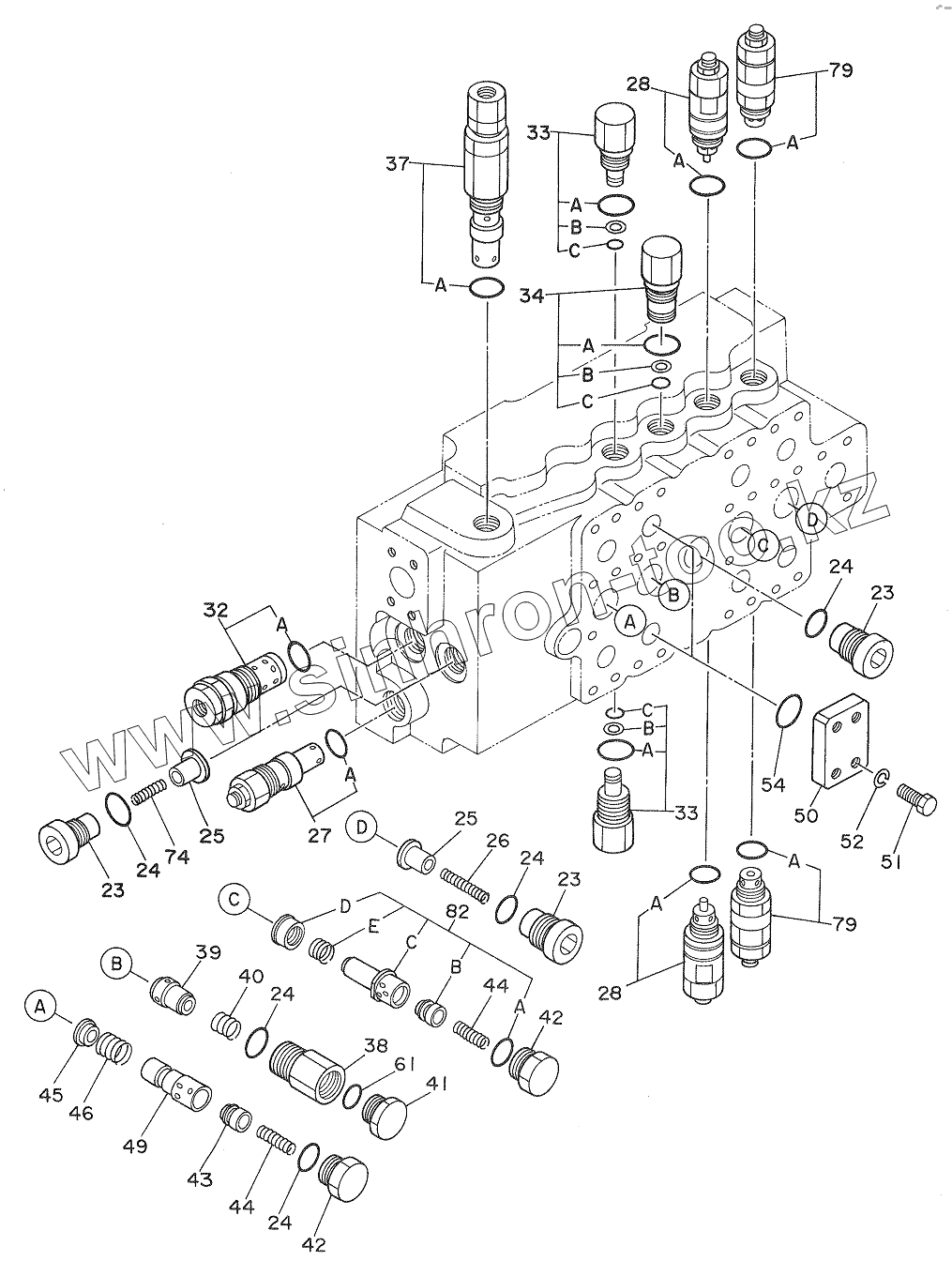

Каталог запасных частей к технике: Hitachi Компоненты EX-270. VALVE, CONTROL (2/4)
0111715
4257232
4257232
O-RING
RING
O-RING
O-RING
4257234
4257232
O-RING
RING
RING
O-RING
O-RING
4257233
0111715
0125107
4257232
4257232
4237926
4257232
4250558
4237925
4250559
4237927
4224898
23
23
23
24
24
24
24
24
25
25
26
27
28
28
32
33
33
34
37
38
39
40
41
42
42
43
44
44
45
46
49
50
51
52
54
61
74
79
79
82
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0111715 | 0111715 | O-RING | |
| 4257232 | 4257232 | O-RING | |
| O-RING | O-RING | O-RING | |
| RING | RING | RING | |
| O-RING | O-RING | O-RING | |
| 4257234 | 4257234 | КIТ, SЕАL | |
| 4257232 | 4257232 | O-RING | |
| O-RING | O-RING | O-RING | |
| RING | RING | RING | |
| O-RING | O-RING | O-RING | |
| 4257233 | 4257233 | KIT, SEAL | |
| 0111715 | 0111715 | O-RING | |
| 0125107 | 0125107 | POPPET | |
| 4257232 | 4257232 | O-RING | |
| 4237926 | 4237926 | SLEEVE | |
| 4257232 | 4257232 | O-RING | |
| 4250558 | 4250558 | SLEEVE | |
| 4237925 | 4237925 | POPPET | |
| 4250559 | 4250559 | POPPET | |
| 4237927 | 4237927 | SPRING | |
| 4224898 | 4224898 | VALVE, CONTROL | |
| 23 | 0224411 | PLUG | |
| 24 | 0111715 | O-RING | |
| 25 | 0111711 | POPPET | |
| 26 | 0224410 | SPRING | |
| 27 | 4239967 | VALVE, RELIEF | |
| 28 | 4228353 | VALVE, RELIEF | |
| 32 | 0309709 | VАLVЕ, RЕLIЕF | |
| 33 | 0309710 | PLUG ASSY | |
| 34 | 0309711 | РLUG АSSY | |
| 37 | 4228358 | VALVE, RELIEF | |
| 38 | 0309713 | PLUG | |
| 39 | 0309714 | POPPET | |
| 40 | 0309715 | SPRING | |
| 41 | 0309716 | PLUG | |
| 42 | 0309717 | PLUG | |
| 43 | 0125107 | POPPET | |
| 44 | 0125108 | SPRING | |
| 45 | 0309718 | POPPET | |
| 46 | 0309719 | SPRING | |
| 49 | 0309721 | SLEEVE | |
| 50 | 0309733 | PLATE | |
| 51 | 0224423 | BOLT | |
| 52 | A590910 | WASHER, SPRING | |
| 54 | 0224422 | O-RING | |
| 61 | 4506424 | O-RING | |
| 74 | 0309728 | SPRING | |
| 79 | 4228354 | VALVE, RELIEF | |
| 82 | 4250560 | VALVE, CHECK | |
| 82 | 4239608 | VALVE, CHECK |
