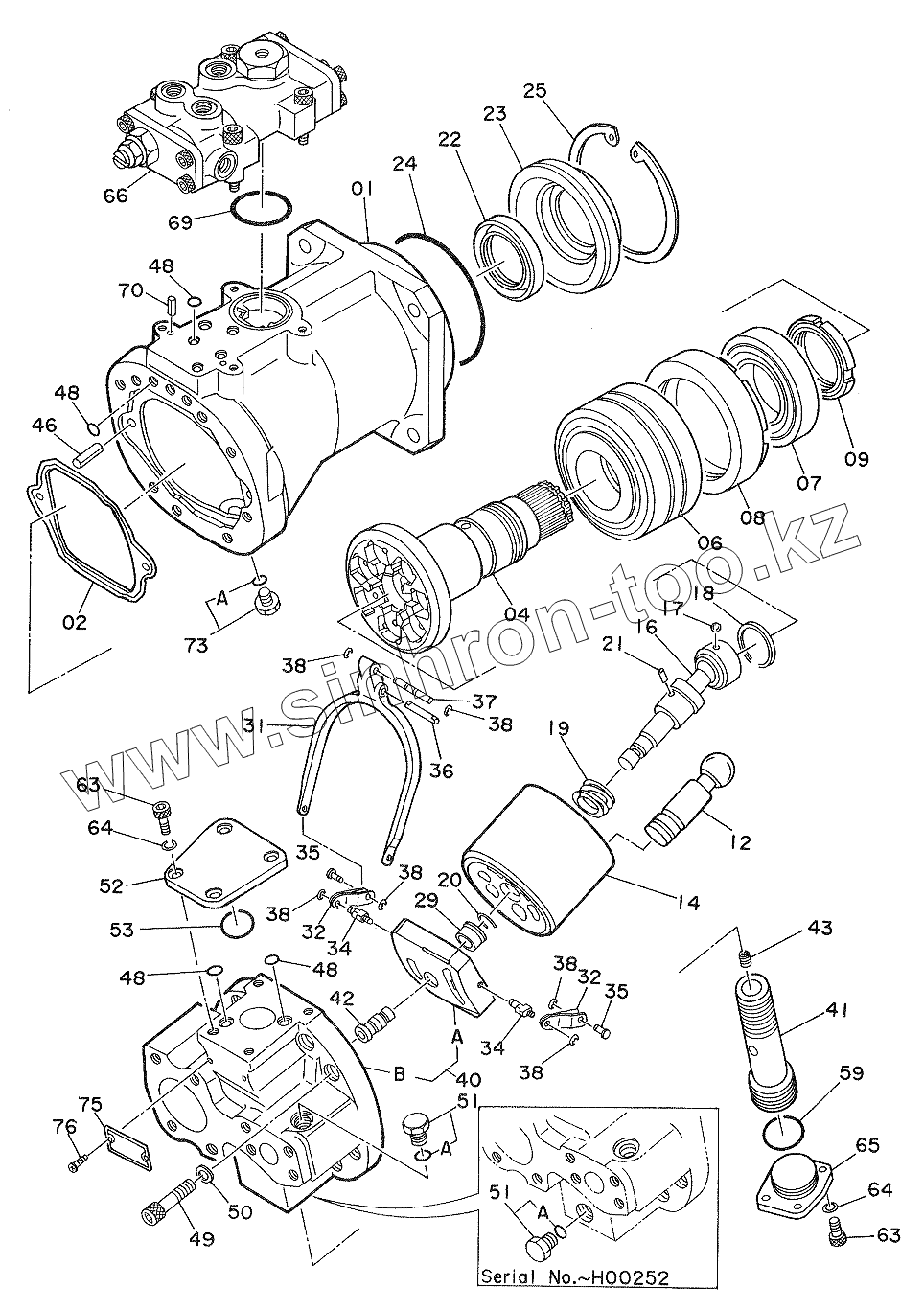

Каталог запасных частей к технике: Hitachi Компоненты EX-270. PUMP, SINGLE
1011957
2035307
957366
957366
HEAD
VАLVЕ
4509180
9075749
1
1
2
4
6
7
8
9
12
12
14
16
17
18
19
20
21
22
22
23
24
25
29
31
32
32
34
34
35
35
36
37
38
38
38
38
38
38
40
40
40
41
42
43
46
48
48
48
48
49
50
51
51
51
52
53
59
63
63
64
64
65
66
69
70
73
73
75
76
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1011957 | 1011957 | HEAD | |
| 2035307 | 2035307 | VALVE | |
| 957366 | 957366 | O-RING | |
| HEAD | HEAD | HEAD | |
| VАLVЕ | VАLVЕ | VАLVЕ | |
| 4509180 | 4509180 | O-RING | |
| 9075749 | 9075749 | PUMP, SINGLE | |
| 1 | 1010399 | CASING, PUMP | |
| 1 | 1014184 | CASING, PUMP | |
| 2 | 8046112 | PACKING | |
| 4 | 2023051 | DISC, DRMNG | |
| 6 | 4190694 | BRG., ROL. | |
| 7 | 4209323 | BRG., ROL. | |
| 8 | 3035965 | SPACER | |
| 9 | 4191665 | NUT, BRG. | |
| 12 | 8033955 | PISTON | |
| 12 | 8049118 | PISTON | |
| 14 | 2022744 | ROTOR | |
| 16 | 8035539 | SHAFT, CENTER | |
| 17 | 4184779 | BALL | |
| 18 | 4191667 | RING, RETAINING | |
| 19 | 4194362 | SPRING, COMPRES. | |
| 20 | 4193062 | RING, RETAINING | |
| 21 | 4198956 | PIN | |
| 22 | 4191666 | SEAL, OIL | |
| 22 | 4232070 | SEAL, OIL | |
| 23 | 3035966 | COVER, SEAL | |
| 24 | 4191664 | O-RING | |
| 25 | 4094325 | RING, RETAINING | |
| 29 | 4193132 | BUSHING | |
| 31 | 3039569 | LINK | |
| 32 | 9724756 | LEVER | |
| 34 | 4179179 | PIN | |
| 35 | 4179177 | PIN | |
| 36 | 4200227 | PIN | |
| 37 | 4179176 | PIN | |
| 38 | 4146370 | RING | |
| 40 | 8041179 | HEAD ASSY | |
| 40 | HEAD ASSY | HEAD ASSY | |
| 40 | 8041517 | HEAD ASSY | |
| 41 | 3036326 | PISTON, SERVO | |
| 42 | 4193245 | PIN | |
| 43 | 4179838 | SCREW, SET | |
| 46 | 4099290 | PIN | |
| 48 | 4180349 | O-RING | |
| 49 | М341245 | BOLT | |
| 50 | 495841 | WASHER, SPRING | |
| 51 | 4108720 | PLUG | |
| 51 | 4108720 | PLUG | |
| 52 | 4204862 | STOPPER | |
| 53 | 955020 | O-RING | |
| 59 | 984623 | O-RING | |
| 63 | М34О820 | BOLT, SOCKET | |
| 64 | 4514388 | WASHER, SPRING | |
| 65 | 4216295 | STOPPER | |
| 66 | 9075750 | REGULATOR | |
| 69 | А810055 | O-RING | |
| 70 | 4515041 | PIN, SPRING | |
| 73 | 4092534 | PLUG | |
| 73 | 9089486 | PLUG | |
| 75 | 3039520 | NAME-PLATE | |
| 76 | М492564 | SCREW, DRIVE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
