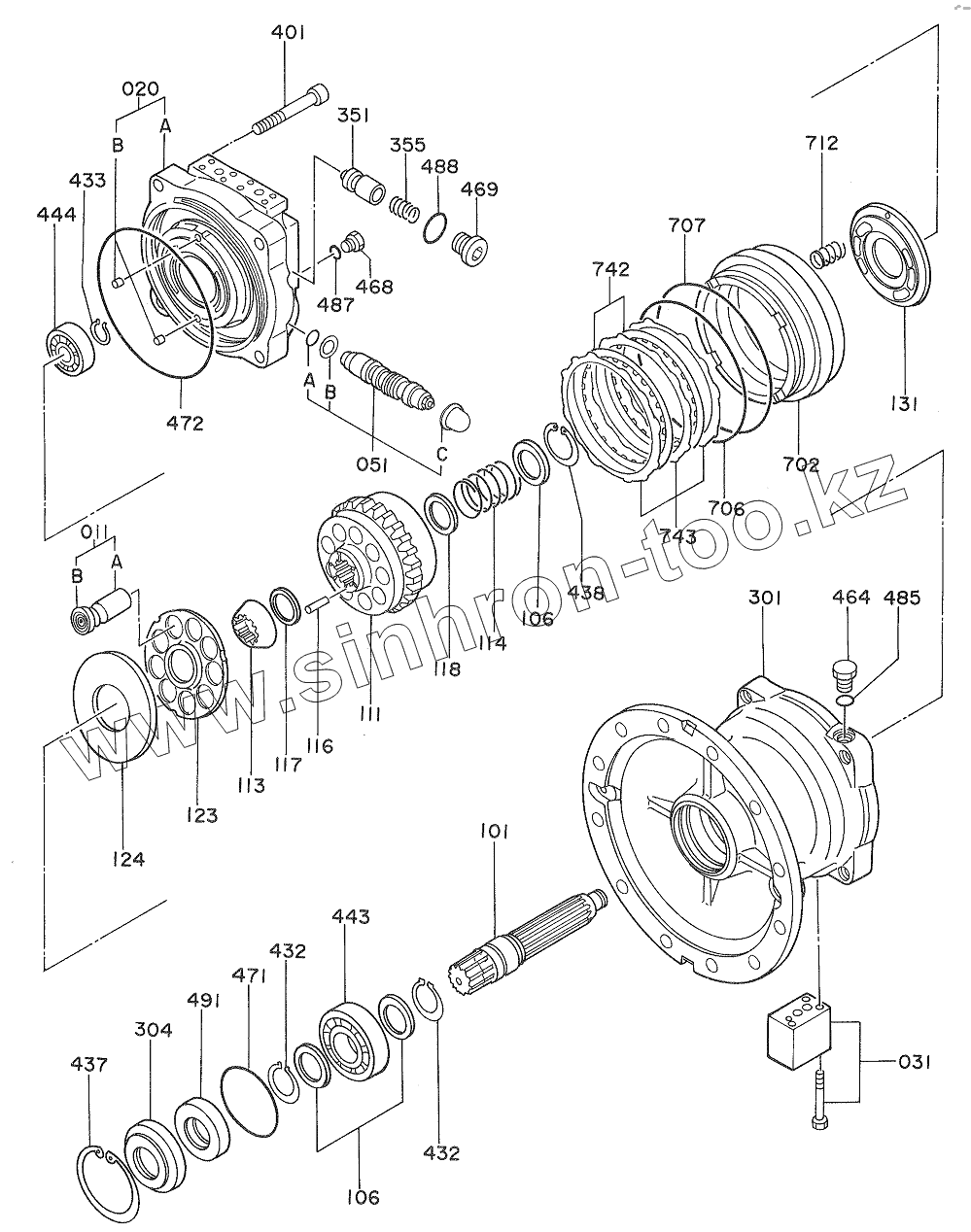

Каталог запасных частей к технике: Hitachi Компоненты EX-270. MOTOR, OIL (SWING)
4224992
PISTON
SHOE
4269432
CASING
PIN
0177007
4003062
11
20
31
51
101
106
106
111
113
114
116
117
118
123
124
131
301
304
351
355
401
432
432
433
437
438
443
444
464
468
469
471
472
472
485
487
488
491
702
706
707
712
742
743
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4224992 | 4224992 | MOTOR, OIL | |
| PISTON | PISTON | PISTON | |
| SHOE | SHOE | SHOE | |
| 4269432 | 4269432 | CAP | |
| CASING | CASING | CASING | |
| PIN | PIN | PIN | |
| 0177007 | 0177007 | RING, BACK-UP | |
| 4003062 | 4003062 | O-RING | |
| 11 | 0365401 | PISTON SUB | |
| 20 | 0365402 | CASING SUB | |
| 31 | 0365303 | VALVE SUB | |
| 51 | 0365403 | VALVE, RELIEF | |
| 101 | 0365404 | SHAFT | |
| 106 | 0365405 | SPACER | |
| 111 | 0365406 | CYL. | |
| 113 | 0365407 | BUSHING | |
| 114 | 0365408 | SPRING | |
| 116 | 0365409 | ROD, PUSH | |
| 117 | 0365410 | SPACER | |
| 118 | 0365411 | SPACER | |
| 123 | 0365412 | PLATE | |
| 124 | 0365413 | PLATE | |
| 131 | 0365414 | PLATE | |
| 301 | 0365415 | CASING | |
| 304 | 0365416 | COVER | |
| 351 | 0236006 | PLUNGER | |
| 355 | 0236009 | SPRING | |
| 401 | 0365417 | BOLT, SOCKET | |
| 432 | 0365418 | RING, RETAINING | |
| 433 | 0365320 | RING, RETAINING | |
| 437 | 0365419 | RING, RETAINING | |
| 438 | 0365420 | RING, RETAINING | |
| 443 | 0365421 | BRG. | |
| 444 | 0365324 | BRG. | |
| 464 | 0236014 | PLUG | |
| 468 | 0236014 | PLUG | |
| 469 | 0236015 | PLUG | |
| 471 | 0365422 | O-RING | |
| 472 | 0365423 | O-RING | |
| 472 | 0365430 | O-RING | |
| 485 | 957366 | O-RING | |
| 487 | 957366 | O-RING | |
| 488 | 0365327 | O-RING | |
| 491 | 0365424 | SEAL, OIL | |
| 702 | 0365425 | PISTON, BRAKE | |
| 706 | 0365426 | O-RING | |
| 707 | 0365427 | O-RING | |
| 712 | 0365331 | SPRING, BRAKE | |
| 742 | 0365428 | PLATE | |
| 743 | 0365429 | PLATE |
