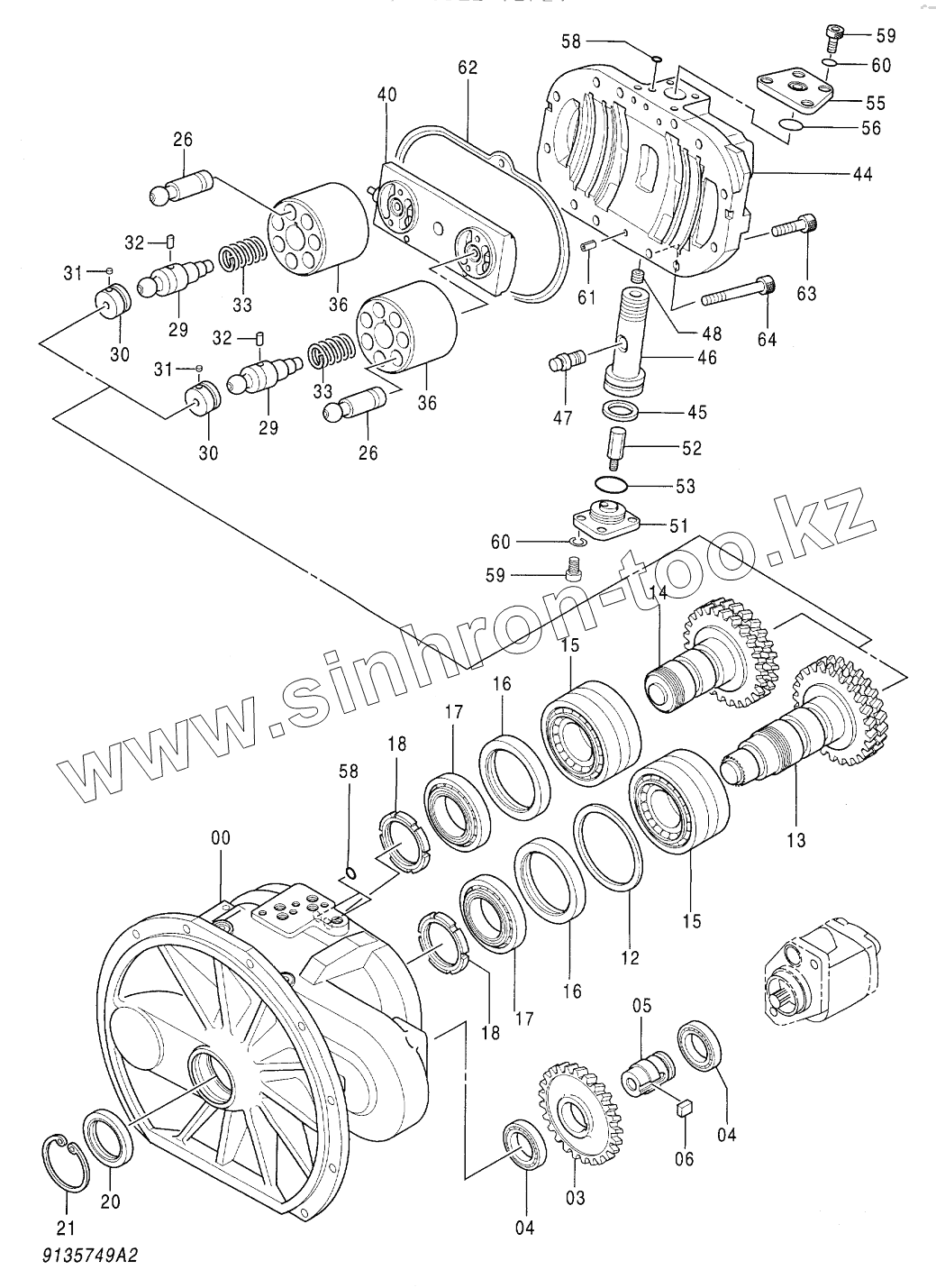

Каталог запасных частей к технике: Hitachi Компоненты EX-220-2. PUMP, DOUBLE (2/2) H01169-
1020602
3
4
4
5
6
12
13
14
15
15
16
16
17
17
18
18
20
21
26
26
29
29
30
30
31
31
32
32
33
33
36
36
40
44
45
46
47
48
51
52
53
55
56
58
58
59
59
60
60
61
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1020602 | 1020602 | CASING, PUMP | |
| 9135749 | 9135749 | PUMP, DOUBLE | |
| 3 | 3051201 | GEAR, PILOT | |
| 4 | 958740 | BRG. | |
| 5 | 3046466 | SHAFT, GEAR | |
| 6 | 4118495 | KEY | |
| 12 | 4338907 | RING | |
| 13 | 1015000 | DISC, DRIVING | |
| 14 | 1015178 | DISC, DRIVING | |
| 15 | 4175666 | BRG., ROL. | |
| 16 | 4339171 | RING, SPACER | |
| 17 | 14199307 | BRG., ROL | |
| 18 | 4178173 | NUT | |
| 20 | 4260561 | SEAL, OIL | |
| 21 | 4116290 | RING | |
| 26 | 8043698 | PISTON | |
| 29 | 4233180 | SHAFT, CENTER | |
| 30 | 4233181 | HOLDER | |
| 31 | 4184779 | BALL | |
| 32 | 4198956 | PIN | |
| 33 | 4248499 | SPRING, COMPRES. | |
| 36 | 2027277 | ROTOR | |
| 40 | 1020223 | VALVE | |
| 44 | 1016127 | HEAD | |
| 45 | 4272674 | RING, PISTON | |
| 46 | 3055313 | PISTON, SERVO | |
| 47 | 4260211 | PIN | |
| 48 | 4179838 | SCREW, SET | |
| 51 | 4260500 | STOPPER | |
| 52 | 4260493 | STOPPER | |
| 53 | 992444 | O-RING | |
| 55 | 3051812 | STOPPER | |
| 56 | 4260309 | O-RING | |
| 58 | 971823 | O-RING | |
| 59 | M340820 | BOLT, SOCKET | |
| 60 | 4514388 | WASHER, SPRING | |
| 61 | 4099290 | PIN | |
| 62 | 8057232 | PACKING | |
| 63 | M341245 | BOLT, SOCKET | |
| 64 | M341290 | BOLT, SOCKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
