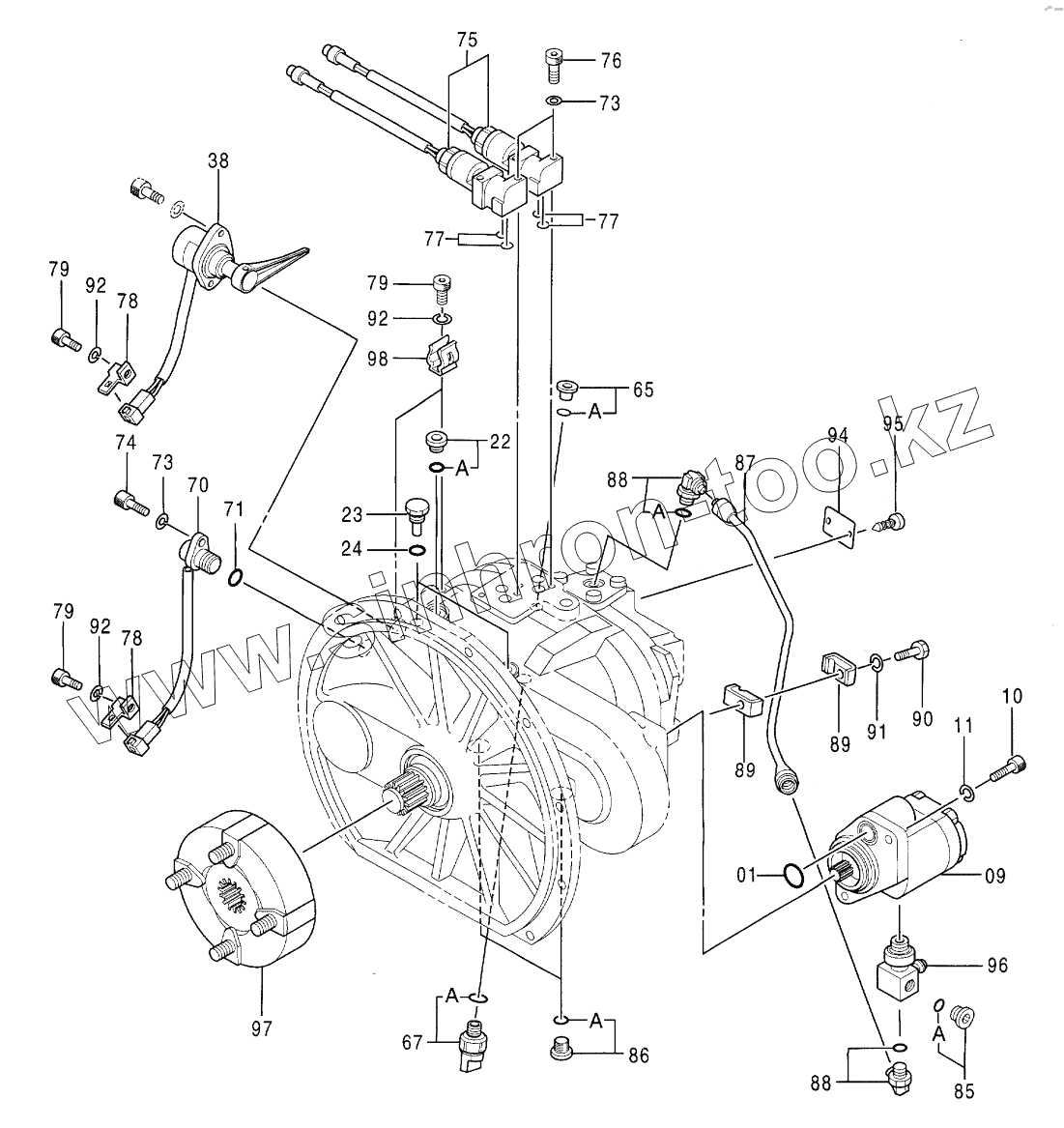

Каталог запасных частей к технике: Hitachi Компоненты EX-220-2. PUMP, DOUBLE (1/2) H01169-
01
09
10
11
22
22A
23
24
38
65
65A
67
67A
70
71
73
73
74
75
76
77
77
78
78
79
79
79
85
85A
86
86A
87
88
88
88A
88A
89
89
90
91
92
92
92
94
95
96
97
98
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9135749 | 9135749 | PUMP, DOUBLE | |
| 01 | 4254405 | O-RING | |
| 09 | 4255303 | PUMP, GEAR | |
| 10 | M341030 | BOLT, SOCKET | |
| 11 | A590110 | WASHER, PLANE | |
| 22 | 9089486 | PLUG | |
| 22A | 4509180 | O-RING | |
| 23 | 4233165 | PLUG | |
| 24 | 957366 | O-RING | |
| 38 | SENSOR | SENSOR, ANGLE | |
| 65 | 9089485 | PLUG | |
| 65A | 957366 | O-RING | |
| 67 | 4339754 | SENSOR, PRES. | |
| 67A | 4150302 | O-RING | |
| 70 | 4265372 | SENSOR, REVOL. | |
| 71 | 4306888 | O-RING | |
| 73 | A590106 | WASHER | |
| 74 | M340616 | BOLT, SOCKET | |
| 75 | 9120292 | VALVE, SOLENOID | |
| 76 | M340645 | BOLT, SOCKET | |
| 77 | 971823 | O-RING | |
| 78 | 4252767 | BRACKET | |
| 79 | M340613 | BOLT, SOCKET | |
| 85 | 9089485 | PLUG | |
| 85A | 957366 | O-RING | |
| 86 | 9089486 | PLUG | |
| 86A | 4509180 | O-RING | |
| 87 | 3055948 | PIPE | |
| 88 | 4179837 | FITTING, PIPE | |
| 88A | 957366 | O-RING | |
| 89 | 9736515 | CLAMP | |
| 90 | J900830 | BOLT | |
| 91 | A590908 | WASHER, SPRING | |
| 92 | 4169516 | WASHER, SPRING | |
| 94 | 3020380 | NAME-PLATE | |
| 95 | M492564 | SCREW, DRIVE | |
| 96 | 4278547 | ADAPTER | |
| 97 | 4262327 | COUPLING | |
| 98 | 4276559 | CLAMP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
