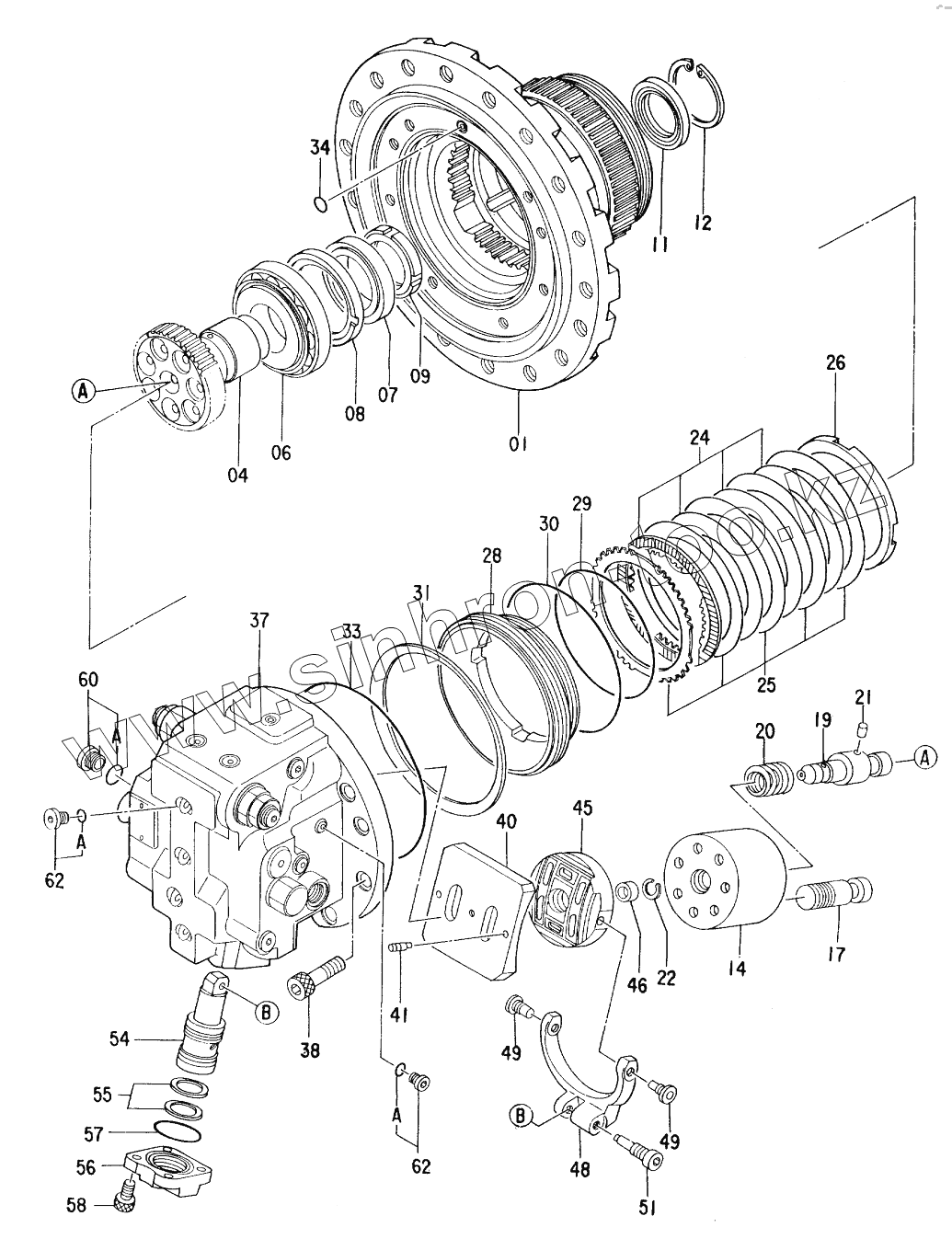

Каталог запасных частей к технике: Hitachi Компоненты EX-220-2. MOTOR, OIL (TRAVEL) H00531-H00848
01
04
06
07
08
09
11
12
14
17
19
20
21
22
24
25
26
28
29
30
31
33
34
37
38
40
41
45
46
48
49
49
51
54
55
56
57
58
60
60A
62
62
62A
62A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9116388 | 9116388 | MOTOR, OIL | |
| 01 | 1014547 | HOUSING | |
| 04 | 2026713 | DISC, DRIVING | |
| 06 | 4198783 | BRG, ROL | |
| 07 | 4198998 | BRG., ROL. | |
| 08 | 4222980 | SPACER | |
| 09 | 4178173 | NUT | |
| 11 | 4260561 | SEAL, OIL | |
| 12 | 4116290 | RING | |
| 14 | 2032256 | ROTOR | |
| 17 | 8050658 | PISTON | |
| 19 | 4262045 | SHAFT, CENTER | |
| 20 | 4246613 | SPRING, COMPRES. | |
| 21 | 4198956 | PIN | |
| 22 | 4234229 | RING, RETAINING | |
| 24 | 3037401 | PLATE, FRICTION | |
| 25 | 3032432 | PLATE | |
| 26 | 4246784 | SPACER | |
| 28 | 3047473 | PISTON | |
| 29 | 4232766 | D-RING | |
| 30 | 4232767 | O-RING | |
| 31 | 3047472 | SPRING, DISC | |
| 33 | 4248871 | O-RING | |
| 34 | 4506415 | O-RING | |
| 37 | 9116389 | VALVE, BRAKE | |
| 38 | M341650 | BOLT, SOCKET | |
| 40 | 3050071 | PLATE | |
| 41 | 4266256 | PIN, KNOCK | |
| 45 | 1016649 | VALVE | |
| 46 | 4234628 | BUSHING | |
| 48 | 3052403 | LINK | |
| 49 | 4255238 | PLUG | |
| 51 | 4262561 | BOLT, REAMER | |
| 54 | 9101386 | PISTON, SERVO | |
| 55 | 4260308 | RING, PISTON | |
| 56 | 4275286 | COVER | |
| 57 | 4265579 | O-RING | |
| 58 | M341225 | BOLT, SOCKET | |
| 60 | 9089487 | PLUG | |
| 60A | 4506418 | O-RING | |
| 62 | 9089484 | PLUG | |
| 62A | 4506408 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
