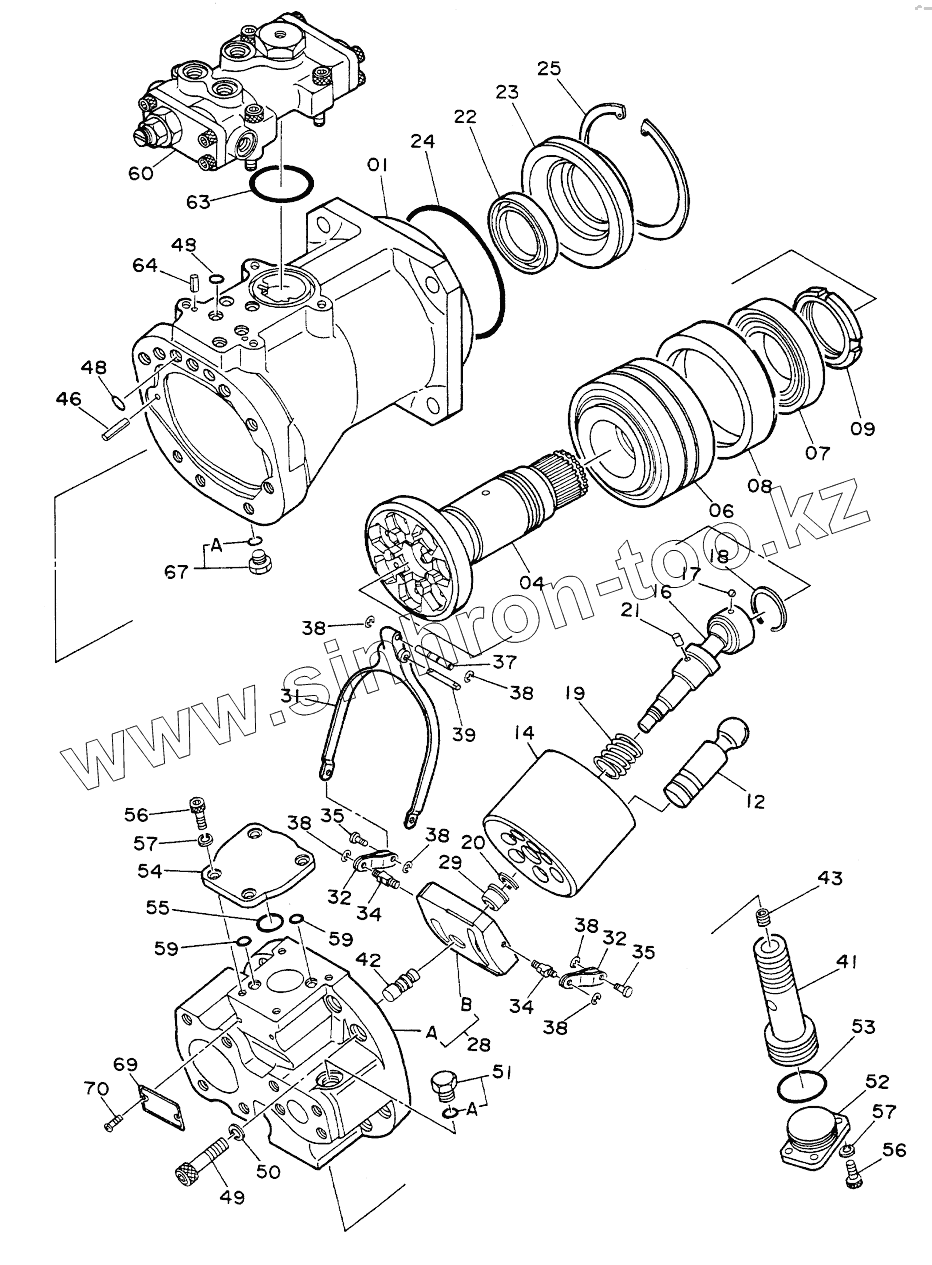

Каталог запасных частей к технике: Hitachi Компоненты EX-220. PUMP,SINGLE
957366
4509180
9077426
VALVE
HEAD
1
4
6
7
8
9
12
14
16
17
18
19
20
21
22
23
24
25
28
29
31
32
32
34
34
35
35
37
38
38
38
38
38
38
39
41
42
43
46
48
48
49
50
51
52
53
54
55
56
56
57
57
59
59
60
63
64
67
69
70
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 957366 | 957366 | O-RING | |
| 4509180 | 4509180 | O-RING | |
| 9077426 | 9077426 | PUMP, SINGLE | |
| VALVE | VALVE | BODY, VALVE | |
| HEAD | HEAD | HEAD | |
| 1 | 1009434 | CASING, PUMP | |
| 4 | 2021677 | DISC, DRIVING | |
| 6 | 4175666 | BRG., ROL. | |
| 7 | 4199307 | BRG., ROL. | |
| 8 | 3033597 | SPACER | |
| 9 | 4178173 | NUT | |
| 12 | 8036381 | PISTON | |
| 14 | 2021642 | ROTOR | |
| 16 | 8035127 | SHAFT, CENTER | |
| 17 | 4184779 | BALL | |
| 18 | 4184778 | RING, RЕТАINING | |
| 19 | 4179181 | SPRING | |
| 20 | 4188857 | RING, RETAINING | |
| 21 | 4198956 | PIN | |
| 22 | 4176958 | SEAL, OIL | |
| 23 | 4173923 | СОVЕR, SЕАL | |
| 24 | 4178393 | O-RING | |
| 25 | 959503 | RING, RETAINING | |
| 28 | 8041181 | HEAD ASSY | |
| 29 | 4177926 | BUSHING | |
| 31 | 3037675 | LINK | |
| 32 | 9724756 | LEVER | |
| 34 | 4179179 | PIN | |
| 35 | 4179177 | PIN | |
| 37 | 4179176 | PIN | |
| 38 | 4146370 | RING | |
| 39 | 4200227 | PIN | |
| 41 | 3035527 | PISTON, SERVO | |
| 42 | 4188555 | PIN | |
| 43 | 4179838 | SCREW, SET | |
| 46 | 4099290 | PIN | |
| 48 | 4180349 | O-RING | |
| 49 | М341245 | BOLT | |
| 50 | 495841 | WASHER, SPRING | |
| 51 | 4108720 | PLUG | |
| 52 | 4179841 | STOPPER | |
| 53 | А811040 | O-RING | |
| 54 | 4201649 | STOPPER | |
| 55 | 4509182 | O-RING | |
| 56 | М340820 | BOLT, SOCKET | |
| 57 | 4514388 | WASHER, SPRING | |
| 59 | 4180349 | O-RING | |
| 60 | 9070496 | REGULATOR | |
| 63 | А810055 | O-RING | |
| 64 | 4515041 | PIN, SPRING | |
| 67 | 4092534 | PLUG | |
| 69 | 3037597 | NAME-PLATE | |
| 70 | М492564 | SCREW, DRIVE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
