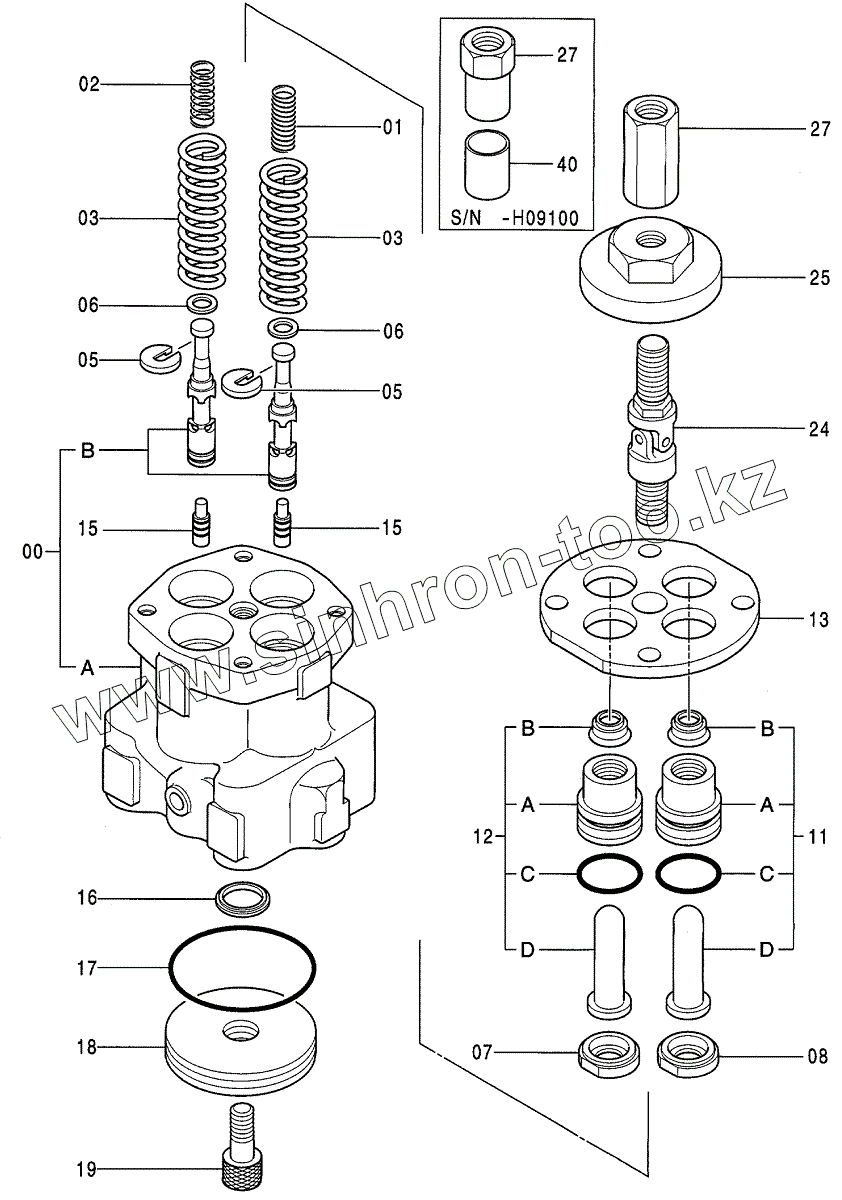

Каталог запасных частей к технике: Hitachi Компоненты EX-200-3(LC, H). VALVE, PILOT, 9134232B
00
00A
00B
01
02
03
03
05
05
06
06
07
08
11
11A
11B
11C
11D
12
12A
12B
12C
12D
13
15
15
16
17
18
19
24
25
27
27
27
27
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9134232 | 9134232 | VALVE, PILOT | |
| 9134239 | 9134239 | VALVE, PILOT | |
| 00 | 7024552 | CASING ASSY | |
| 00A | CASING | CASING | |
| 00B | SPOOL | SPOOL | |
| 01 | 4201915 | SPRING, COMPRES. | |
| 02 | 4166686 | SPRING, COMPRES | |
| 03 | 4195421 | SPRING, COMPRES. | |
| 05 | 4286796 | SPACER | |
| 06 | 4173208 | SHIM | |
| 07 | 4177896 | GUIDE, SPRING | |
| 08 | 4286797 | GUIDE, SPRING | |
| 11 | 9107447 | PUSHER ASS'Y | |
| 11A | 3058790 | BUSHING | |
| 11B | 4276152 | SEAL, DUST | |
| 11C | A810025 | O-RING | |
| 11D | 3058791 | PUSHER | |
| 12 | 9108066 | PUSHER ASSY | |
| 12A | 3058790 | BUSHING | |
| 12B | 4276152 | SEAL, DUST | |
| 12C | A810025 | O-RING | |
| 12D | 3051298 | PUSHER | |
| 13 | 4269475 | PLATE | |
| 15 | 4184929 | PISTON | |
| 16 | 4286874 | SEAL, WASHER | |
| 17 | A810060 | O-RING | |
| 18 | 4184954 | PLATE | |
| 19 | M341225 | BOLT, SOCKET | |
| 24 | 4285209 | JOINT, UNIVERSAL | |
| 25 | 4253746 | CAM | |
| 27 | 4335240 | JOINT, SCREW | |
| 27 | 4182067 | JOINT, SCREW | |
| 40 | TUBE | TUBE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
