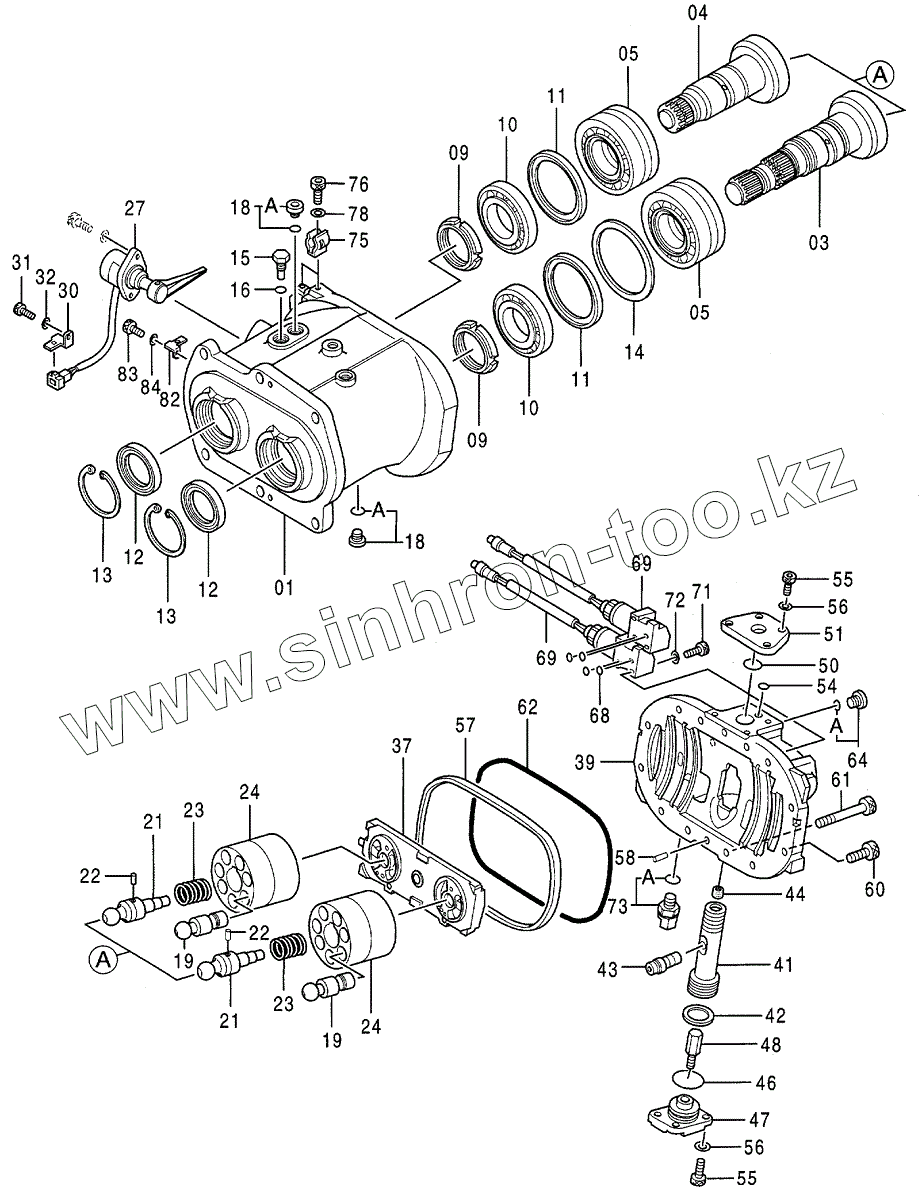

Каталог запасных частей к технике: Hitachi Компоненты EX-200-3(LC, H). PUMP, UNIT, 9118972A
01
01
03
04
05
05
09
09
10
10
11
11
12
12
13
13
14
15
16
18
18
18A
18A
19
19
21
21
22
22
23
23
24
24
27
30
31
32
37
39
39
41
42
43
44
46
47
48
50
51
54
55
55
56
56
57
58
60
61
62
64
64A
68
69
69
71
72
73
73A
75
76
78
82
83
84
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| PUMP;UNIT | PUMP;UNIT | PUMP, UNIT | |
| 01 | 1018750 | CASING, PUMP | |
| 01 | 1022032 | CASING, PUMP | |
| 03 | 2034788 | DISC, DRIVING | |
| 04 | 2034789 | DISC, DRIVING | |
| 05 | 4175666 | BRG., ROL. | |
| 09 | 4178173 | NUT | |
| 10 | 4199307 | BRG., ROL. | |
| 11 | 4339171 | RING, SPACER | |
| 12 | 4232069 | SEAL, OIL | |
| 13 | 4116290 | RING | |
| 14 | 4338907 | RING | |
| 15 | 4310992 | PLUG | |
| 16 | 957366 | O-RING | |
| 18 | 9134111 | PLUG | |
| 18A | 4509180 | O-RING | |
| 19 | 8043698 | PISTON | |
| 21 | 4233180 | SHAFT, CENTER | |
| 22 | 4198956 | PIN | |
| 23 | 4248499 | SPRING, COMPRES. | |
| 24 | 2027277 | ROTOR | |
| 27 | SENSOR;ANGLE | SENSOR, ANGLE | |
| 30 | 4252767 | BRACKET | |
| 31 | M340613 | BOLT, SOCKET | |
| 32 | 4169516 | WASHER, SPRING | |
| 37 | 1020223 | VALVE | |
| 39 | 1018752 | HEAD | |
| 39 | 1022034 | HEAD | |
| 41 | 3055313 | PISTON, SERVO | |
| 42 | 4272674 | RING, PISTON | |
| 43 | 4260211 | PIN | |
| 44 | 4179838 | SCREW, SET | |
| 46 | 4317635 | O-RING | |
| 47 | 4260500 | STOPPER | |
| 48 | 4260493 | STOPPER | |
| 50 | 4317637 | O-RING | |
| 51 | 4311778 | COVER | |
| 54 | 4317636 | O-RING | |
| 55 | M340820 | BOLT, SOCKET | |
| 56 | 4514388 | WASHER, SPRING | |
| 57 | 3066033 | RING, BACKUP | |
| 58 | 4099290 | PIN | |
| 60 | M341245 | BOLT, SOCKET | |
| 61 | M341290 | BOLT, SOCKET | |
| 62 | 4317619 | O-RING | |
| 64 | 9134110 | PLUG | |
| 64A | 957366 | O-RING | |
| 68 | 4317636 | O-RING | |
| 69 | 9120292 | VALVE, SOLENOID | |
| 71 | M340645 | BOLT, SOCKET | |
| 72 | A590106 | WASHER | |
| 73 | 4339754 | SENSOR, PRES. | |
| 73A | 4150302 | O-RING | |
| 75 | 4276559 | CLAMP | |
| 76 | M340613 | BOLT, SOCKET | |
| 78 | 4169516 | WASHER, SPRING | |
| 82 | 4252767 | BRACKET | |
| 83 | M340613 | BOLT, SOCKET | |
| 84 | 4169516 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
