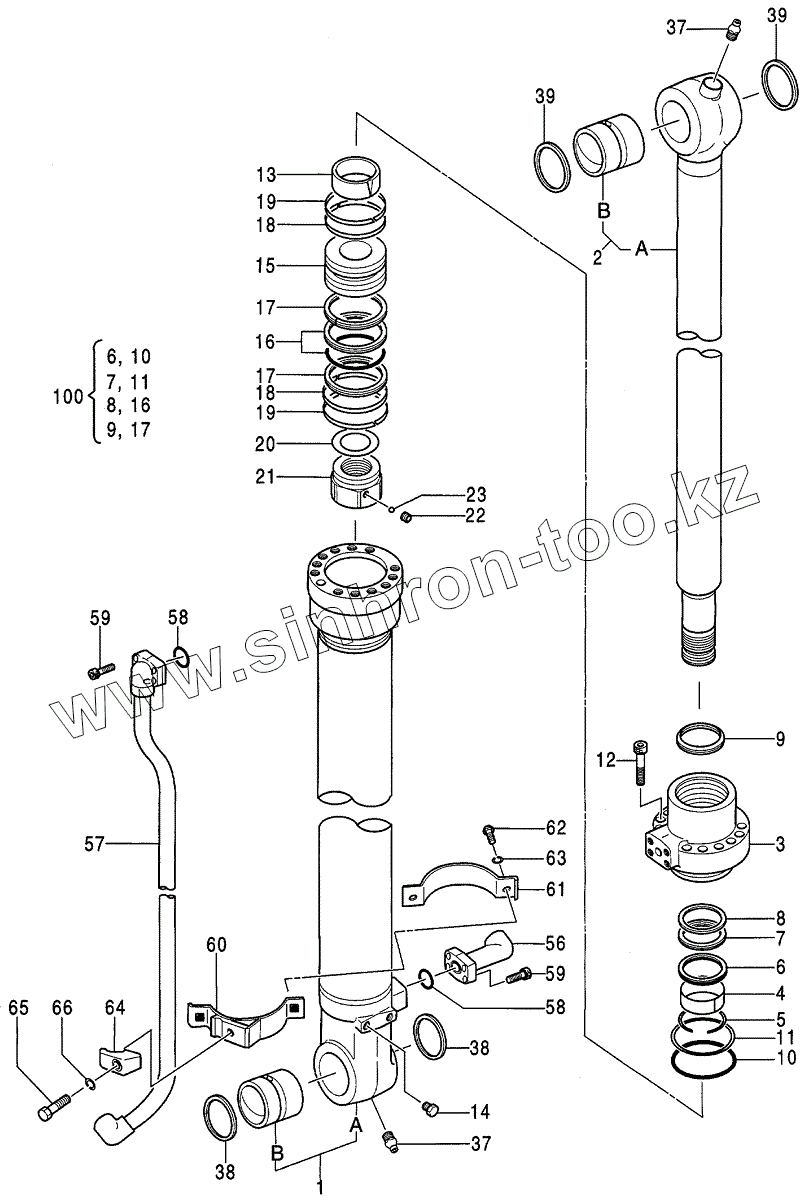

Каталог запасных частей к технике: Hitachi Компоненты EX-200-3(LC, H). CYL., BUCKET, 0410000A
4250225
1
1A
1B
2
2A
2B
3
4
5
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
13
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
37
37
38
38
39
56
57
58
58
59
59
60
61
62
63
64
65
66
100
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4250225 | 4250225 | CYL., BUCKET | |
| 1-39 | 4286781 | CYL. | |
| 1 | 4286782 | TUBE, CYL. ASSY | |
| 1A | 0410001 | TUBE, CYL. | |
| 1B | 0140808 | BUSHING | |
| 2 | 4286783 | ROD, PISTON ASSY | |
| 2A | 0410002 | ROD, PISTON | |
| 2B | 0208326 | BUSHING, PIN | |
| 3 | 0410003 | HEAD, CYL. | |
| 4 | 0310504 | BUSHING | |
| 5 | 0240904 | RING, RETAINING | |
| 6 | 0409605 | RING | |
| 7 | 0240911 | PACKING, U-RING | |
| 8 | 0240912 | RING, BACK-UP | |
| 9 | 0409613 | RING, WIPER | |
| 9 | 0409614 | RING, WIPER | |
| 10 | A811105 | O-RING | |
| 11 | 0298904 | RING, BACKUP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0410004 | BRG., CUSHION | |
| 14 | 0409110 | BOLT | |
| 15 | 0409007 | PISTON | |
| 16 | 0240915 | RING, SEAL ASS'Y | |
| 17 | 0409008 | RING, BACKUP | |
| 18 | 0410005 | RING | |
| 19 | 0298907 | RING, SLIDE | |
| 20 | 0409010 | SHIM | |
| 21 | 0409011 | NUT | |
| 22 | 0309011 | SCREW, SET | |
| 23 | 0111707 | BALL, STEEL | |
| 37 | J75481 | FITTING, GREASE | |
| 38 | 4084578 | SEAL, DUST | |
| 39 | 4067902 | SEAL, DUST | |
| 56 | 0309312 | JOINT | |
| 57 | 0410006 | PIPE | |
| 58 | 4506430 | O-RING | |
| 59 | 0158855 | BOLT, SOCKET | |
| 60 | 0409018 | BAND | |
| 61 | 0327410 | BAND | |
| 62 | 0408815 | BOLT | |
| 63 | 0325913 | WASHER | |
| 64 | 0309021 | HOLDER | |
| 65 | 0309022 | BOLT | |
| 66 | 0208516 | WASHER, SPRING | |
| 100 | 4321000 | KIT, SEAL | |
| 100 | 4369890 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
