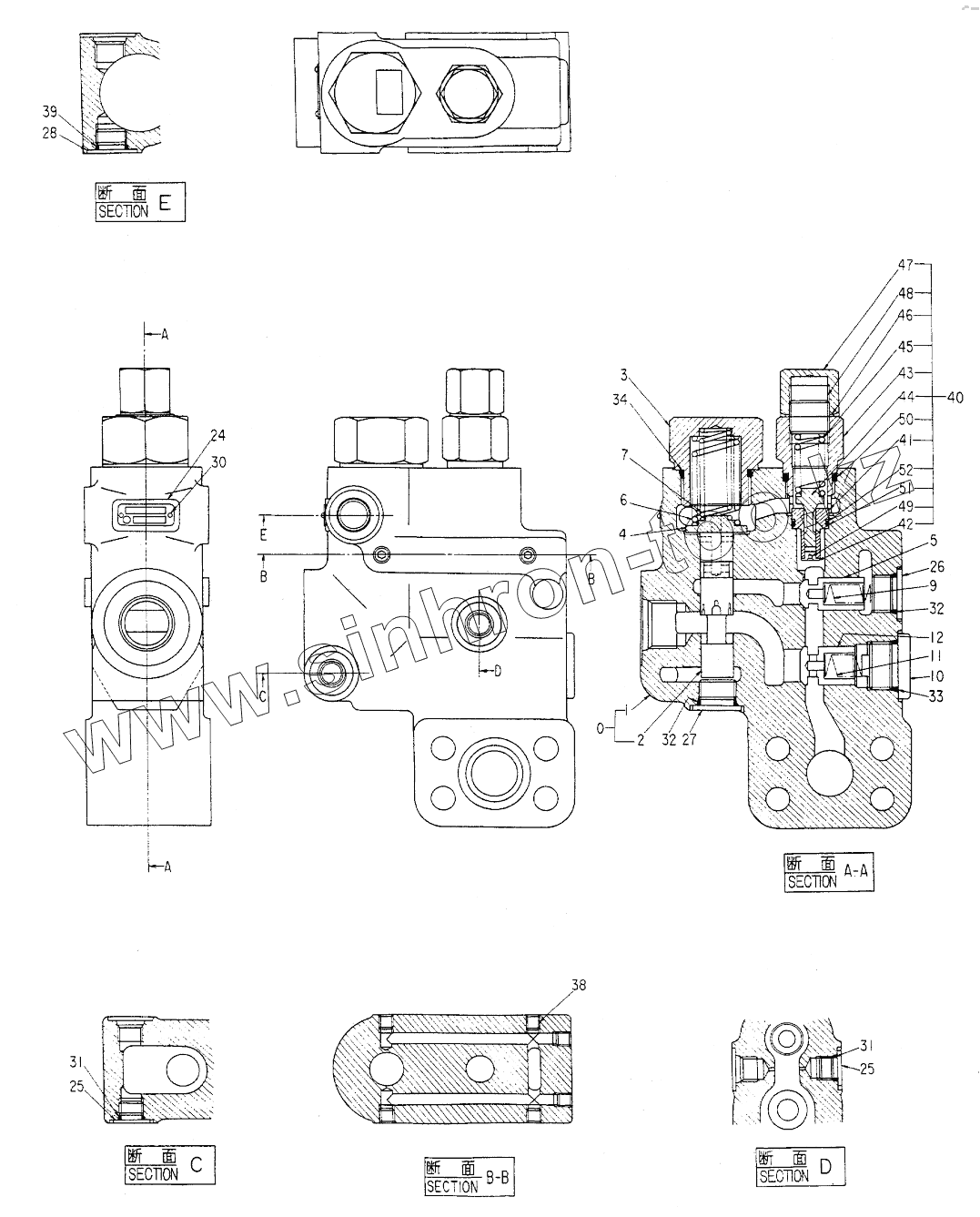

Каталог запасных частей к технике: Hitachi Компоненты EX-200. VALVE, HOSE RUPTURE
0343601
4201402
1
2
3
4
5
6
7
9
10
11
11
12
12
24
25
25
26
27
27
28
30
31
31
32
32
33
34
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0343601 | 0343601 | BODY, SUB ASSY | |
| 4201402 | 4201402 | VALVE, HOSE RUPTURE | |
| 1 | BODY | BODY | |
| 2 | SPOOL | SPOOL | |
| 3 | 0343602 | PLUS | |
| 4 | 0343603 | HOLDER, SPRING | |
| 5 | 0343604 | POPPET | |
| 6 | 0343605 | SPRING | |
| 7 | 0343606 | SPRING | |
| 9 | 0343607 | SPRING | |
| 10 | 0343608 | PLUG | |
| 11 | 0343609 | SPRING | |
| 11 | 0343614 | SPRING | |
| 12 | 0343610 | POPPET | |
| 12 | 0343615 | POPPET | |
| 24 | NAME-PLATE | NAME-PLATE | |
| 25 | 0314205 | PLUG | |
| 26 | 0343611 | PLUG | |
| 27 | 0343612 | PLUG | |
| 27 | 0343611 | PLUG | |
| 28 | 0309805 | PLUG | |
| 30 | 0208717 | SCREW, DRIVE | |
| 31 | 957366 | O-RING | |
| 32 | 4506418 | O-RING | |
| 33 | 4506424 | O-RING | |
| 34 | 4095210 | O-RING | |
| 38 | 0343514 | PLUG | |
| 39 | 4509180 | O-RING | |
| 40 | 0343613 | RELIEF, SUB ASSY | |
| 41 | SEAT | SEAT | |
| 42 | FILTER | FILTER | |
| 43 | SLEEVE | SLEEVE | |
| 44 | POPPET | POPPET | |
| 45 | SPRING | SPRING | |
| 46 | RING | RING | |
| 47 | NUT | NUT | |
| 48 | SСRЕW | SСRЕW, DRIVЕ | |
| 49 | PLUG | PLUG | |
| 50 | O-RING | O-RING | |
| 51 | O-RING | O-RING | |
| 52 | RING | RING |
